PRODUCT DETAILS
| Brand |
EVIL ENERGY |
| Application |
Fit for 12V DC EFI system only. |
| Hose Size |
6AN 20FT |
| Hose Material
|
PTFE or CPE |

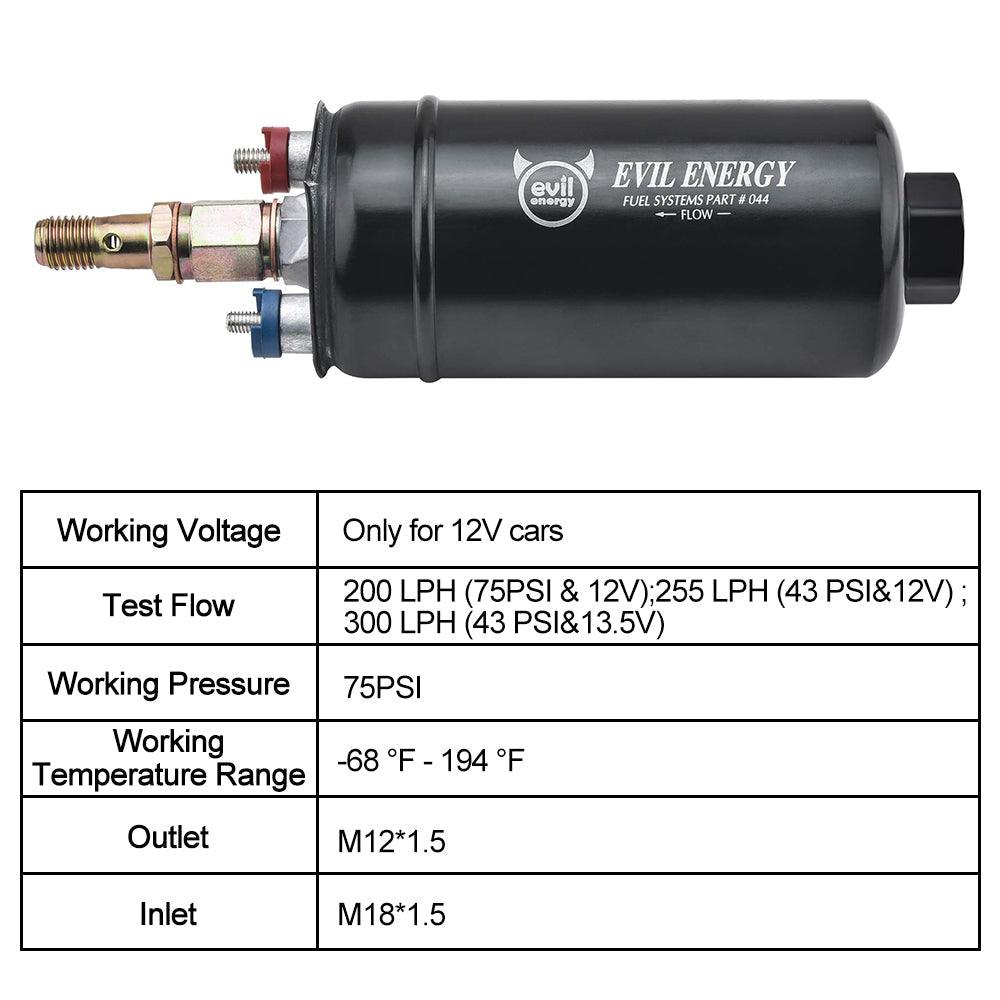

| Test Flow |
200 LPH (75PSI & 12V);
255 LPH (43 PSI&12V) ;
300 LPH (43 PSI&13.5V)
|
| Kit Includes: |
300 LPH External Fuel Pump*1
6AN 20FT Fuel hose*2
100Micron Pre-Filter*1
30Micron Post Filter*1
Mounting bracket*3
PTFE or CPE AN6 Swivel fitting 0° *7
PTFE or CPE AN6 Swivel fitting 45° *3
AN6 90 °bulkhead connector *1
(Carburetor & throttle body not included.)
|
In-Line Fuel Delivery Kit
Upgrade your vehicle’s fuel system with the EVIL ENERGY In-Line Fuel Delivery Kit. This complete kit features a 300 LPH electric fuel pump designed for EFI systems, along with durable PTFE/CPE fuel hoses, premium fuel filters, and all necessary fittings for a hassle-free installation. Perfect for LS swap fuel kits, performance builds, or any EFI upgrade, this kit ensures a powerful, clean, and consistent fuel flow.
Key Features
-
High-Flow Fuel Pump: Equipped with a 300 LPH fuel pump that supports engines up to 650 HP, delivering reliable performance for street and racing applications.
-
Versatile Compatibility: Works with gasoline, diesel, biodiesel, E85, methanol, oil, and transmission fluids. (Note: CPE hoses are not recommended for E85 and methanol.)
-
Premium Fuel Hose Options: Choose between PTFE fuel hose (high-temp and high-pressure resistant) or CPE fuel hose (flexible and easy to install).
-
Complete In-Line Fuel Delivery Kit: Includes 20FT 6AN hoses, 100-micron pre-filter, 30-micron post-filter, AN fittings, brackets, and connectors—everything you need in one box.
-

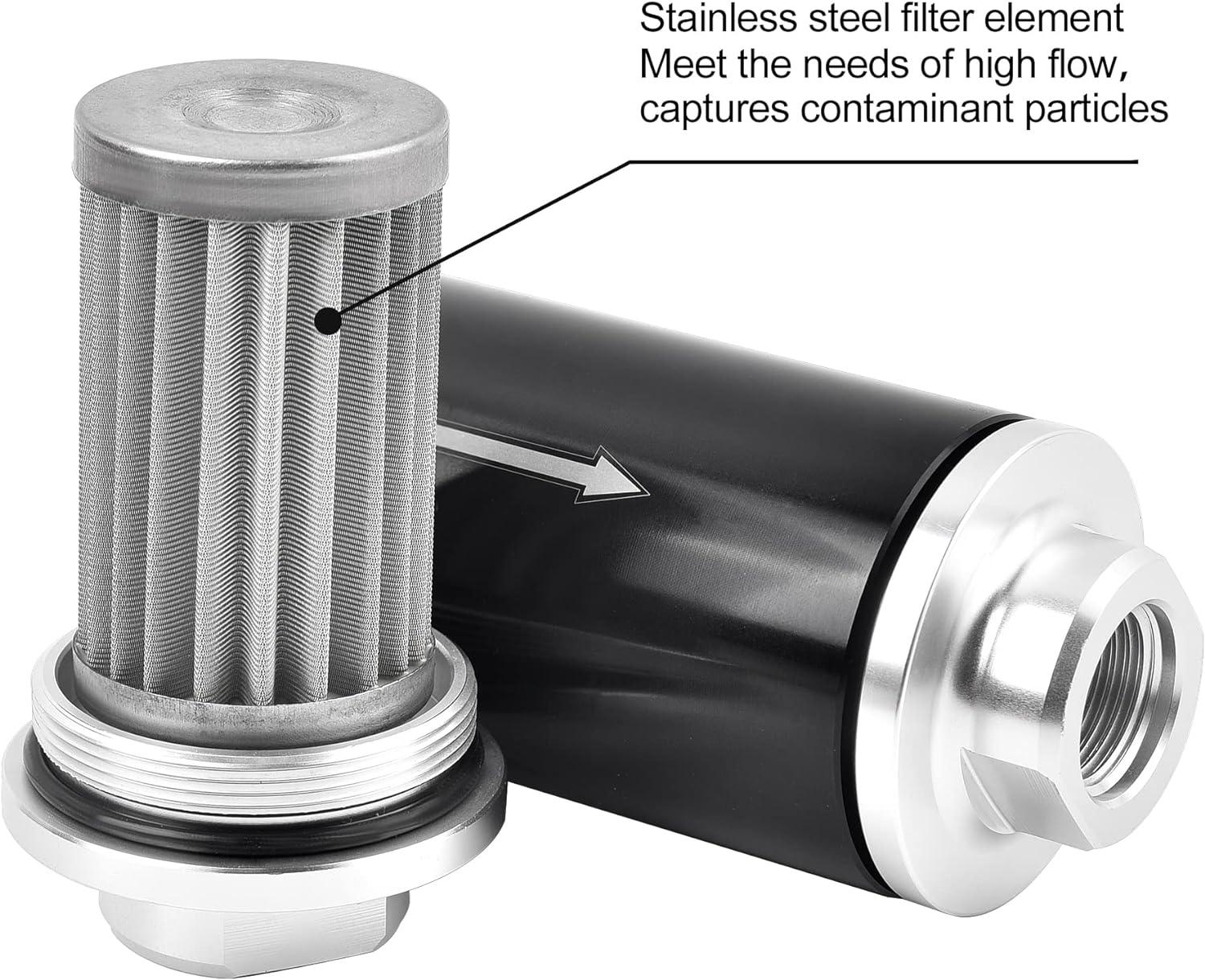

Advanced Filtration: Dual-layer protection with 100-micron pre-filter and 30-micron post-filter to keep fuel clean and extend engine life.
-
12V EFI System Ready: Engineered for 12V automotive fuel systems, ensuring seamless integration.

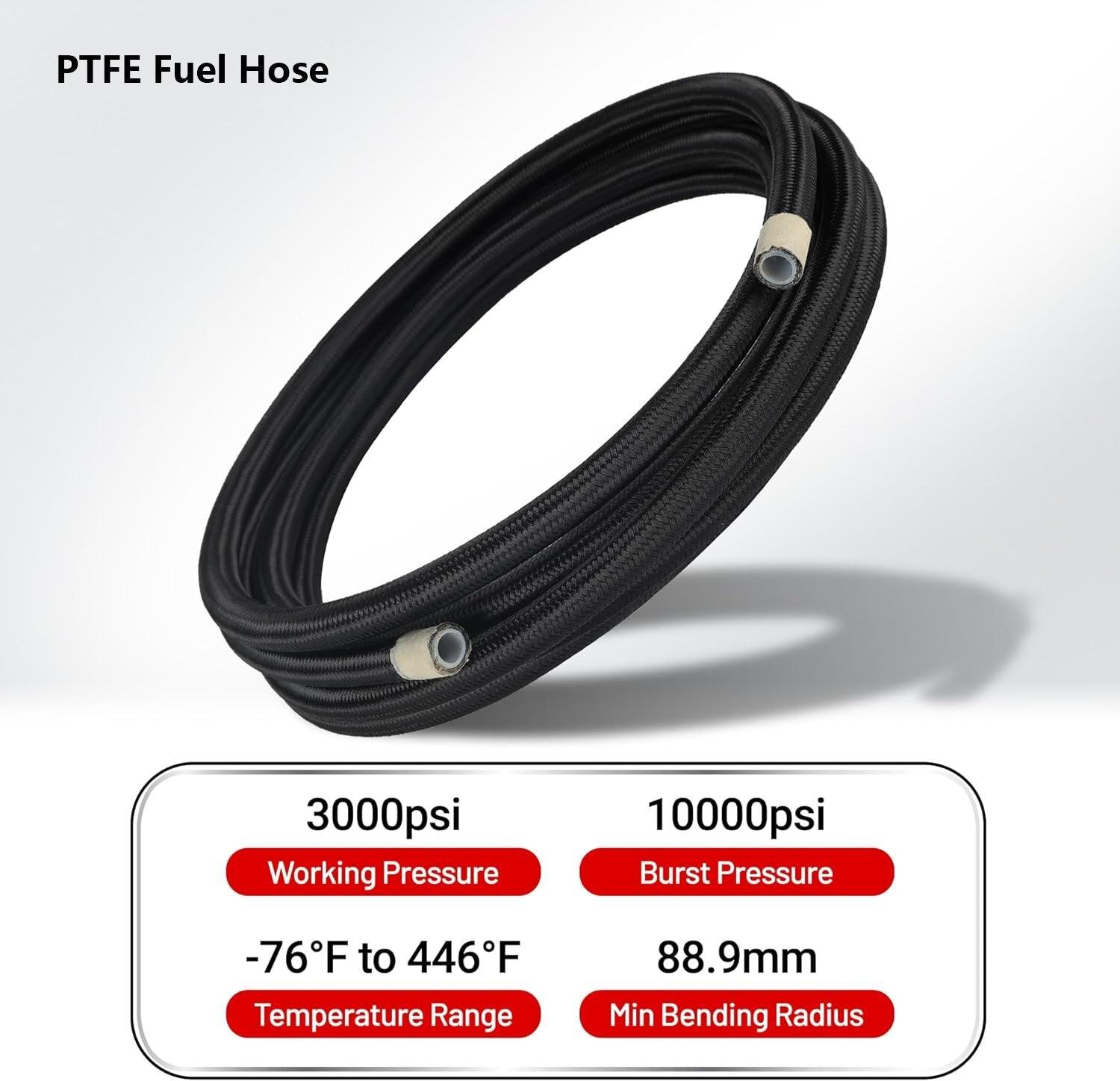

Difference between CPE & PTFE Fuel Hose
|
PTFE |
CPE |
| Temperature Range |
-76℉ to 446℉ |
-40℉ to 257℉. |
| Max Working Pressure |
1500 psi |
750psi |
| Bursting Pressure |
4500psi |
2250psi |
| Hose OD |
0.43inch |
0.56inch |
| Hose ID |
0.31inch |
0.31inch |
| Minimum Bend Radius |
3.5inch(88.9mm) |
2.5inch(63.5mm)
|
| Applicable Medium |
5/16 marine fuel line is suit for all automotive fuels, lubricants, and coolants. |
The braided fuel hose can be compatible with transmission fluid, oil, race gas, vacuum, hydraulic fluid, diesel and fuel. |
FEATURES
-
[One-stop Solution] EVIL ENERGY inline fuel delivery kits, each kit comes with everything you need to connect the fuel tank to the EFI throttle body.300LPH External Fuel Pump is suitable for engines with power up to 650.
-
[Full Medium] Compatible with diesel/biodiesel/oil/gasoline/E85 gasoline/oil/grease/methanol/water/air/transmission fluids and other media. (CPE is not recommended to be compatible with E85 gasoline& methanol.)
-

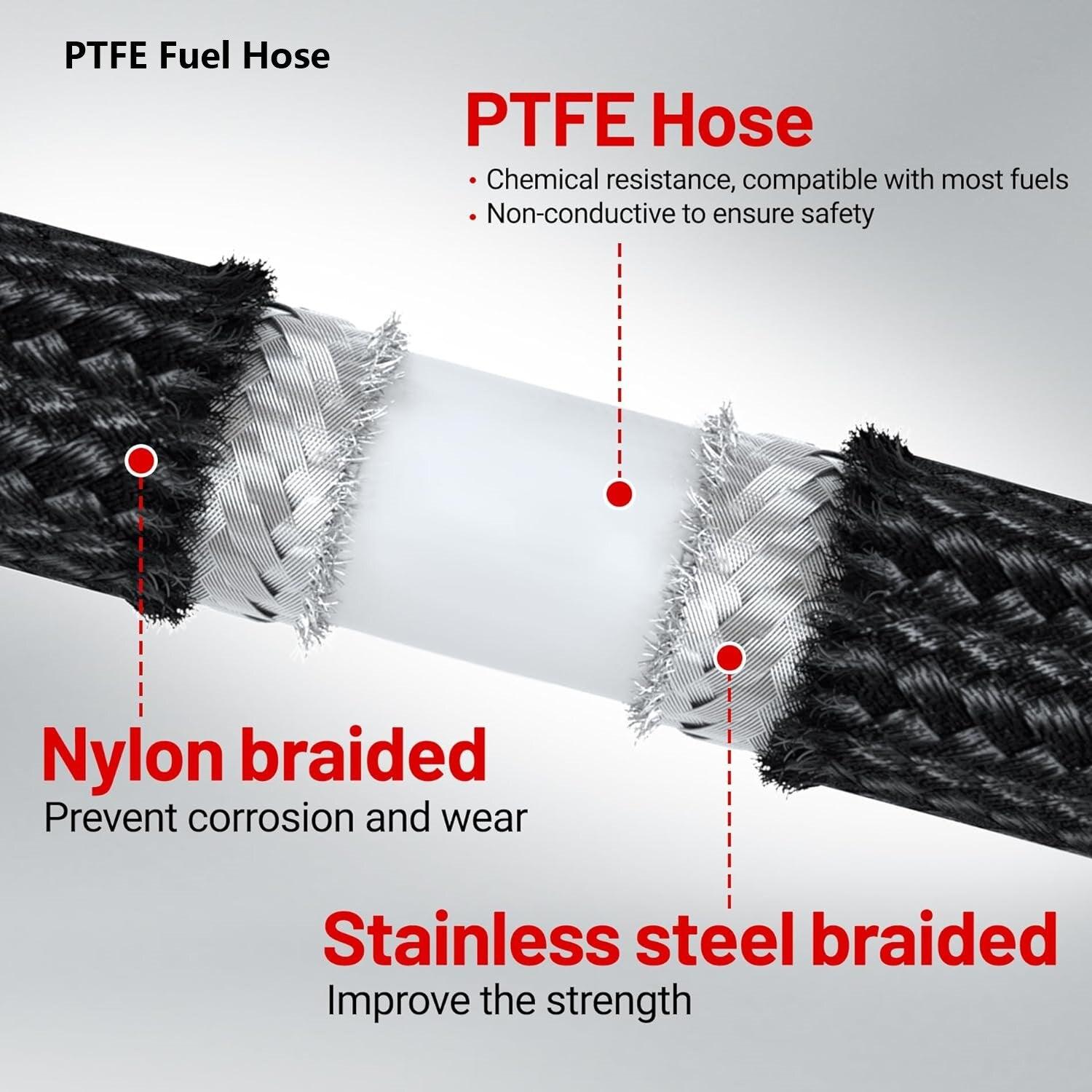

[Excellent Fuel Hose] EVIL ENERGY CPE&PTFE fuel hose consists of 3 layers of material. The core of the tube is wrapped with nylon braid and stainless steel mesh wire to further improve the performance of high temperature, high pressure and corrosion resistance.
-
[Warranty] EVIL ENERGY provides 6 months warranty for this kit. For any questions or additional information, feel free to contact us at support@ievilenergy.com.
Why Choose Evil Energy?
At Evil Energy, we are committed to providing reliable and efficient fuel system solutions for global car owners and enthusiasts.
Our products, including our fuel filters, fuel pressure regulator、braided fuel lines and fittings, are the result of extensive research and rigorous testing to meet the highest standards of quality and performance.
-
Fast Shipping: Orders are processed within 1-2 business days for quick delivery.
-
Easy Returns: Enjoy a hassle-free 90-day return policy with free return shipping (Requires no use or installation, packaging intact). 90-180 days will be charged a 15% operating fee.
-
Warranty: EVIL ENERGY provides 1-year warranty on this kit. For questions, reach out to us via email.
For additional information, please contact us at service@ievilenergy.com.
FAQs
Q1: What vehicles is this EVIL ENERGY In-Line Fuel Delivery Kit compatible with?
A1: This kit is designed for 12V EFI (Electronic Fuel Injection) systems and is suitable for a wide range of performance builds, including LS swap fuel kits and other EFI conversions. It is not intended for carbureted systems without additional modifications.
Q2: Is installation difficult?
A2: No, this kit is designed for a plug-and-play installation. It comes with all necessary hoses, fittings, and mounting hardware. Basic mechanical knowledge is recommended, or professional installation can be considered for optimal results.
Q3: What’s the difference between PTFE and CPE fuel hoses?
A3:
-
PTFE Fuel Hose: Higher temperature resistance (-76℉ to 446℉), up to 1500 psi working pressure, ideal for extreme performance and E85 compatibility.
-
CPE Fuel Hose: More flexible and easier to route, with a working pressure of 750 psi, but not recommended for E85 or methanol.
Q4: Can this kit be used with E85 fuel?
A4: Yes, but only when using PTFE hoses. The CPE hoses are not recommended for E85 or methanol due to potential compatibility issues.
Q5: What is included in the kit?
A5: The kit comes complete with a 300 LPH external fuel pump, 6AN 20FT fuel hoses (×2), 100-micron pre-filter, 30-micron post-filter, AN6 swivel fittings, mounting brackets, and a bulkhead connector. No additional fittings are required.
Q6: Is this an inline or in-tank fuel pump?
A6: This is an external inline fuel pump, designed to be mounted outside of the fuel tank for easy installation and maintenance.
Q7: How do I know if I need PTFE or CPE hoses?
A7: Choose PTFE hoses if you plan to run E85, methanol, or high-pressure/high-temp builds. Choose CPE hoses for general gasoline/diesel applications that require more flexibility during installation.
Q8: What kind of filtration does the kit provide?
A8: The kit includes a 100-micron pre-filter (to catch larger debris before fuel enters the pump) and a 30-micron post-filter (to protect injectors and throttle bodies from fine particles).
![[Antistatic PTFE] EVIL ENERGY Fuel Injection In-Line Fuel Delivery Kit - Complete Set with Free Shipping + 180-Day Return](http://www.ievilenergy.com/cdn/shop/files/1-KT11423BB-AMZ1_499ced5e-15c0-439c-a929-e540ff7ad4b9.jpg?v=1755496834)
![[PTFE] EVIL ENERGY Fuel Injection In-Line Fuel Delivery Kit - Components & Packaging](http://www.ievilenergy.com/cdn/shop/files/1-KT11423BB-AMZ1.jpg?v=1755496834)
![[Antistatic PTFE] EVIL ENERGY Fuel Injection In-Line Fuel Delivery Kit - Antistatic Coating Safety Enhancement](http://www.ievilenergy.com/cdn/shop/files/EVIL-ENERGY-Conductive-6AN-PTFE-Fuel-Line-Kit_Antistatic-E85-Nylon-Braided-PTFE-Fuel-Hose-20FT-AN6-Fuel-Line-Hose-kit-5-16inch-ID-EVILENERGY-144537239_7704b3f6-f7b7-41af-8293-c70b8be01ebd.webp?v=1755497036)
![[Antistatic PTFE] EVIL ENERGY Fuel Injection In-Line Fuel Delivery Kit - 3-Layer Antistatic Construction Details](http://www.ievilenergy.com/cdn/shop/files/EVIL-ENERGY-Conductive-6AN-PTFE-Fuel-Line-Kit_Antistatic-E85-Nylon-Braided-PTFE-Fuel-Hose-20FT-AN6-Fuel-Line-Hose-kit-5-16inch-ID-EVILENERGY-144536969_ed63ff0a-350a-42e3-b9d0-424b0875dd38.webp?v=1755497036)

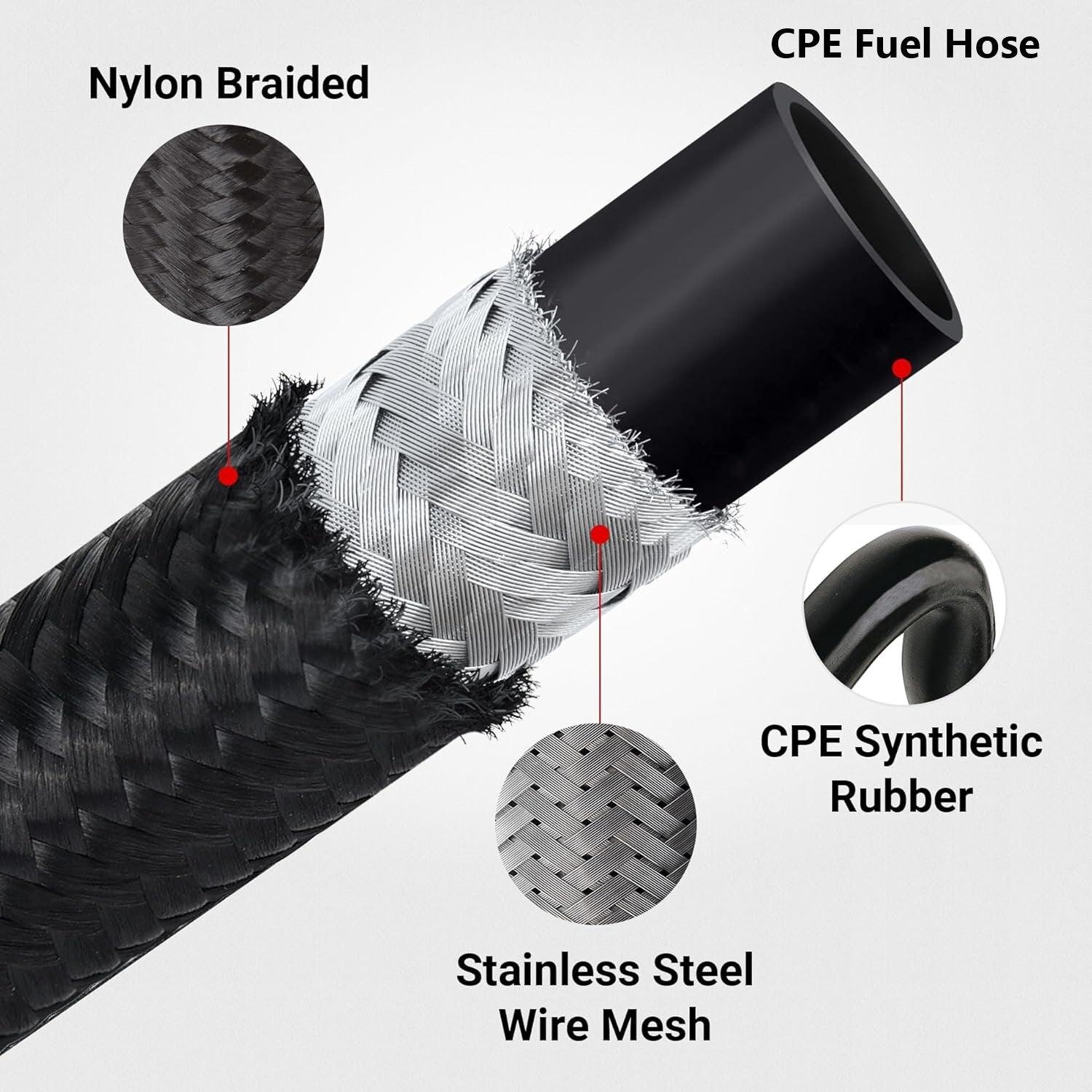

![[PTFE] EVIL ENERGY Fuel Injection In-Line Fuel Delivery Kit - CPE Fuel Hose Layer Structure](http://www.ievilenergy.com/cdn/shop/files/007_abfd394f-0dd3-4242-b22a-4b8241f6e455.jpg?v=1755497036)
![[Antistatic PTFE] EVIL ENERGY Fuel Injection In-Line Fuel Delivery Kit - 40FT Antistatic PTFE Complete Fuel System Kit](http://www.ievilenergy.com/cdn/shop/files/2_x_20FT_PTFE_Fuel_Line.png?v=1755497036)
![[PTFE] EVIL ENERGY Fuel Injection In-Line Fuel Delivery Kit - 40FT PTFE Fuel System Solutions Components](http://www.ievilenergy.com/cdn/shop/files/3_159ab74b-a4db-43f8-802b-2cac55d64c05.jpg?v=1755497036)
![[Antistatic PTFE] EVIL ENERGY Fuel Injection In-Line Fuel Delivery Kit - 40FT PTFE Complete Fuel System Kit Details](http://www.ievilenergy.com/cdn/shop/files/3_41177ebf-862c-441c-8086-5c3b5be7bf90.jpg?v=1755497036)
![[PTFE] EVIL ENERGY Fuel Injection In-Line Fuel Delivery Kit - Complete Set with Packaging](http://www.ievilenergy.com/cdn/shop/files/6a0f48436f03bf48e8c7f28f9f150b4c_fbe044fc-f6cb-4e48-8a18-d3b065fd2b4a.png?v=1755497036)

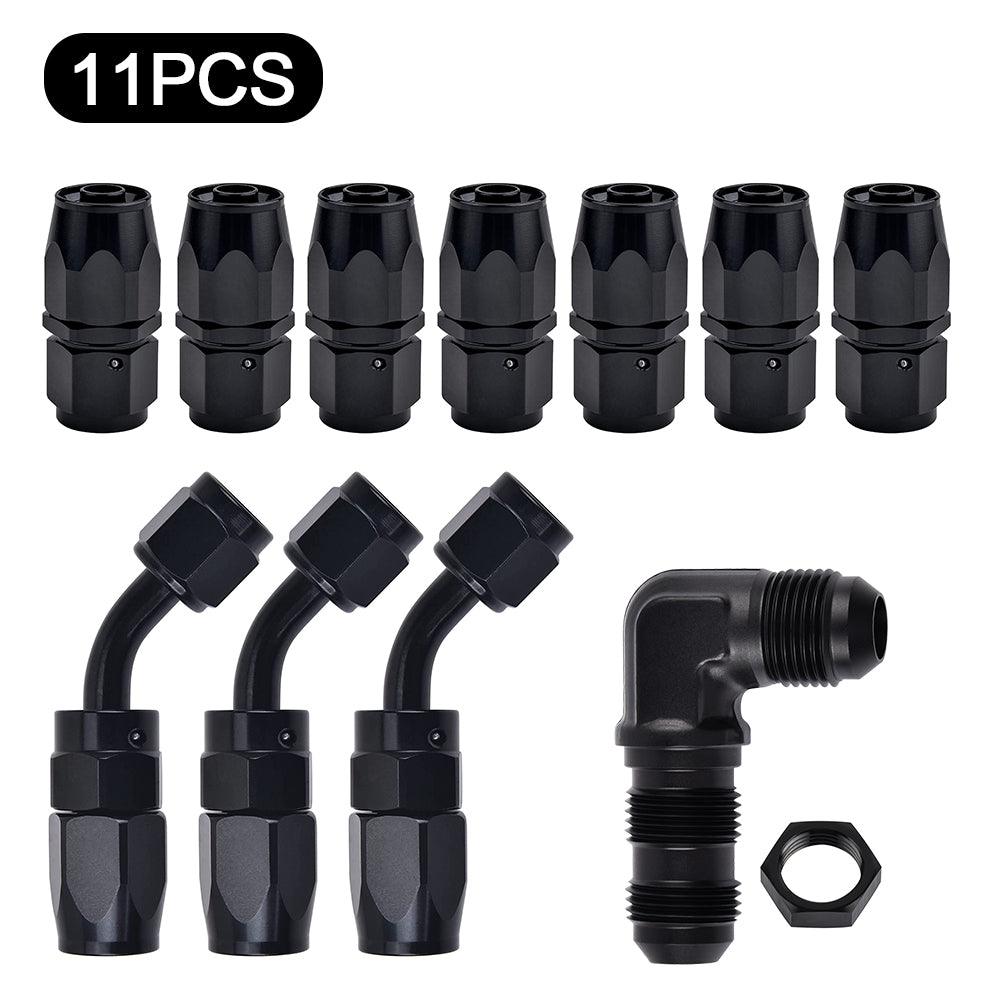

![[CPE] EVIL ENERGY Fuel Injection In-Line Fuel Delivery Kit - 11PCS Fitting Accessories](http://www.ievilenergy.com/cdn/shop/files/CPE-Fuel-line-External-255LPH-Fuel-Pump-EVILENERGY-90083814.jpg?v=1755497036)

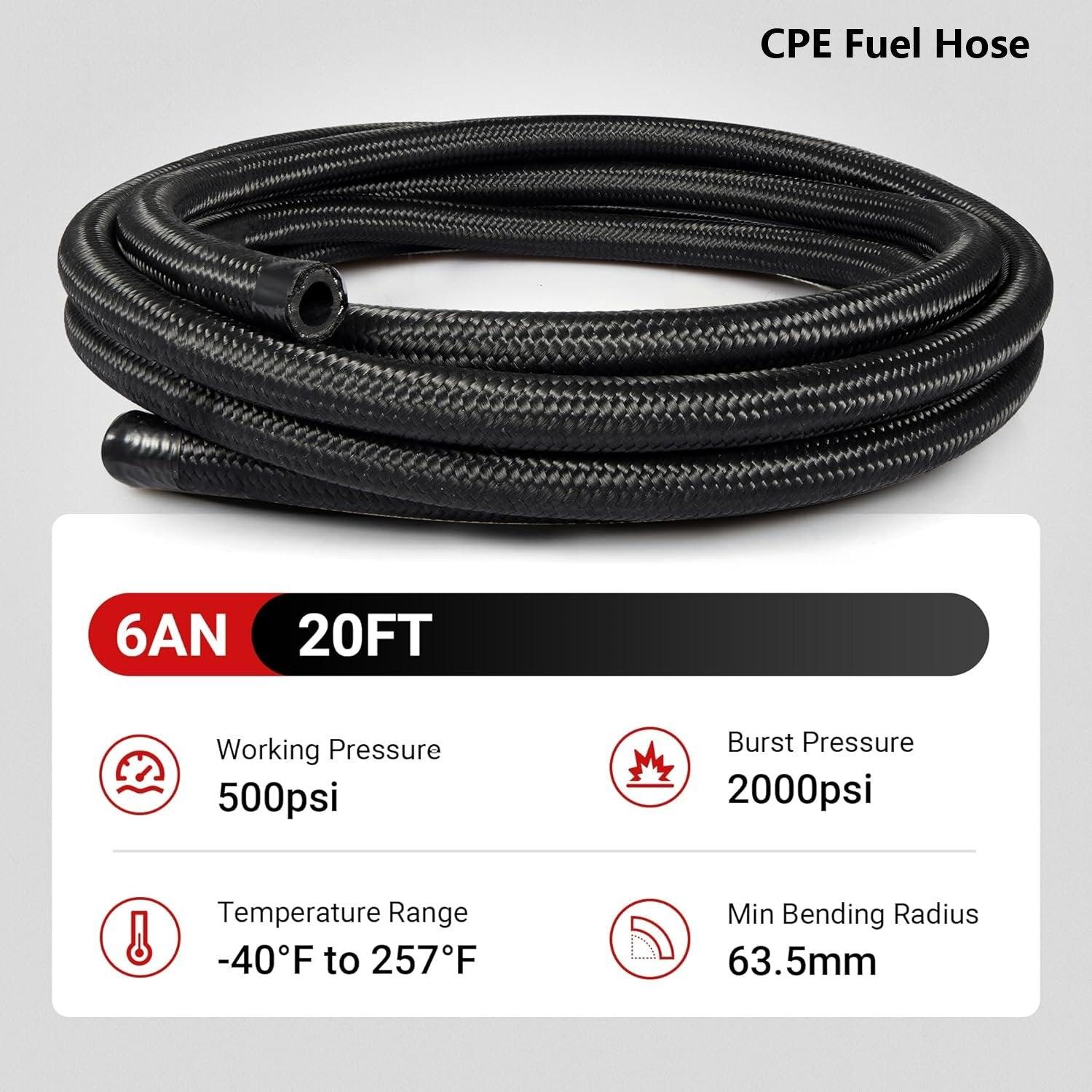

![[CPE] EVIL ENERGY Fuel Injection In-Line Fuel Delivery Kit - 6AN 20FT CPE Fuel Hose Parameters](http://www.ievilenergy.com/cdn/shop/files/008_8da45f97-6090-40a2-9184-f94e0a90be27.jpg?v=1755497036)
