About this item

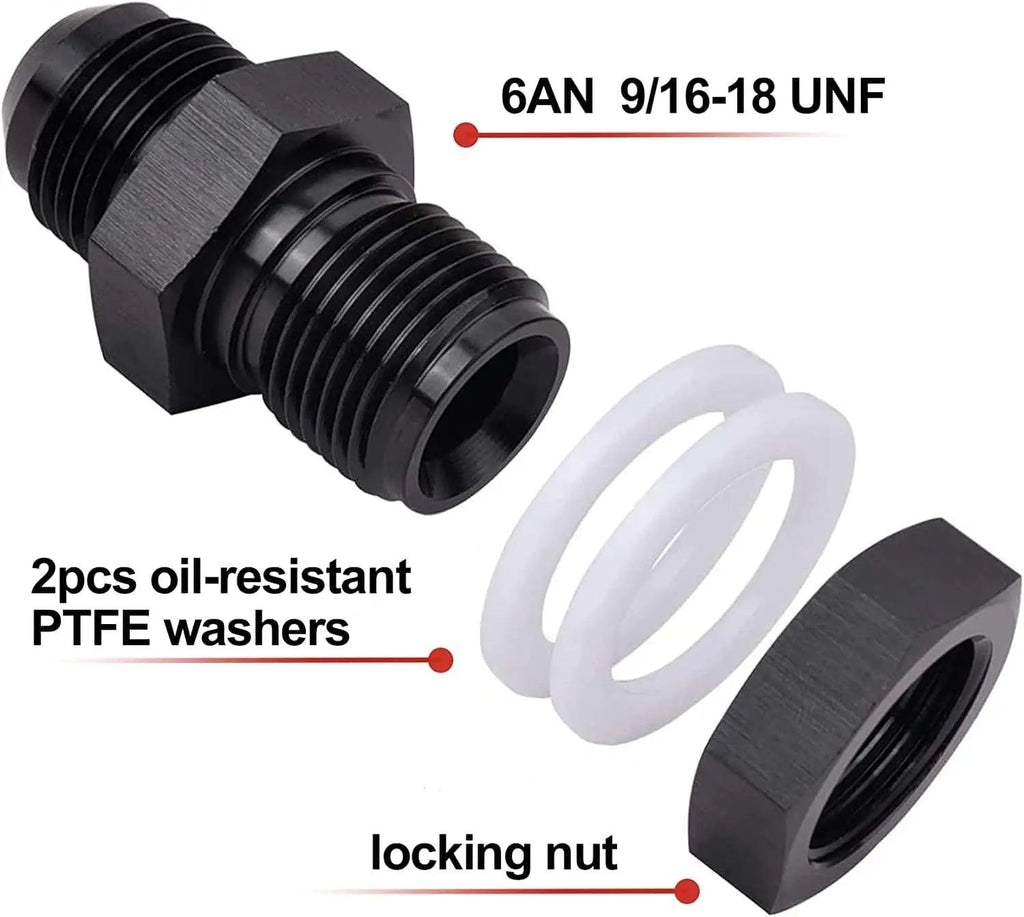

• [Size] The thread size of 6an is 9/16-18 UNF.
  The thread size of 8an is 3/4-16 UNF.
  The thread size of 10an is 7/8-14 UNF.

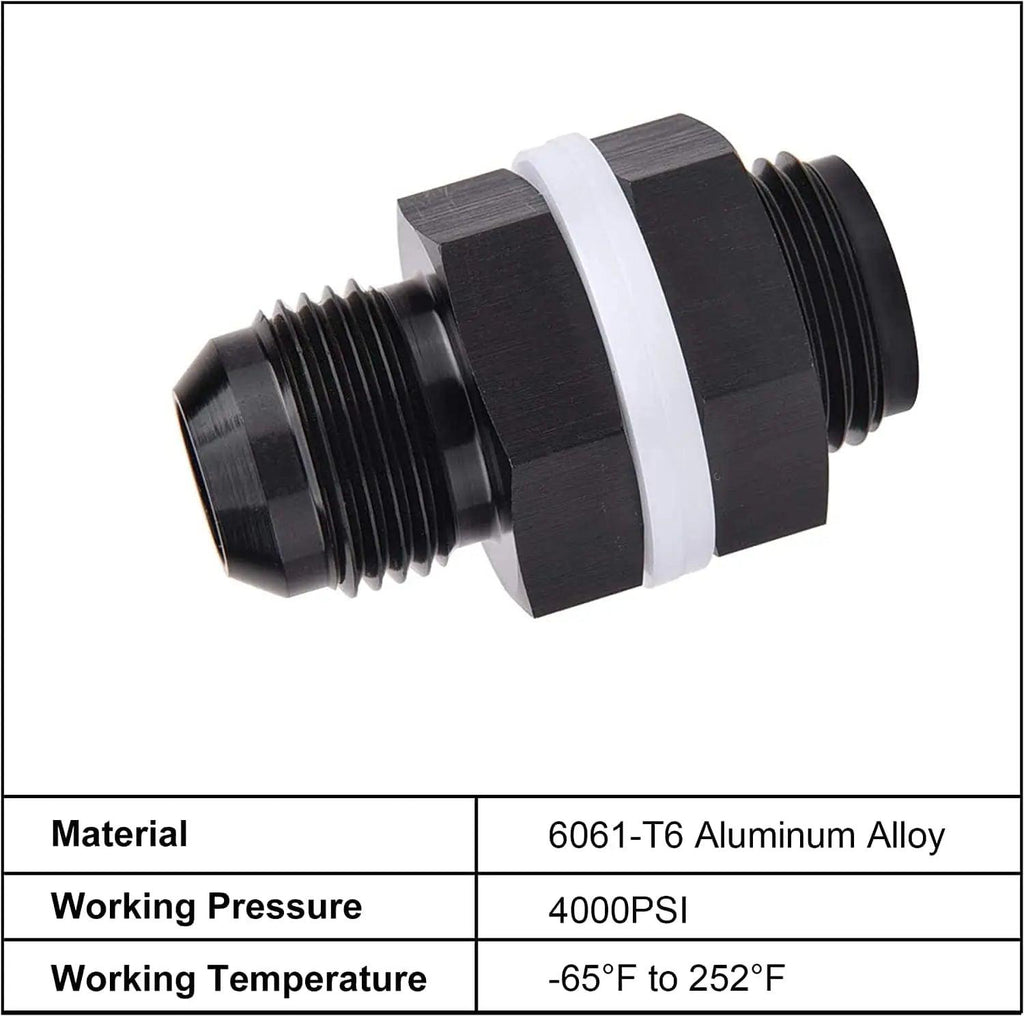

• [Parameter] Max Working Pressure: 4000PSI. Working Temperature Range: -65 ℉ to 252 ℉.
• [Material] Aluminum alloy 6061-T6, anodized black surface.
• [Seal] The AN flare is sealed by a 37 degree angle.

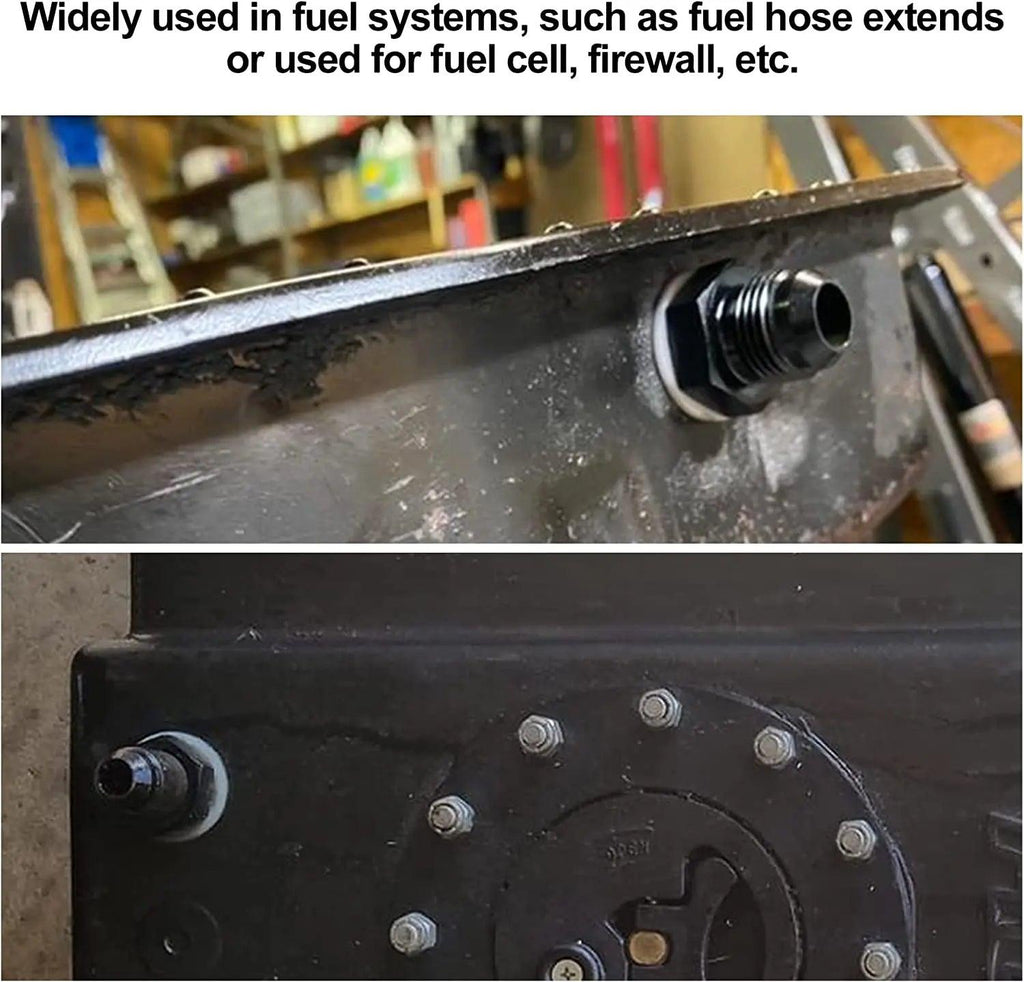

• [Application] Widely used in fuel systems, such as fuel hose extends, return line, fuel cell, firewall, etc.

Product Description
