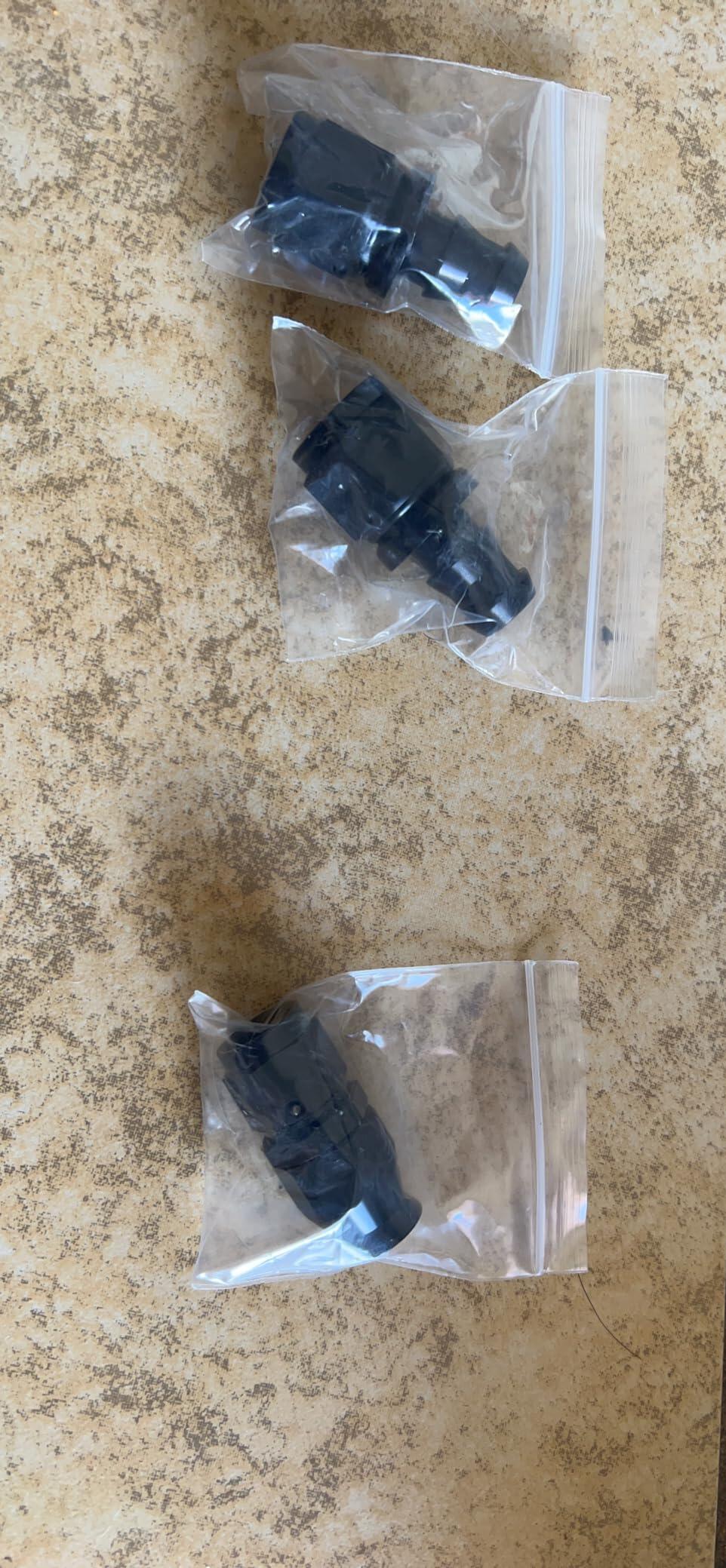

Name: EVIL ENERGY PTFE Hose End Fitting for PTFE Hose Only (3/4/6/8/10/12AN) - Black
Brand: Evilenergy
SKU: EVKT01718D45BB-1-AMZ1
Price: 9.78 USD
Availability: InStock

Description

Product details

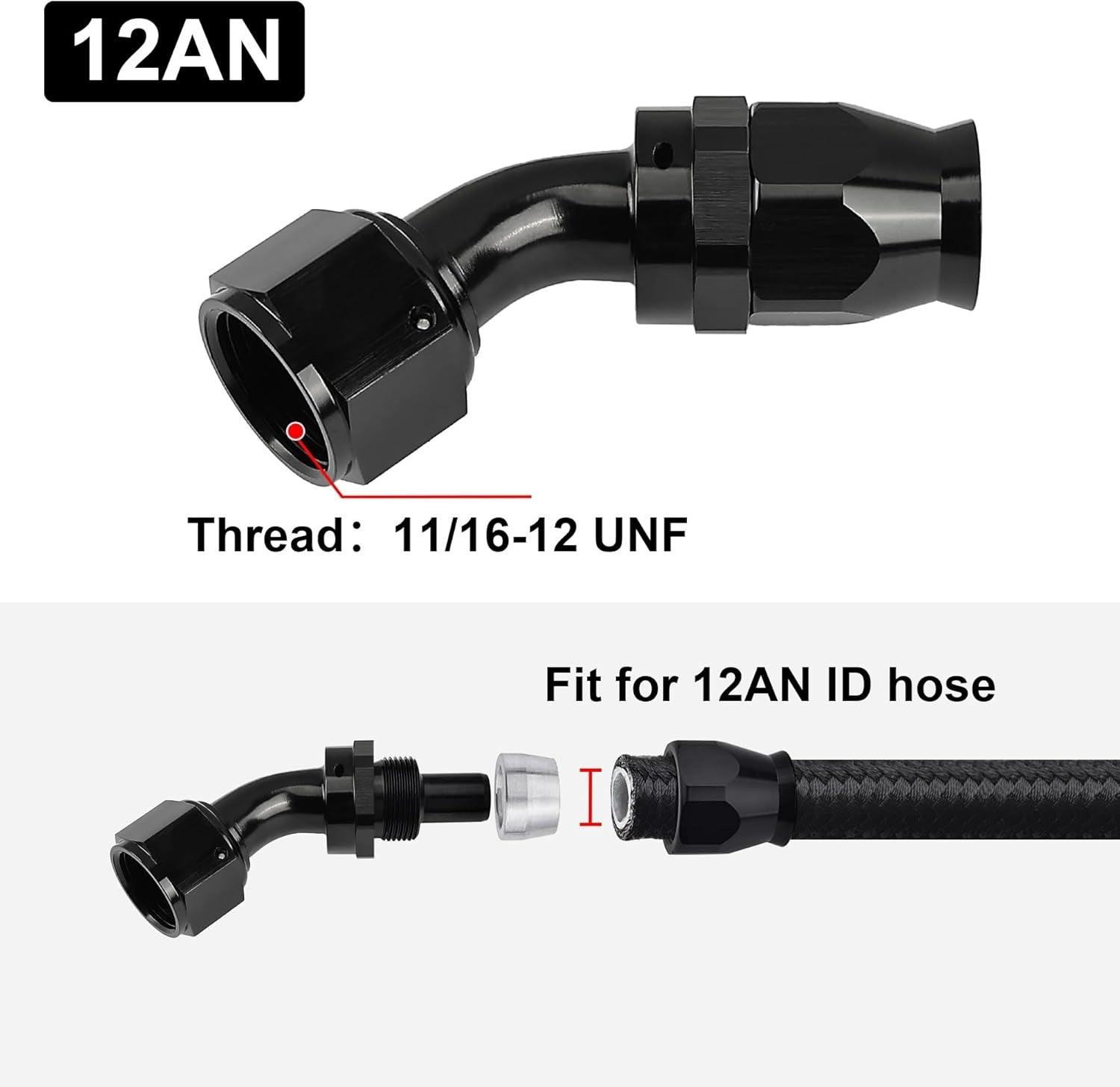

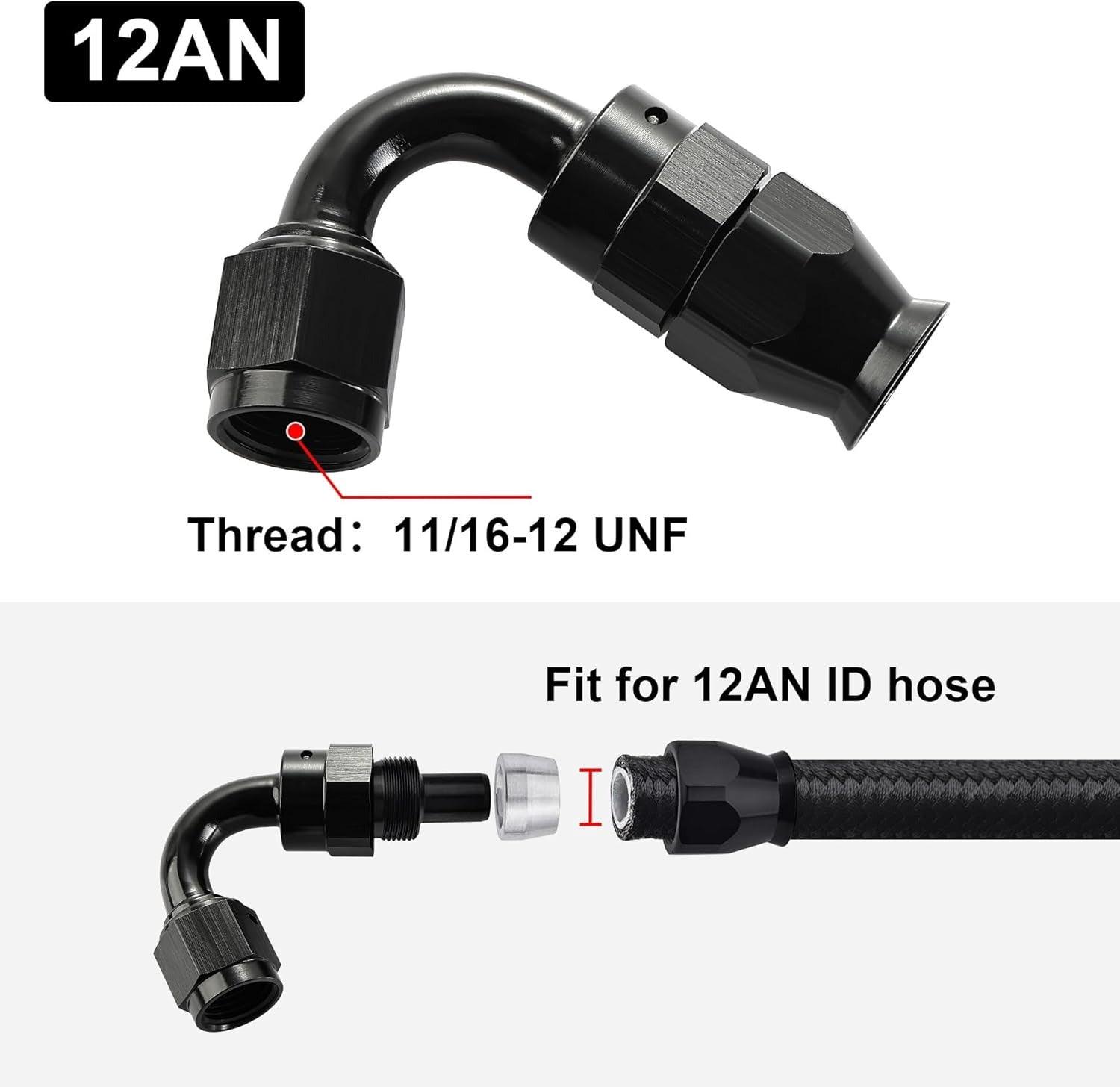

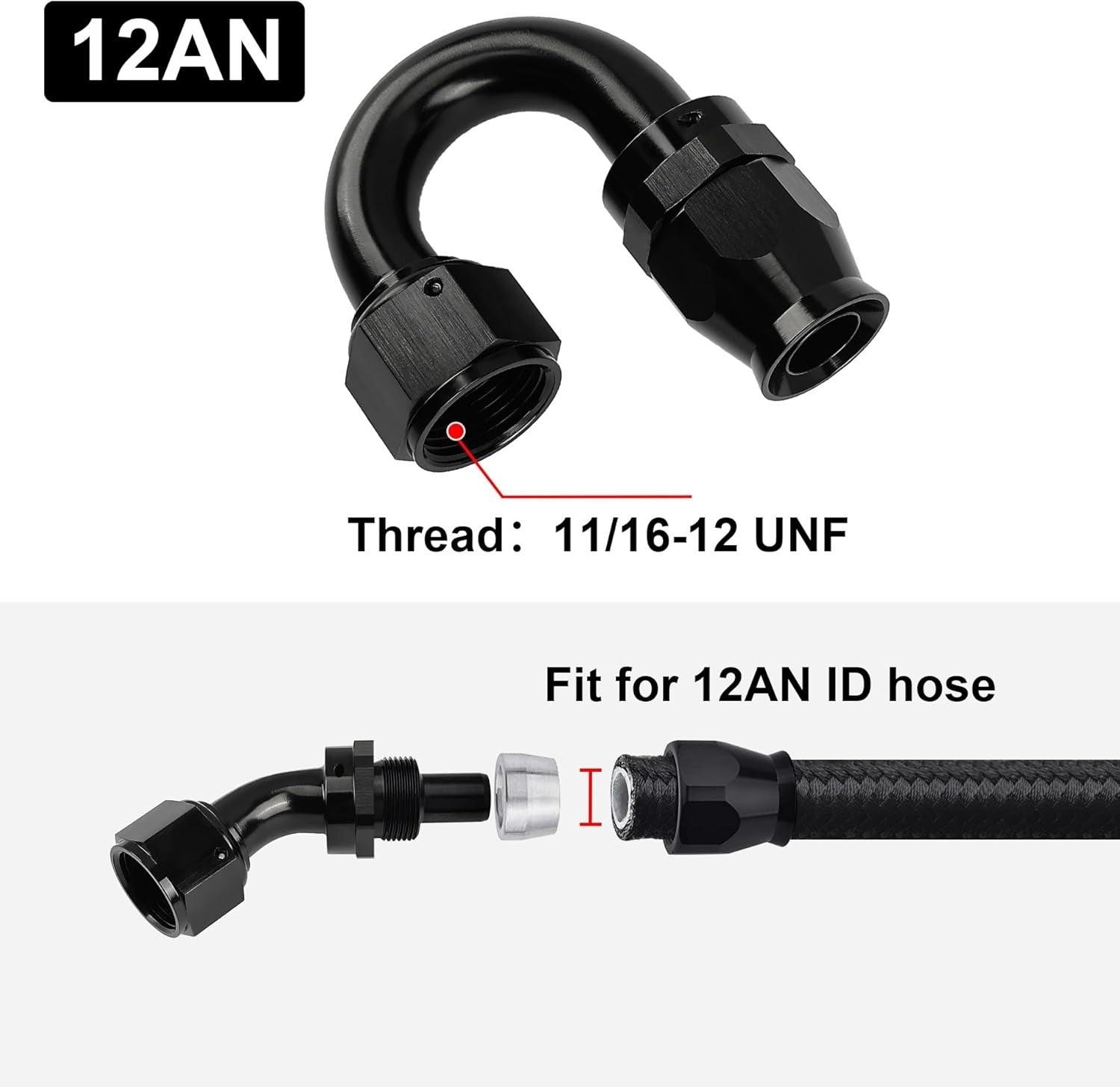

Size	3/4/6/8/10/12 AN

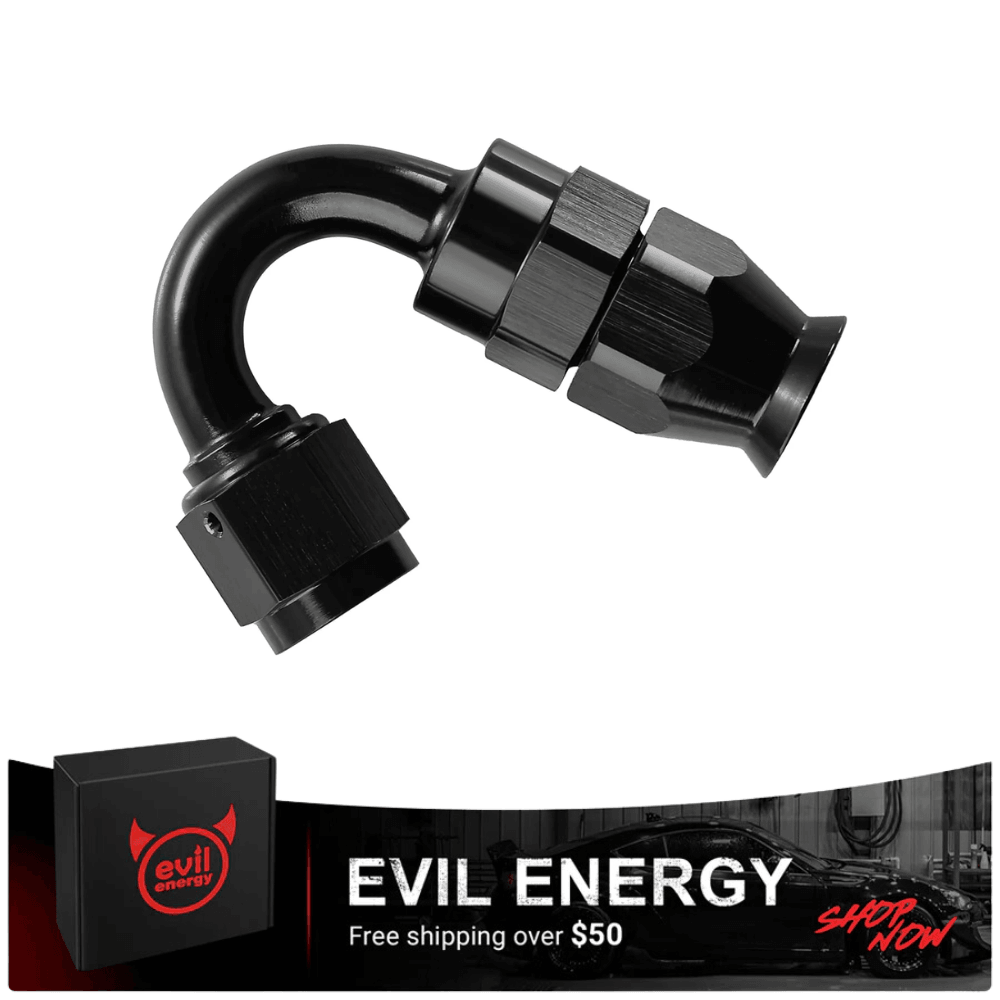

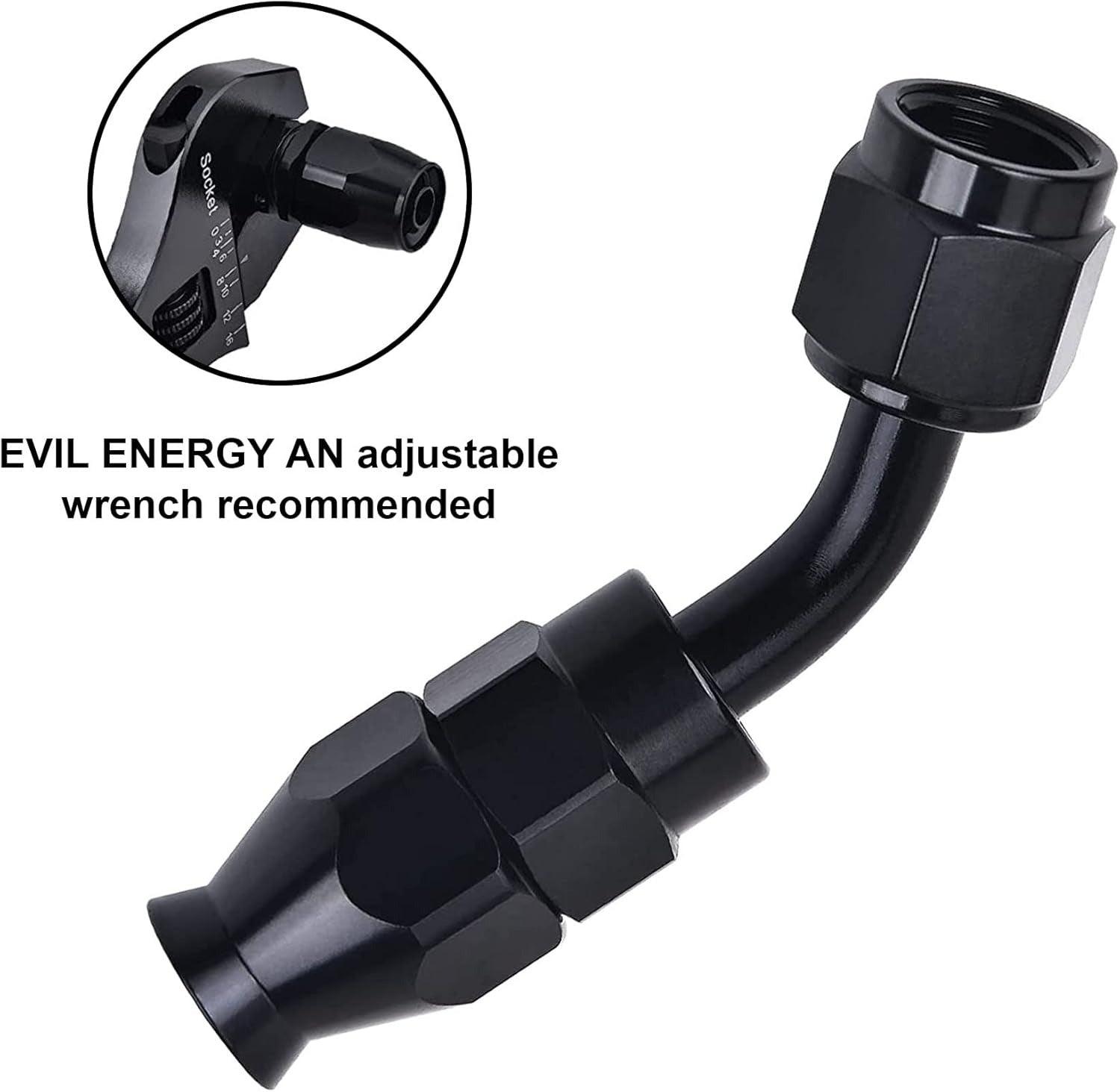

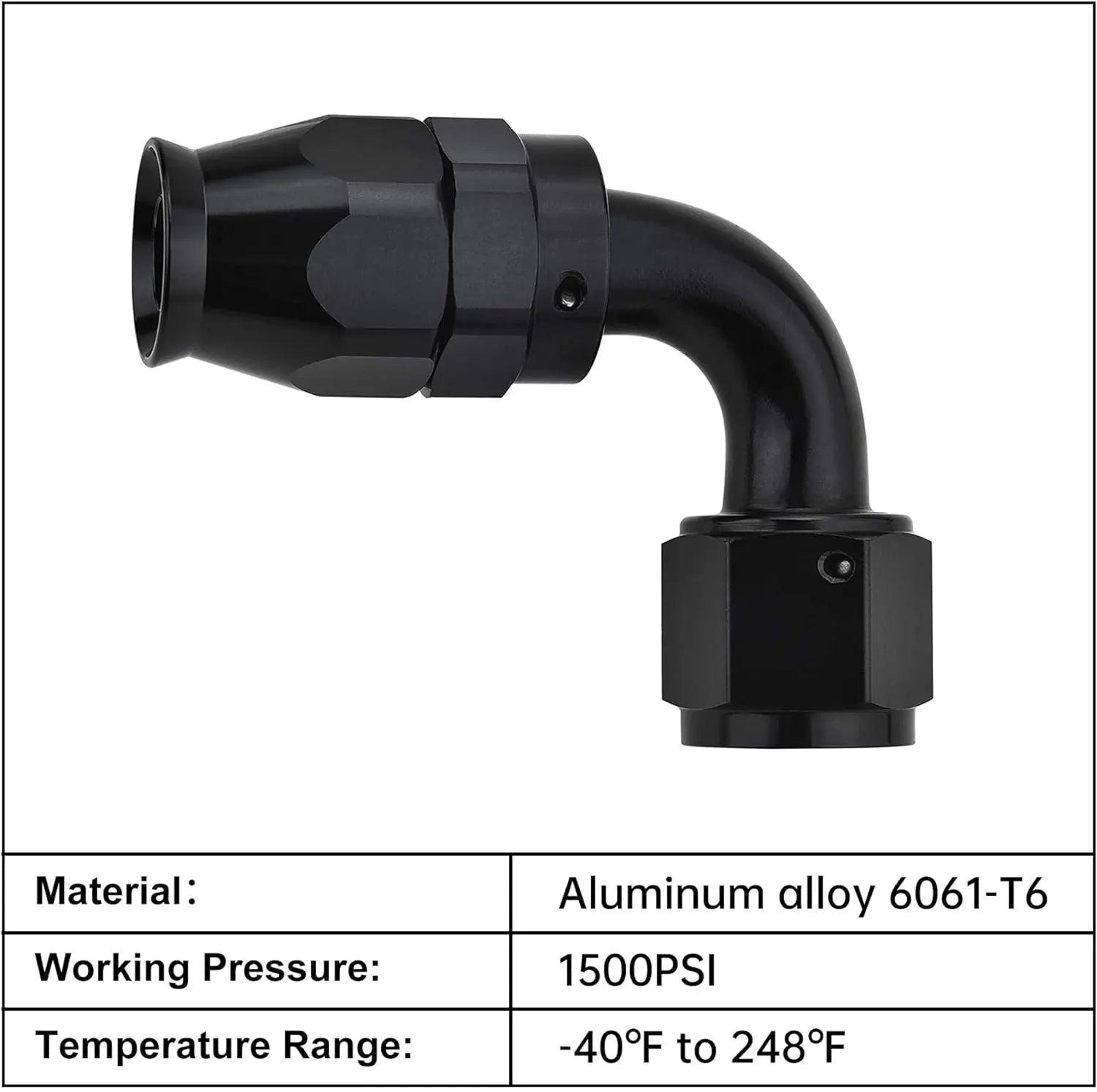

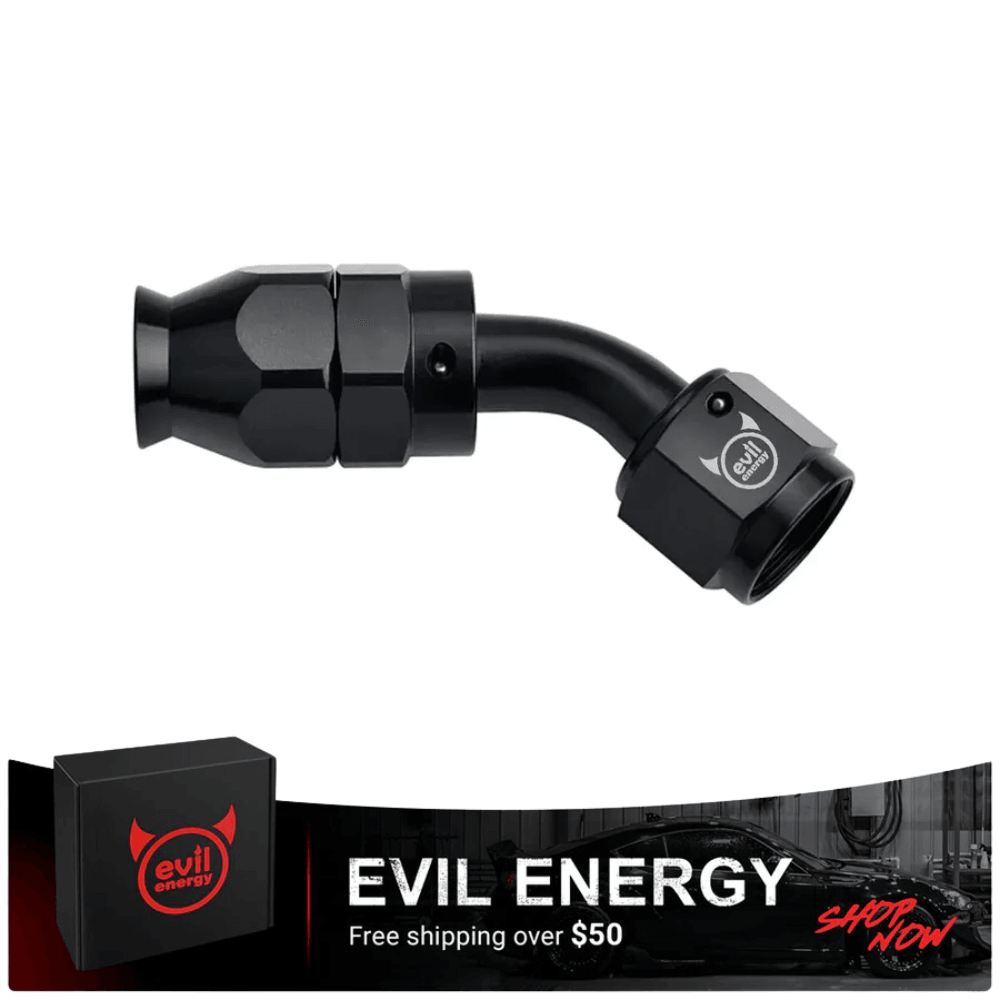

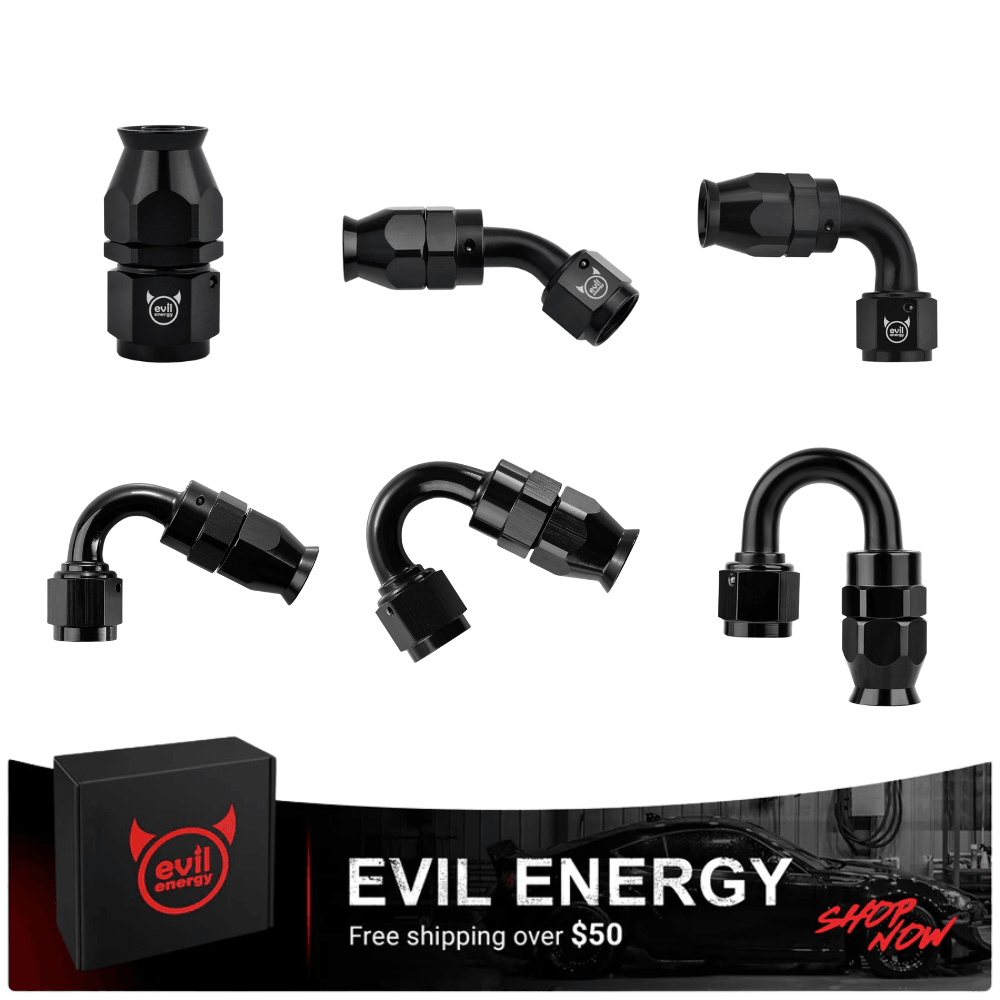

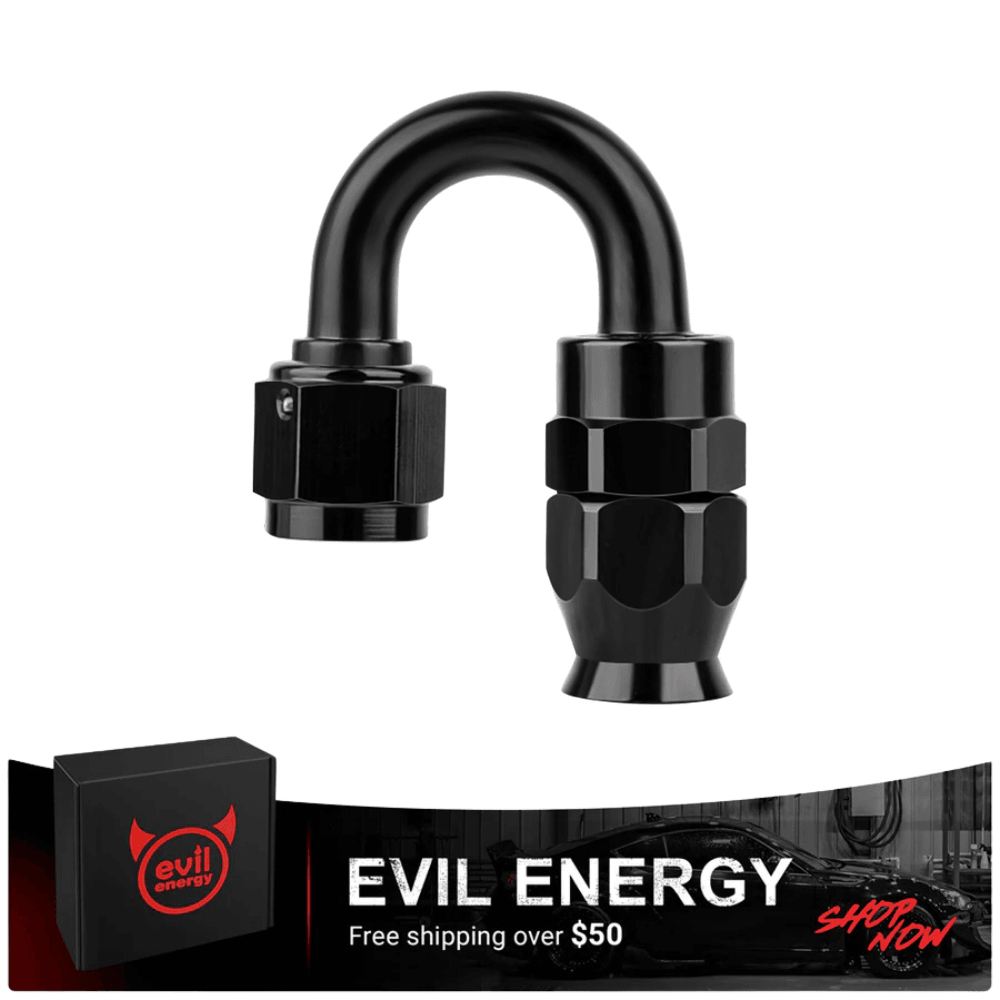

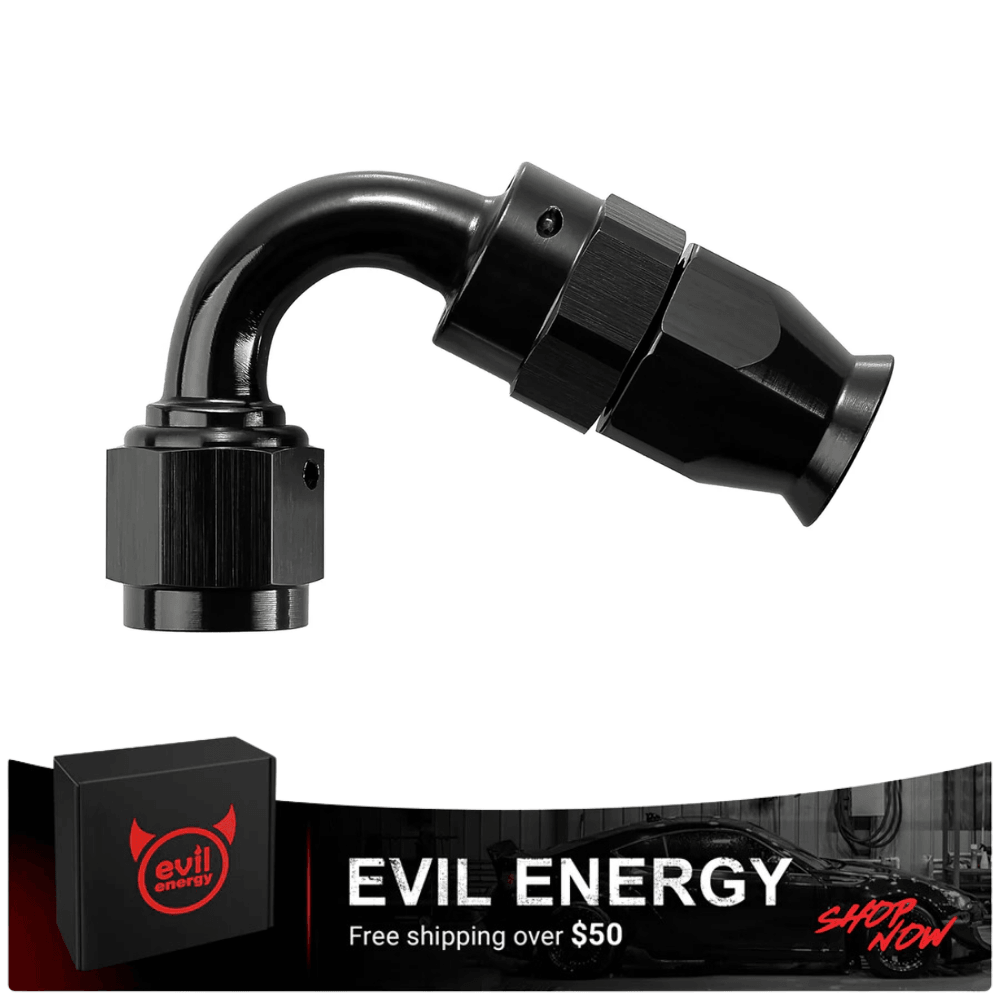

Angle	Straight 45 Degree 90 Degree 120 Degree 150 Degree 180 Degree
Material	Aluminum
Brand	EVIL ENERGY
Color	Black
Connector Type	Nipple
Exterior	Aluminum
Thread Type	UNF

About this item

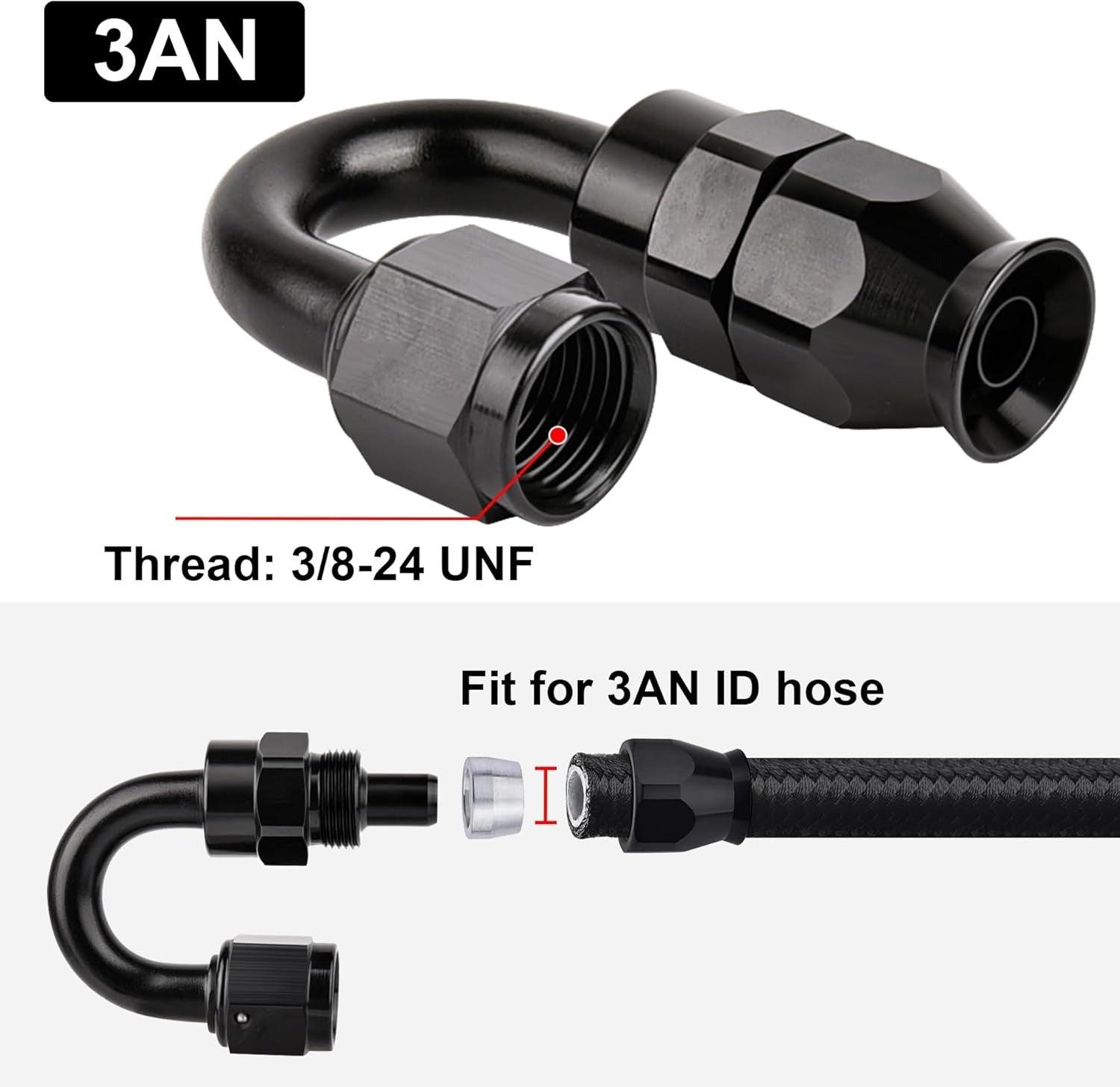

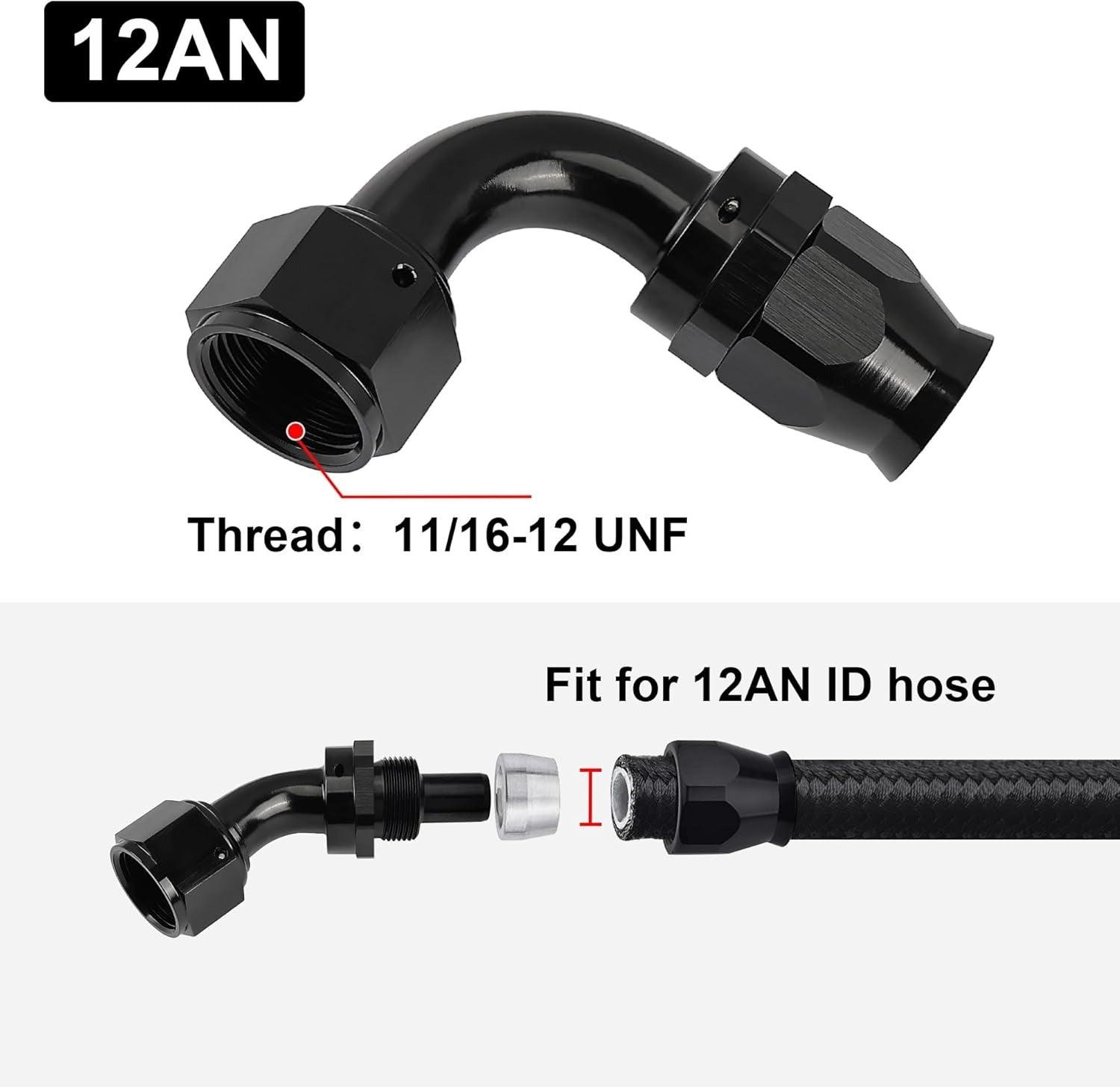

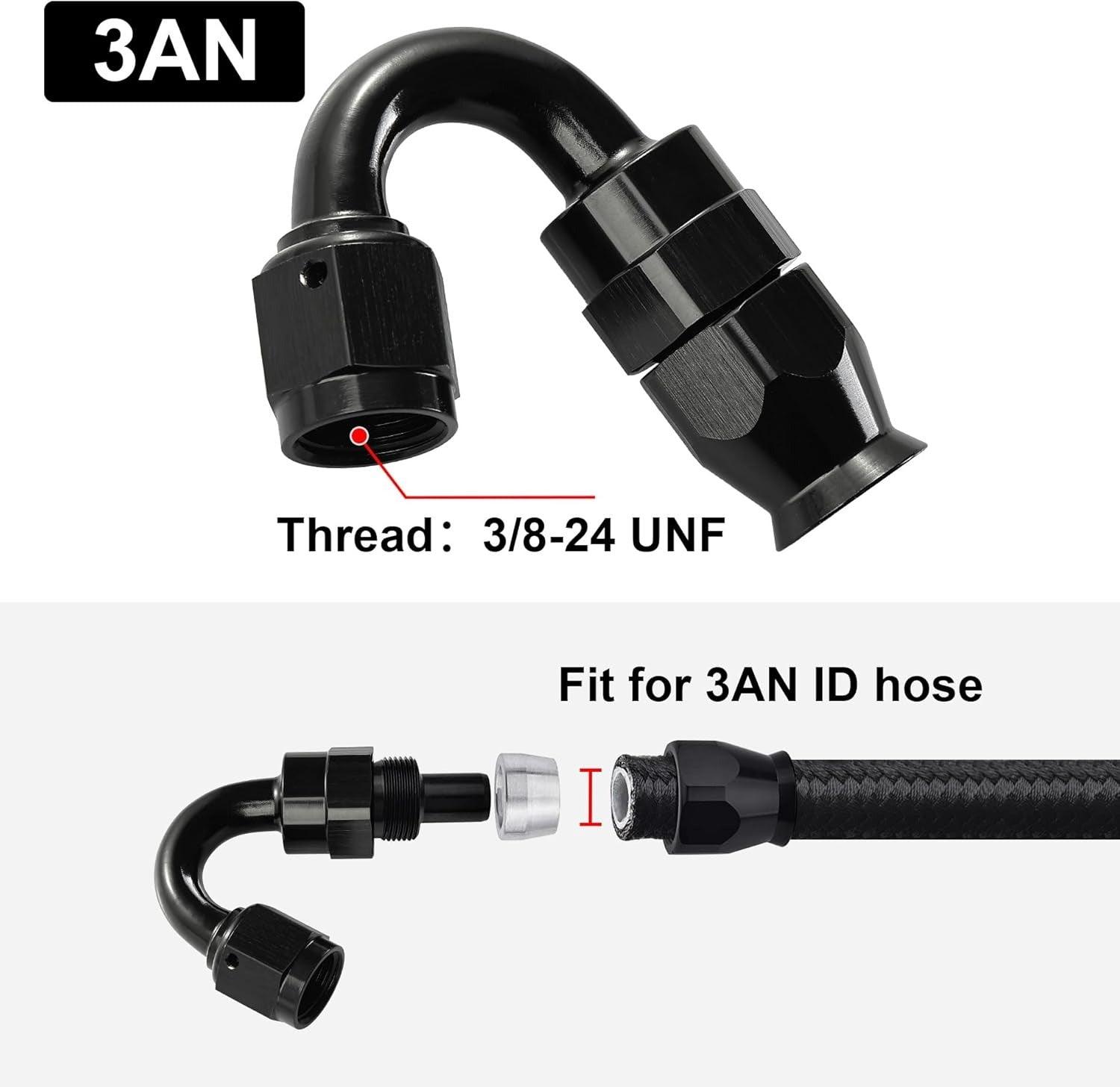

[Size] Thread Size of 3AN PTFE Fitting is 3/8-24 UNF.

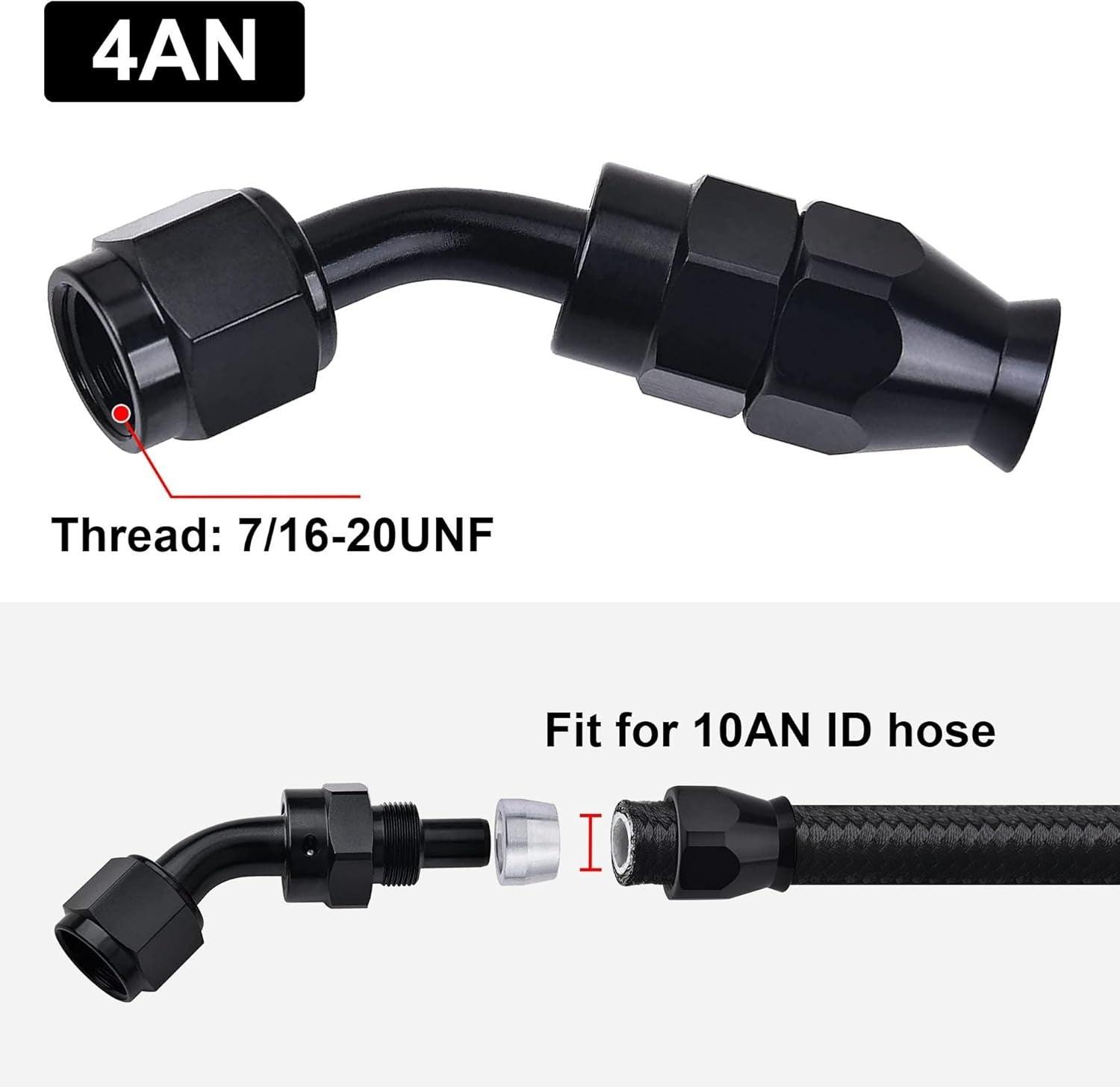

Thread Size of 4AN PTFE Fitting is 7/16-20UNF.

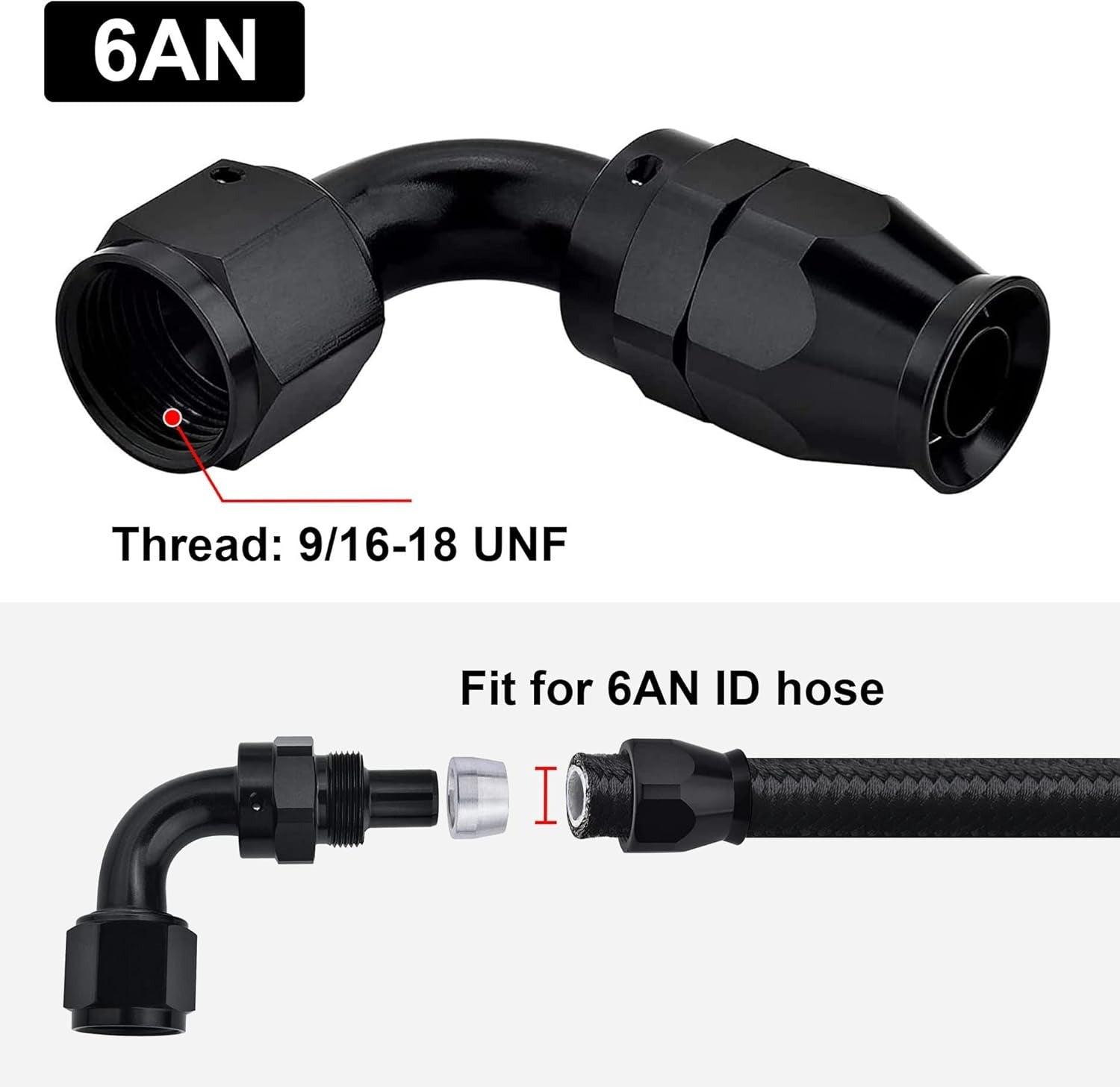

Thread Size of 6AN PTFE Fitting is 9/16-18UNF.

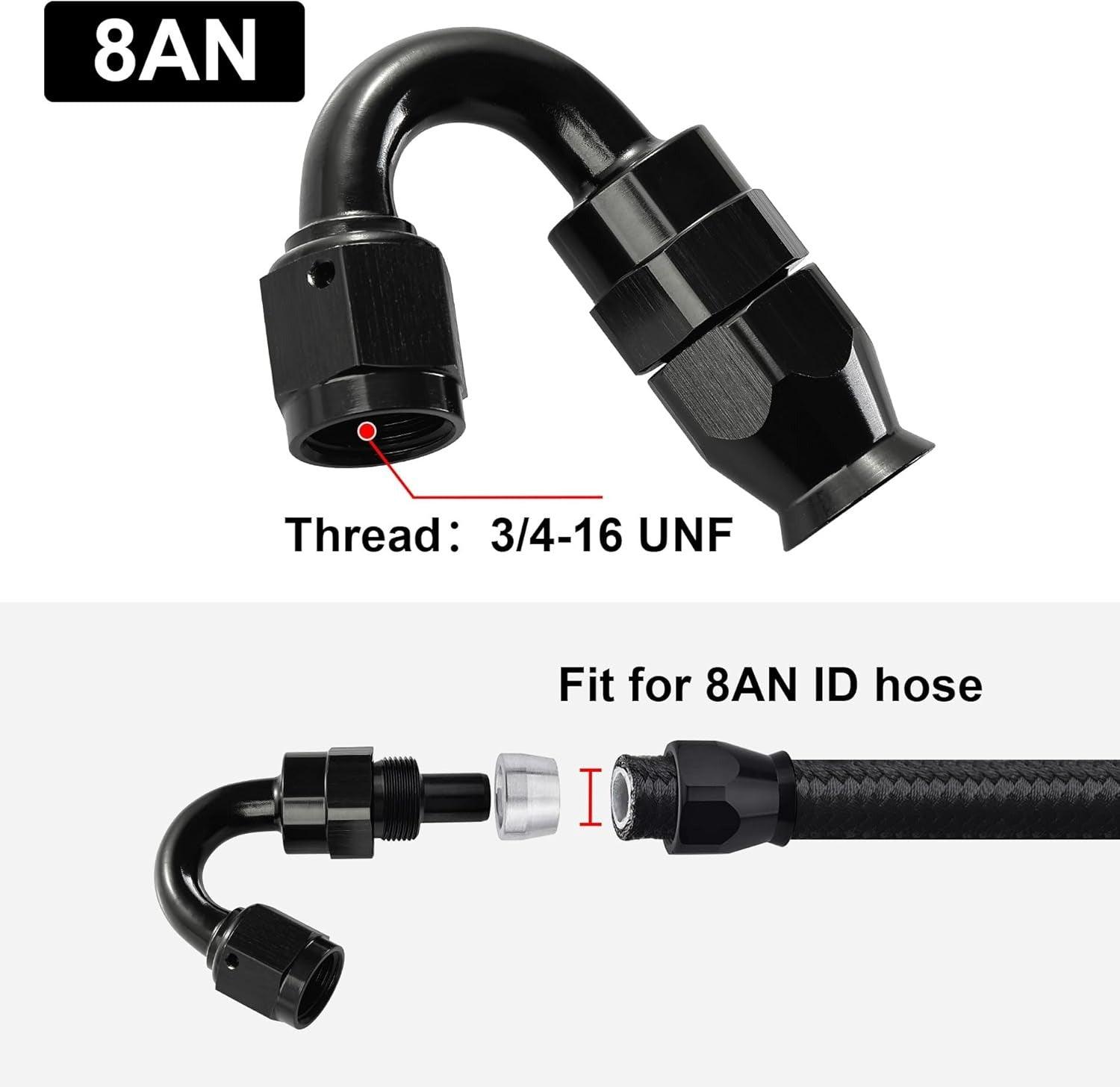

Thread Size of 8AN PTFE Fitting is 3/4-16UNF.

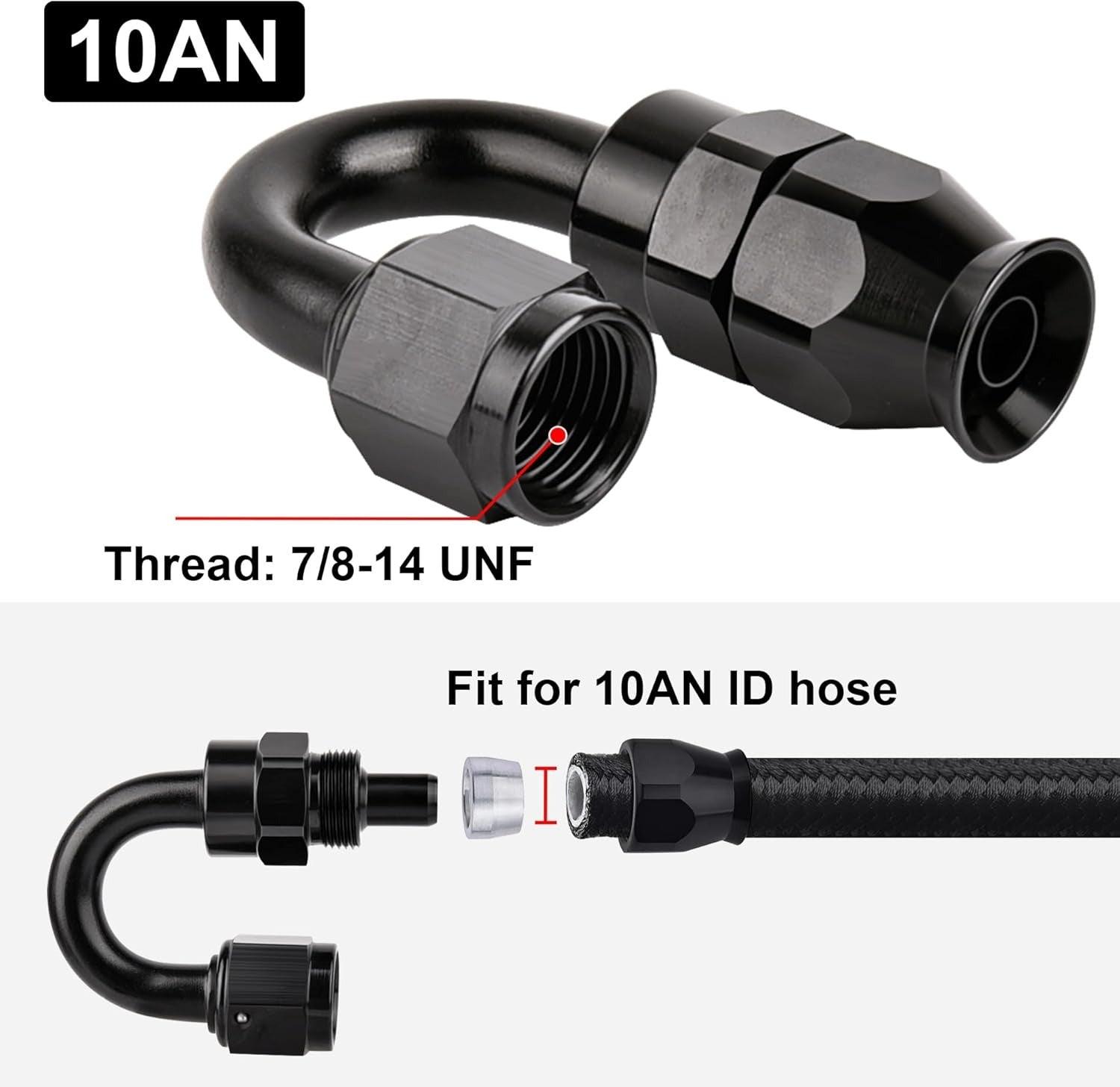

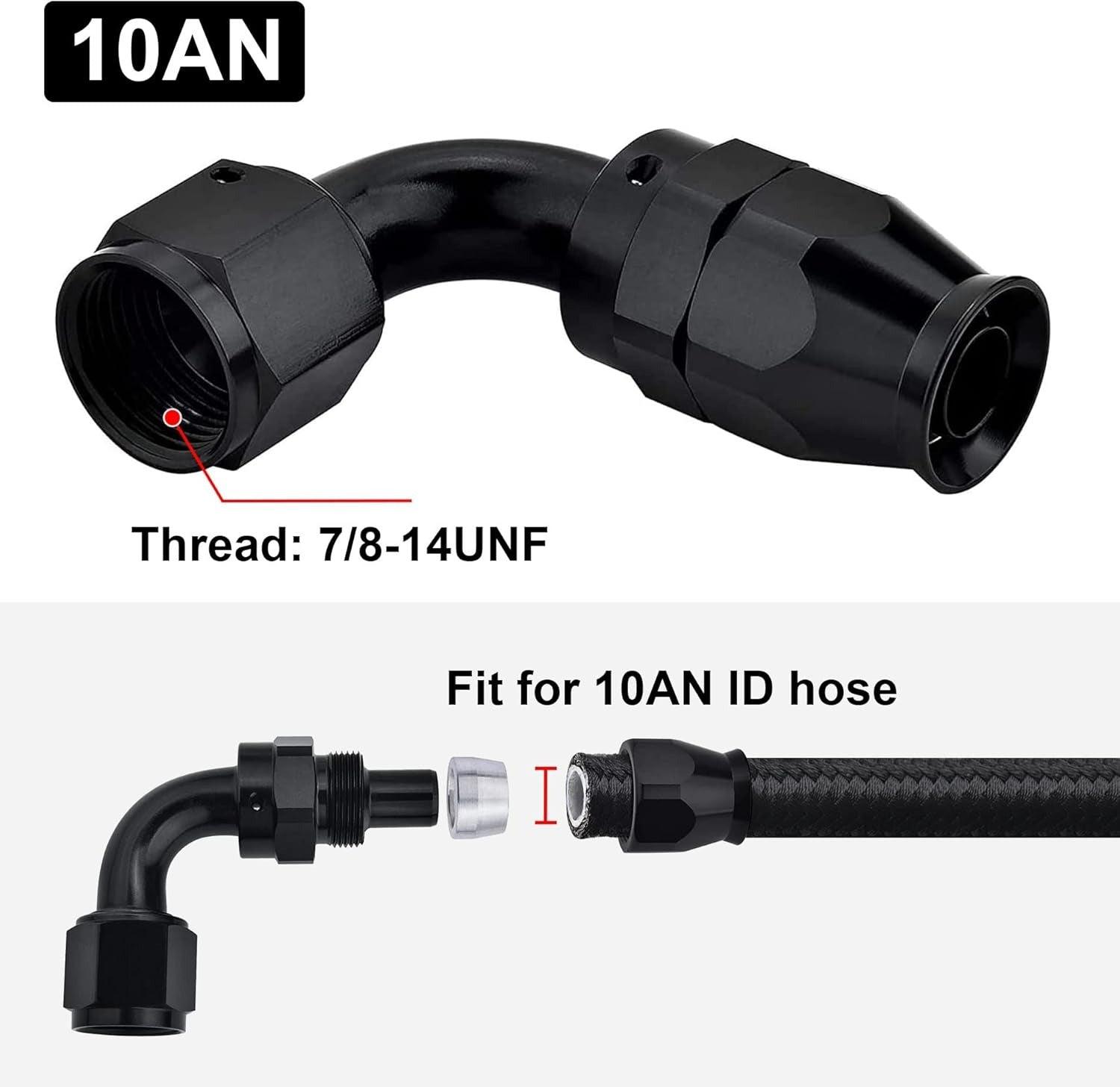

Thread Size of 10AN PTFE Fitting is 7/8-14UNF.

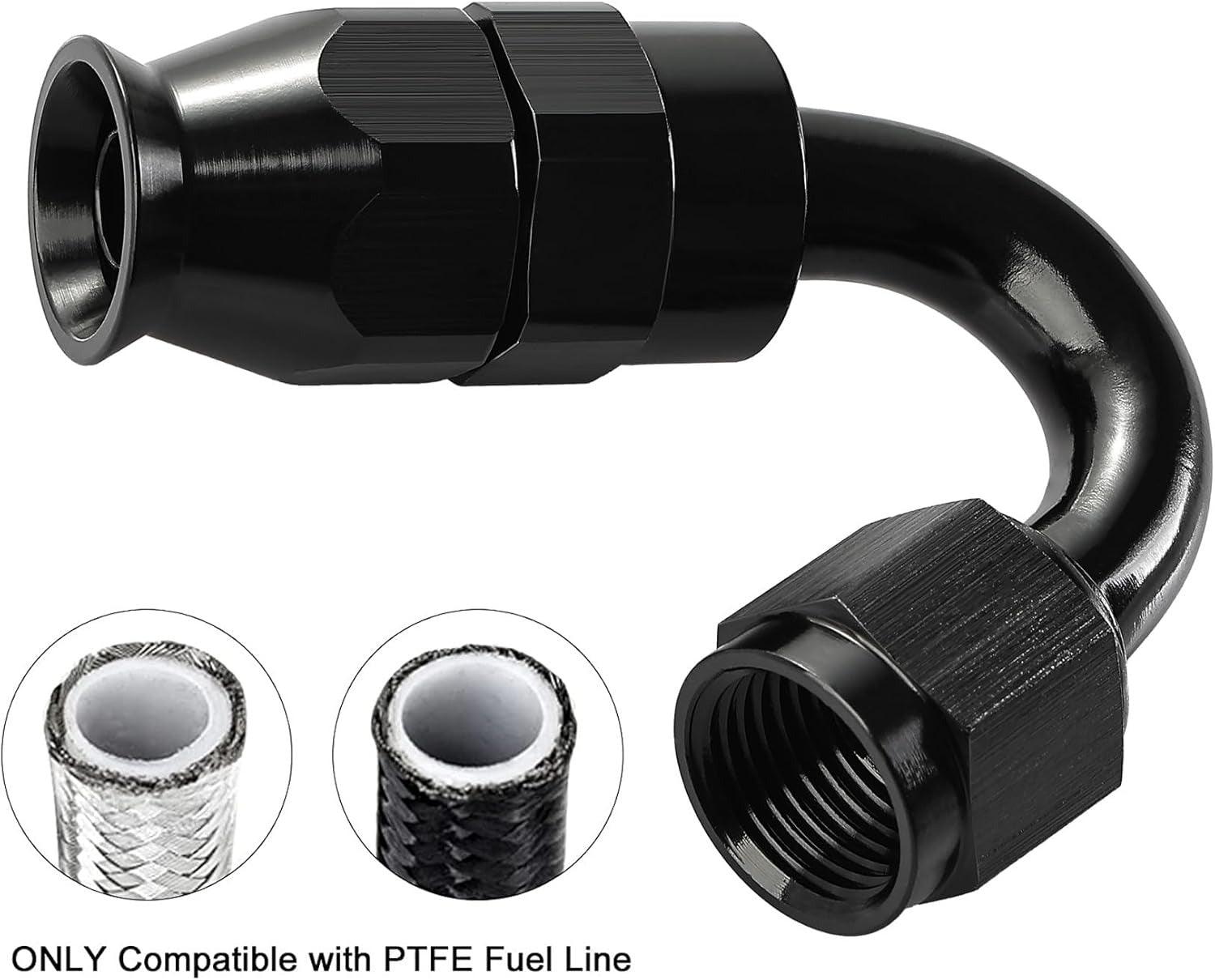

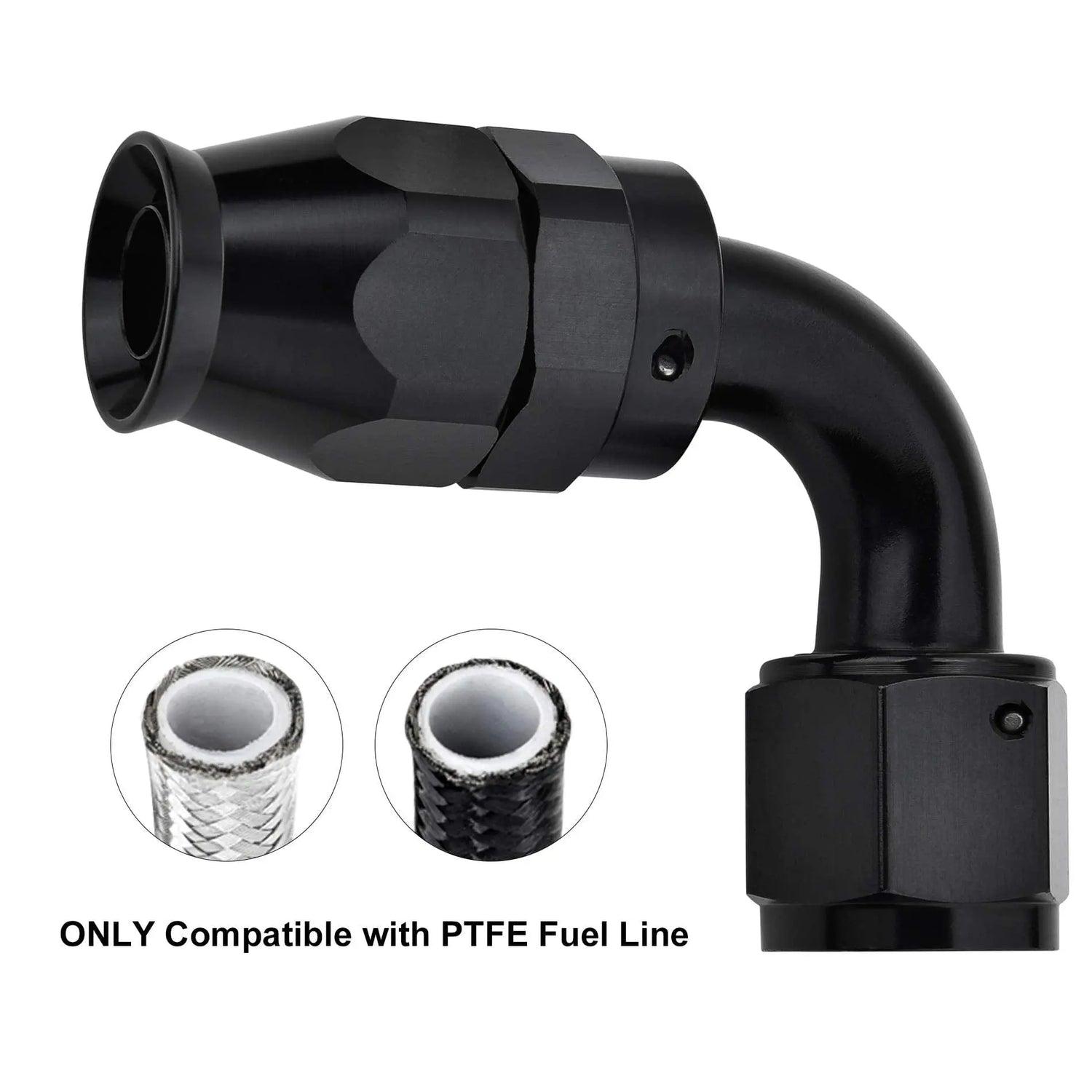

[Application] The PTFE Hose End only work with PTFE fuel line.

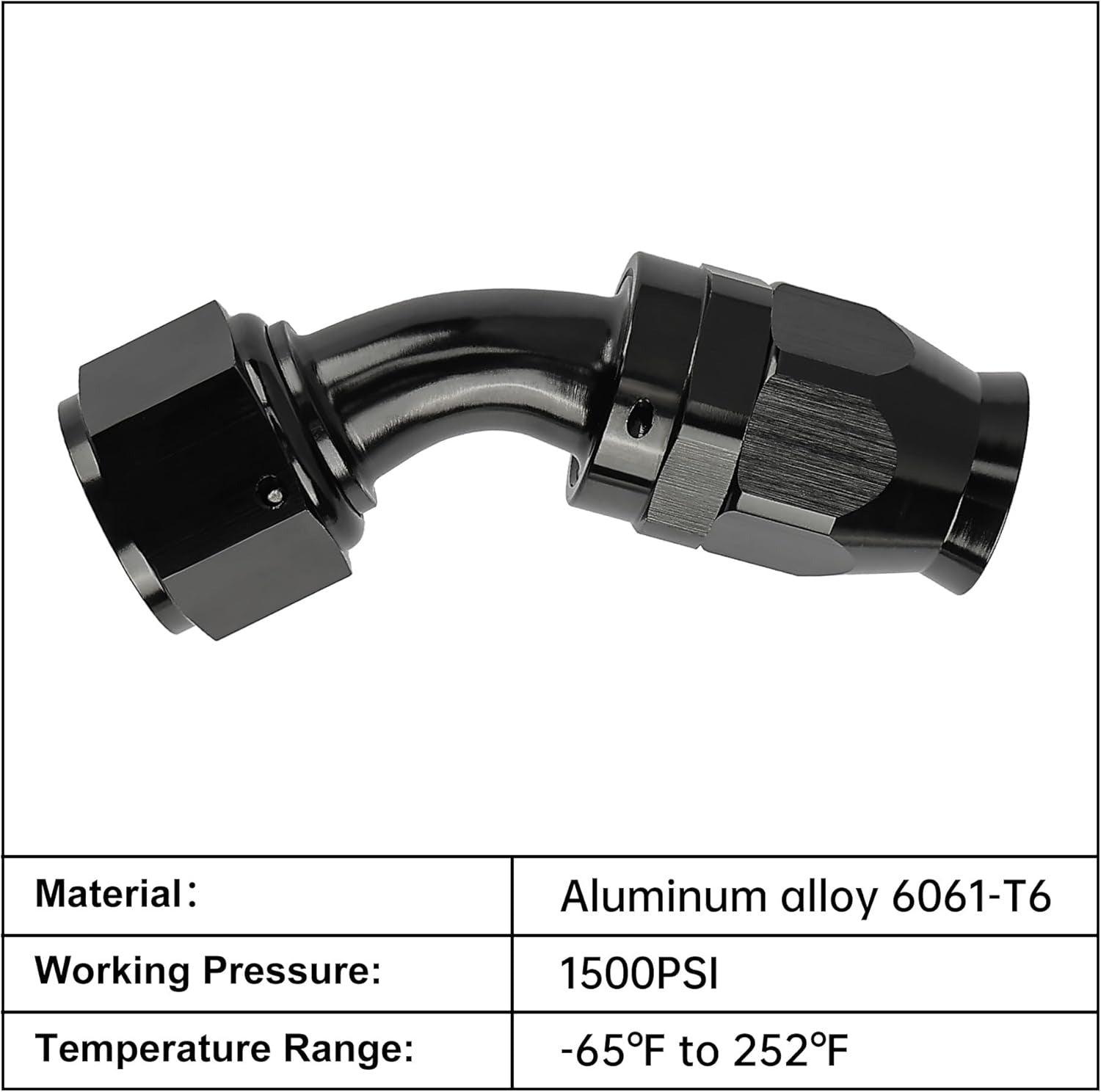

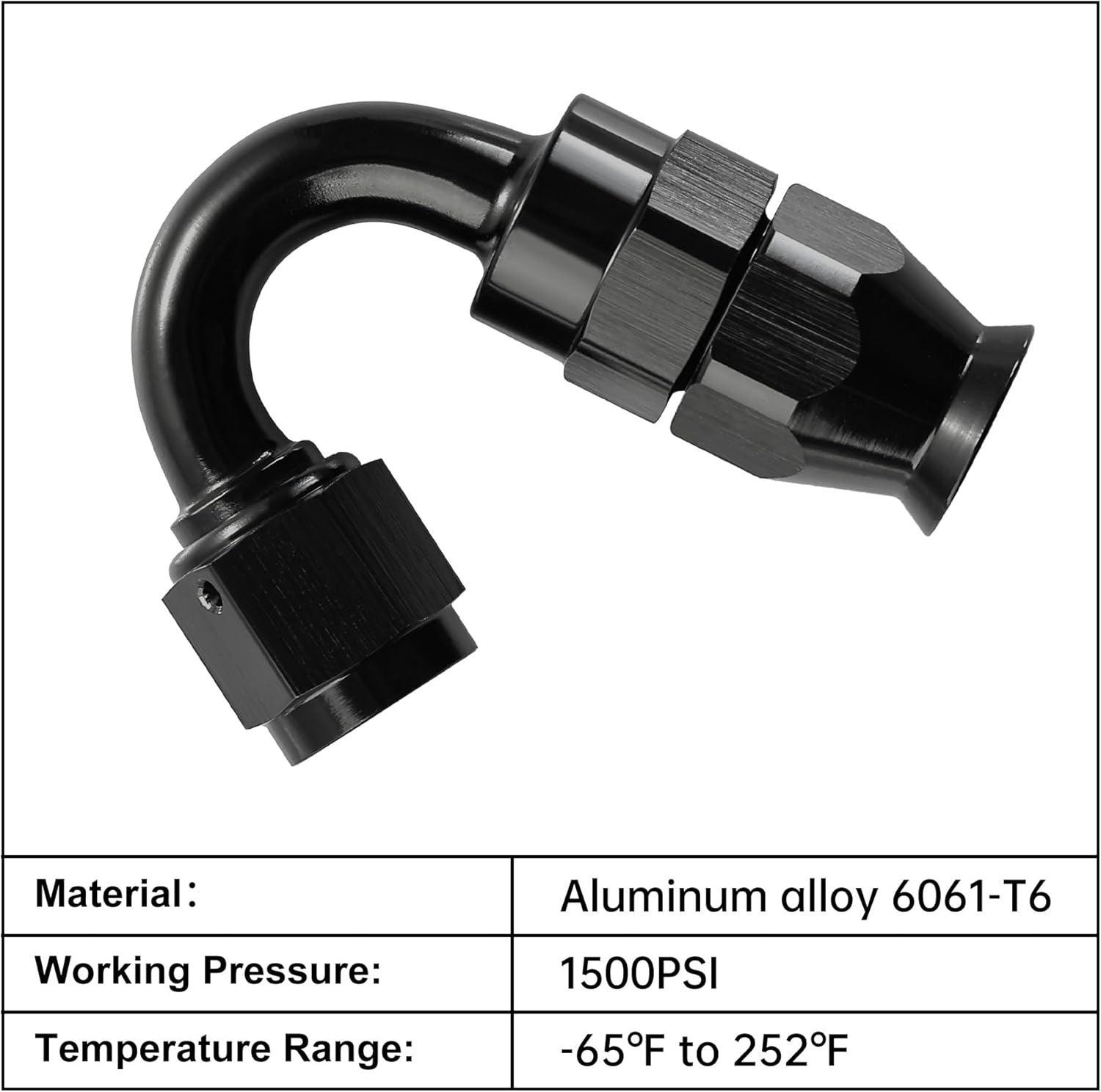

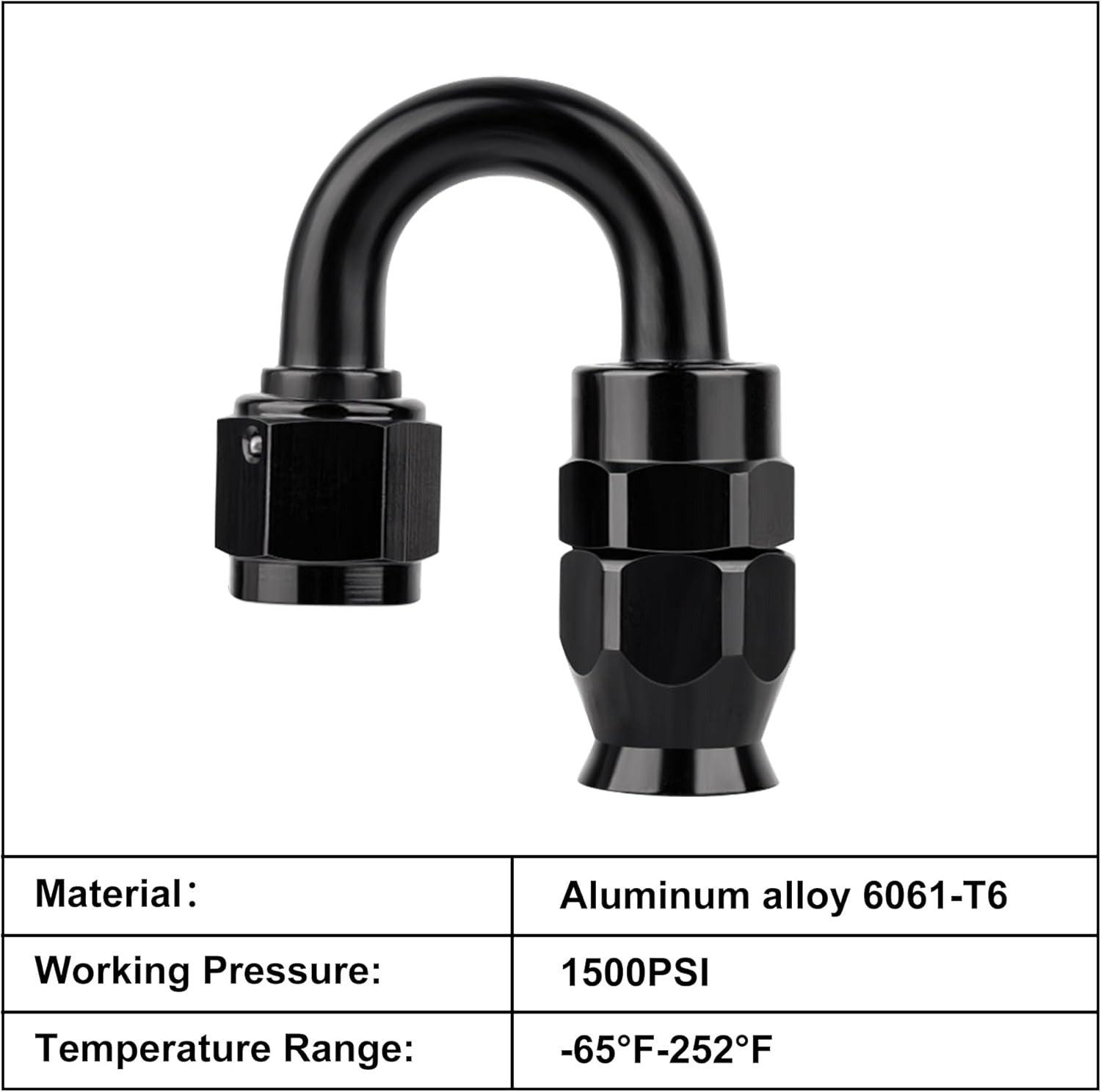

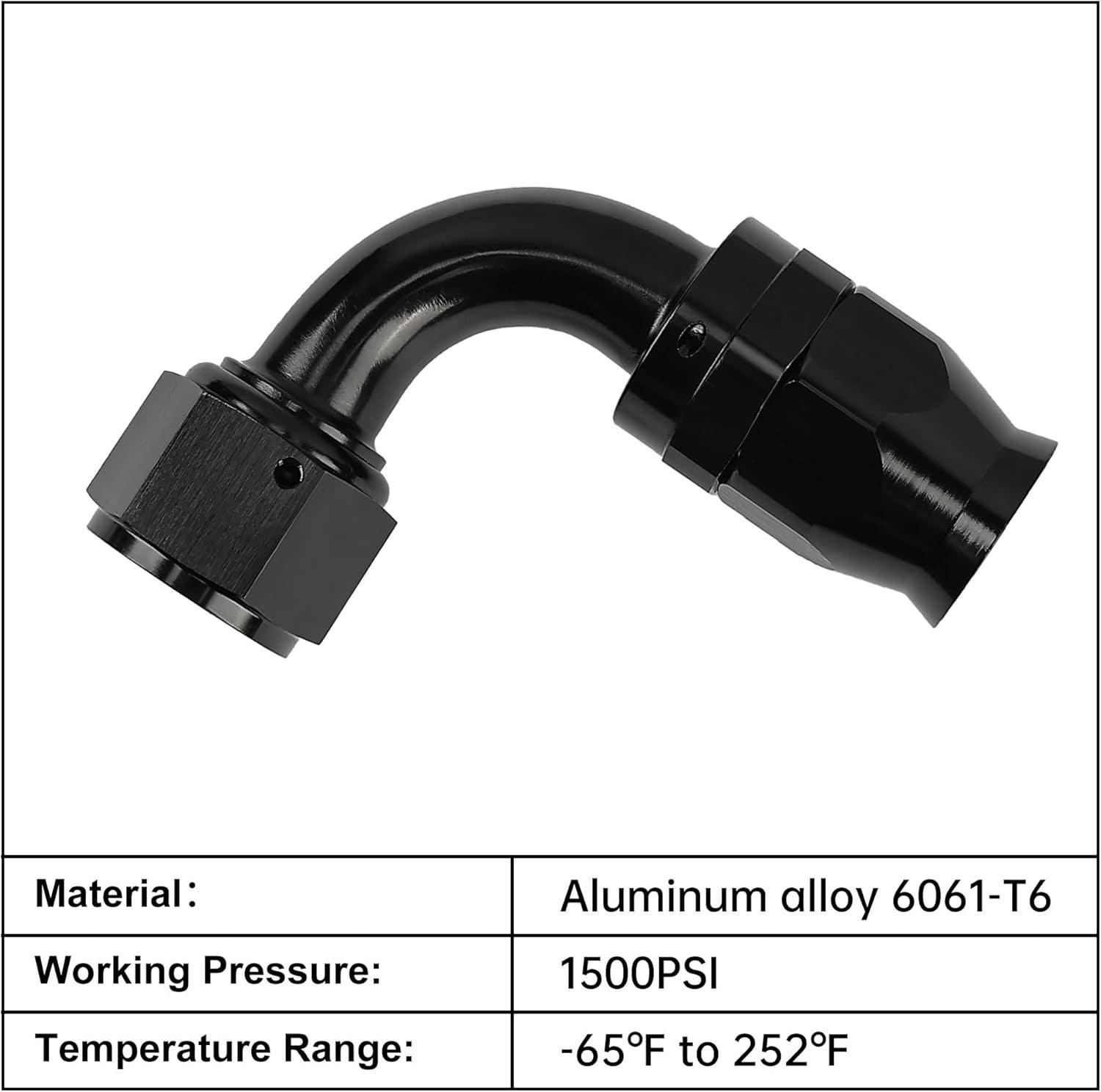

[Parameter] Working pressure: 1500PSI. Temperature range: -65°F-252°F.
[Seal] The AN side is sealed by a 37 degree angle.

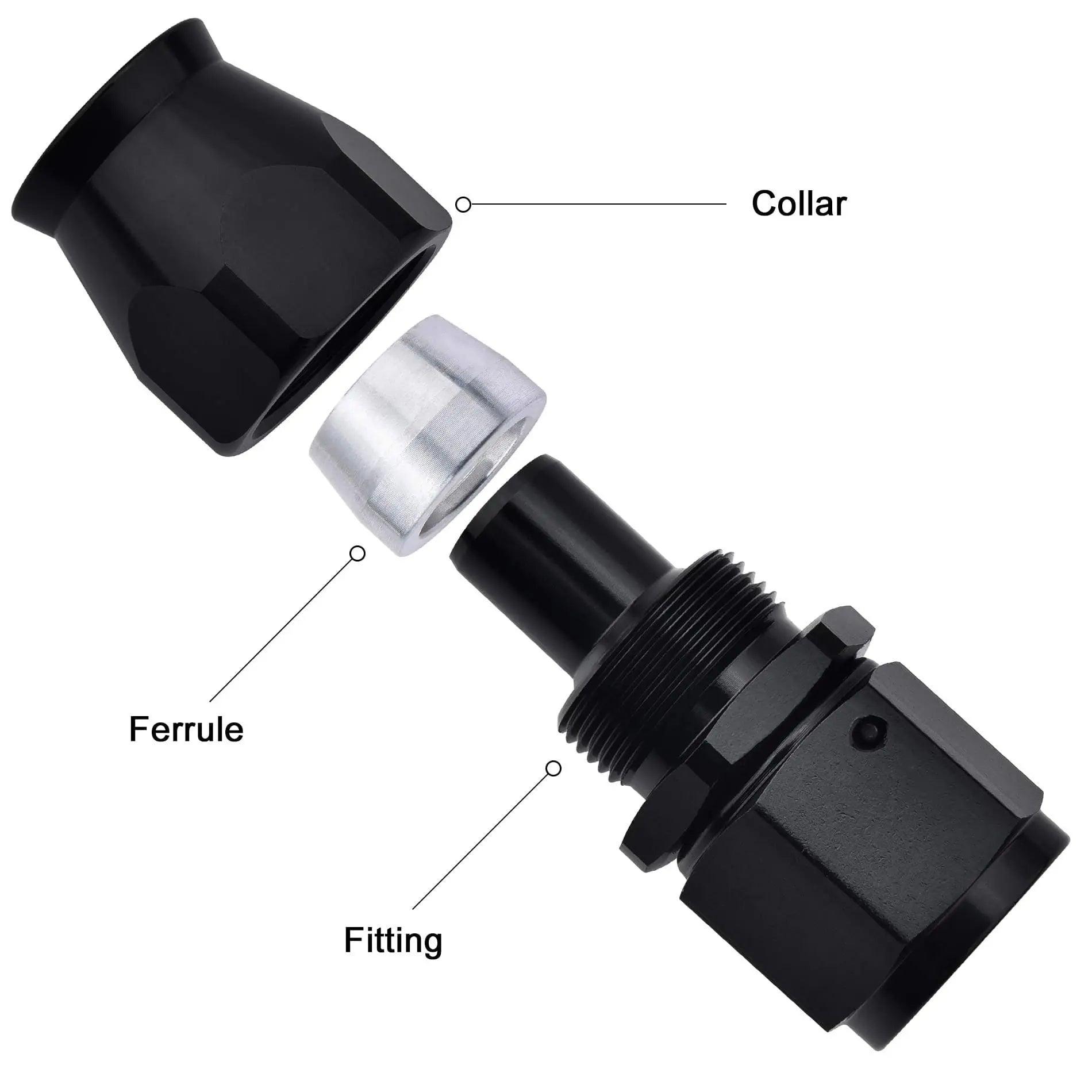

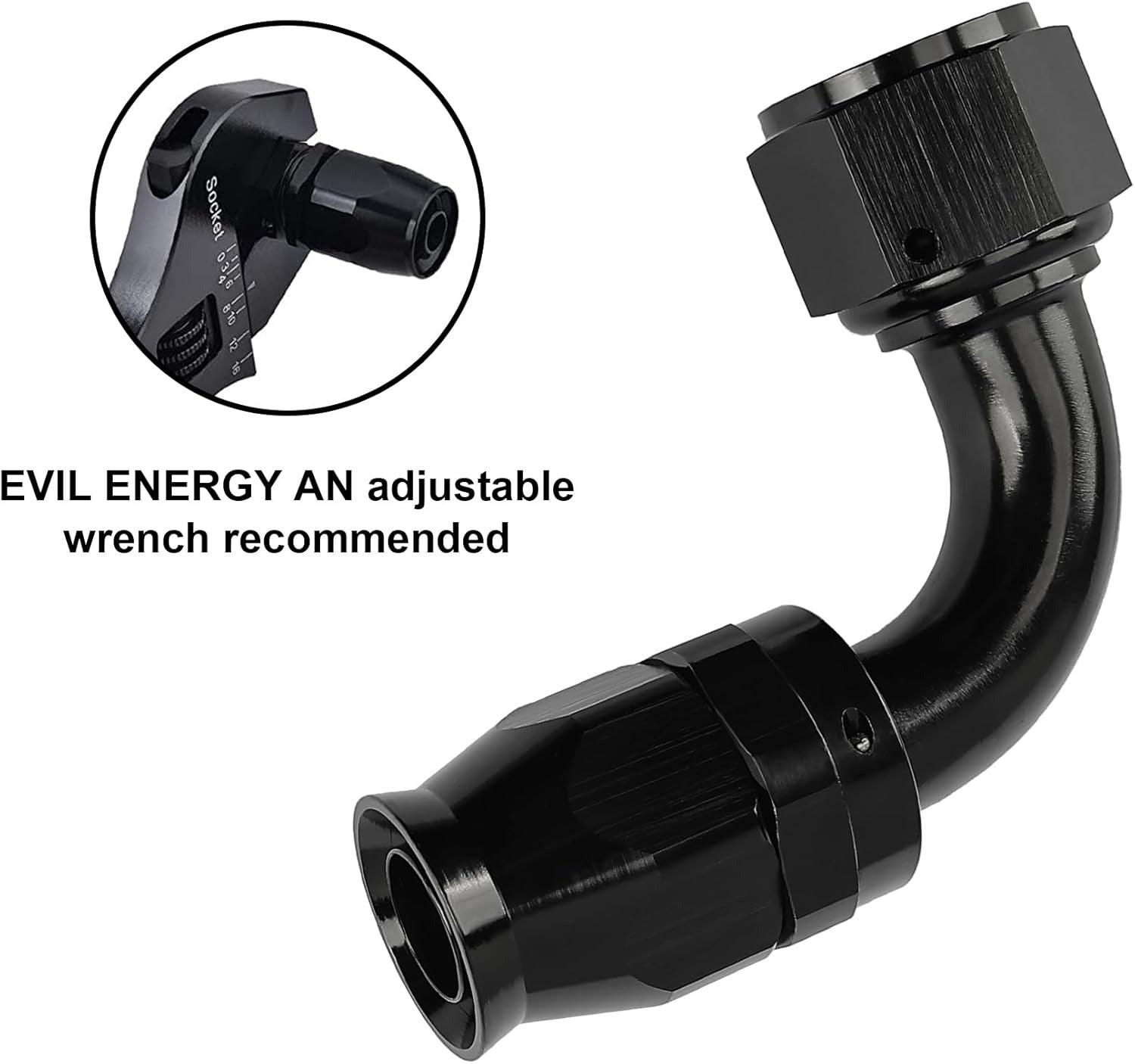

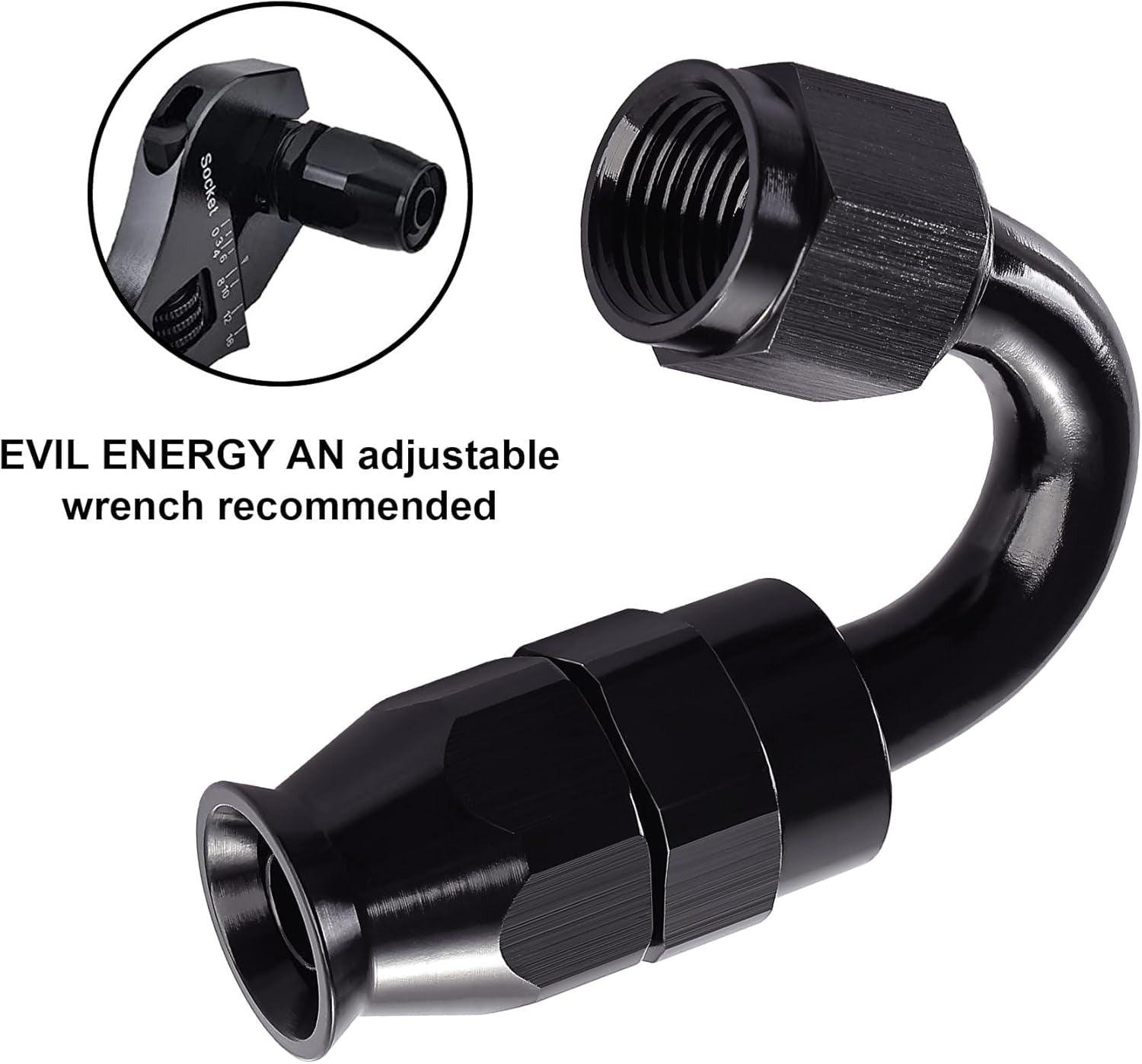

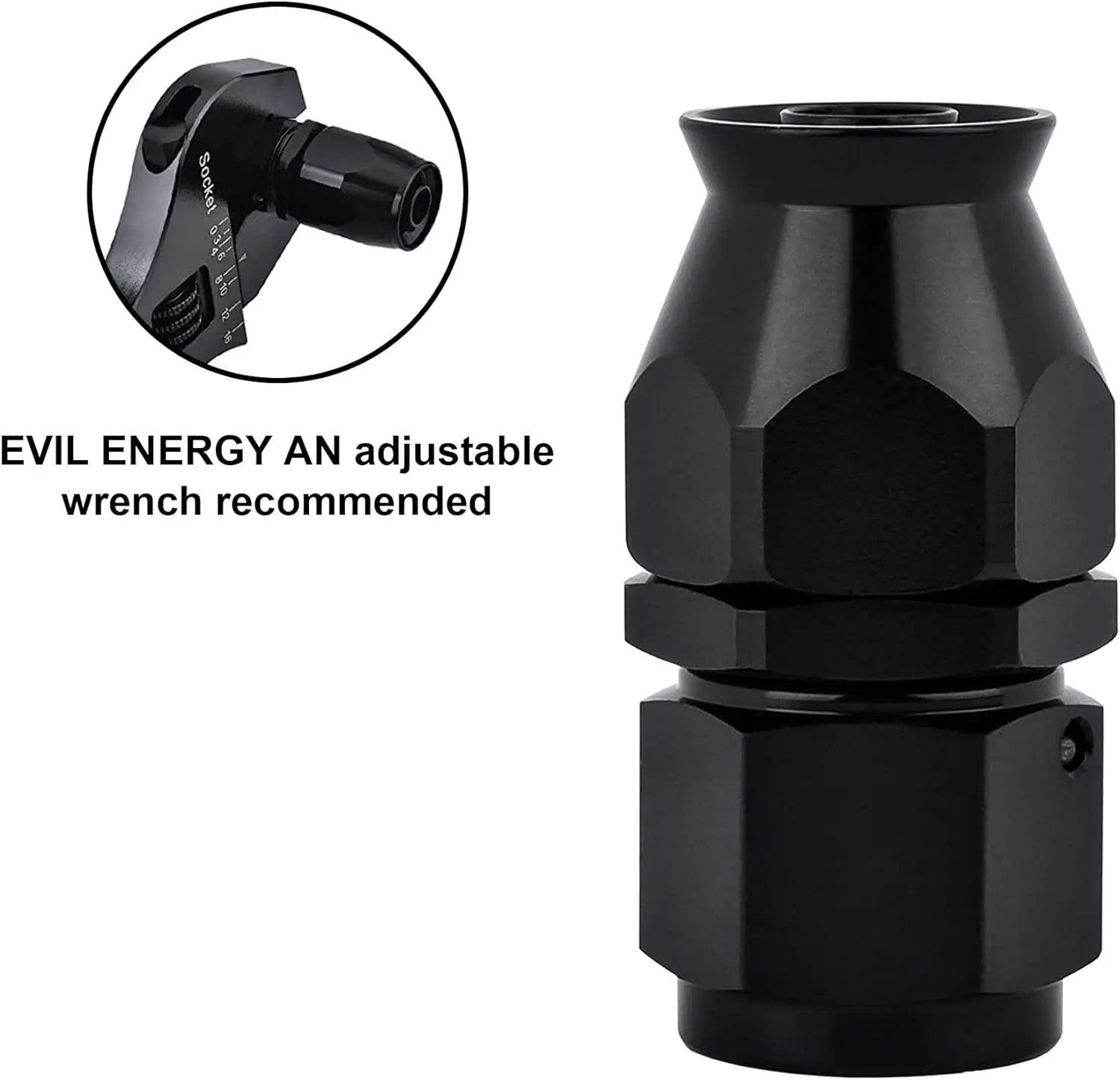

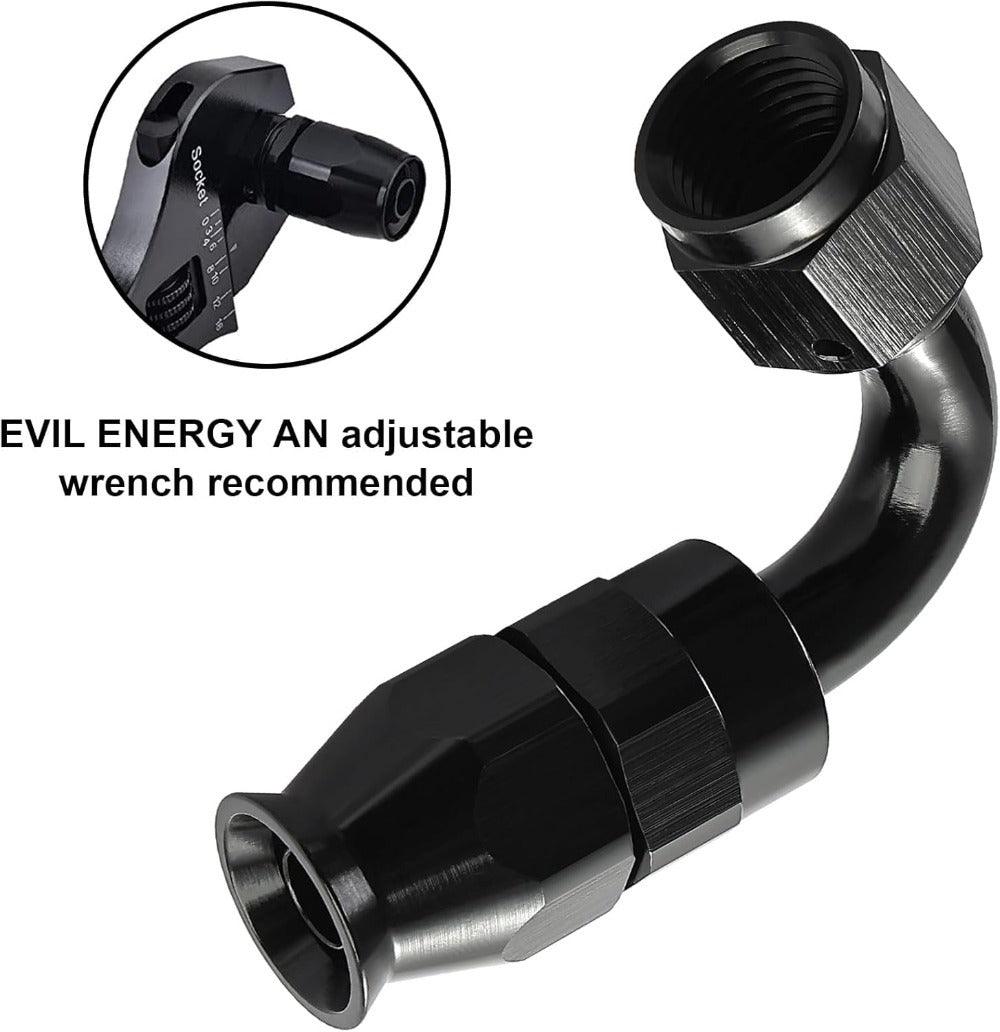

[Material and Feature] Made of aluminum alloy 6061-T6. 360° Swivel design for easy assembly.

Product Description

EVIL ENERGY AN straight PTFE hose ends Feature of EVIL ENERGY an straight PTFE hose ends Application of EVIL ENERGY an straight PTFE hose ends More Related Products to EVIL ENERGY an straight PTFE hose ends
