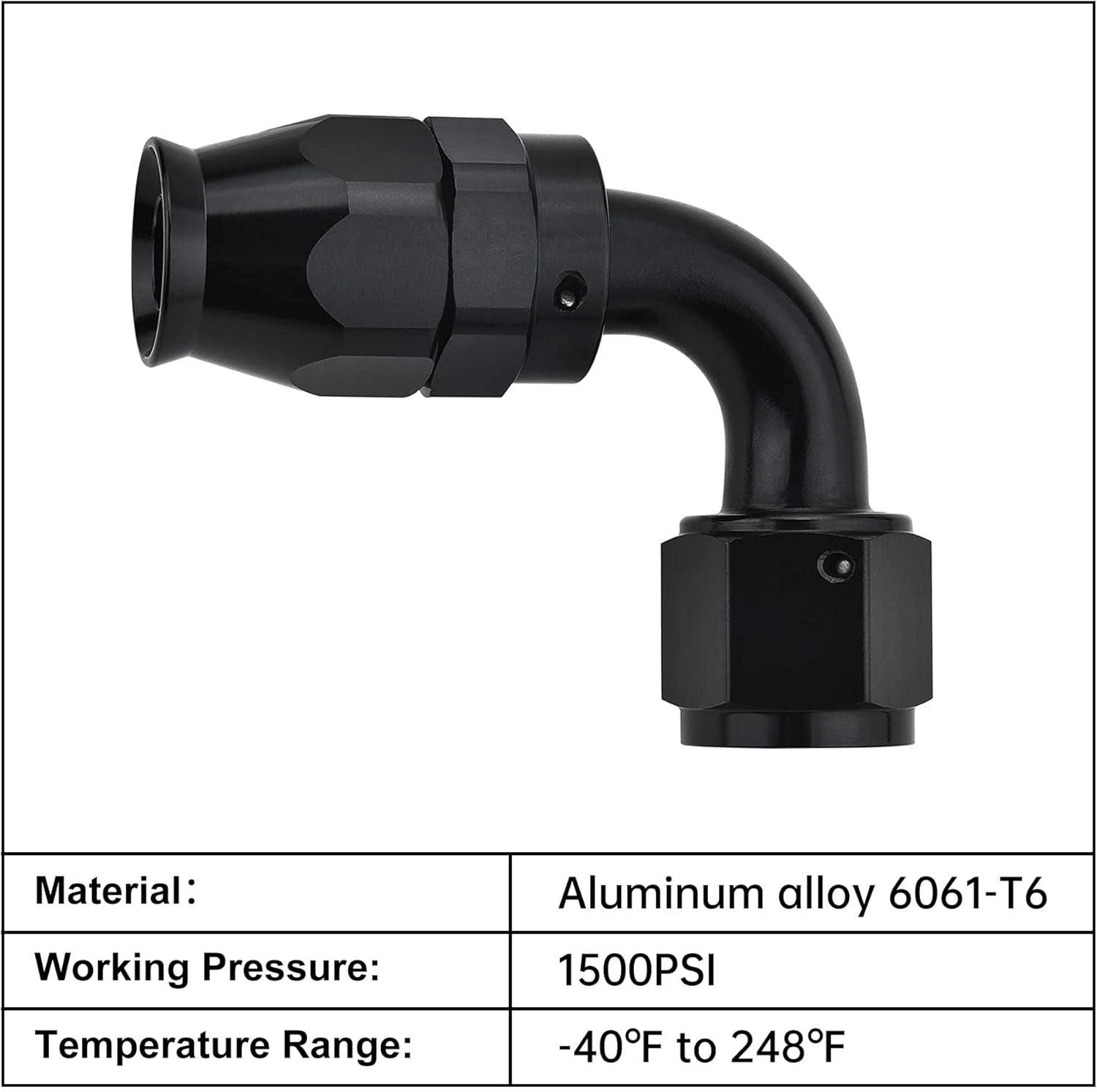

![90 degree ptfe hose end[PTFE]](http://www.ievilenergy.com/cdn/shop/files/60_61YKtdPFttL._AC_SL1500.jpg?v=1735282111)
![6AN Hose end[CPE]](http://www.ievilenergy.com/cdn/shop/files/EVIL-ENERGY-LS-Swap-fuel-system-kit-Inline-Fuel-Pump-CPE-Fuel-Hose-_Copy_-EVILENERGY-101966511.jpg?v=1735282111)
Dive into the ultimate fuel system solutions with our comprehensive fuel line kits, engineered to cater to a variety of high-performance vehicles and applications, including LS Swaps and beyond. Choose between CPE and PTFE materials to suit your specific needs and preferences.
Product Specifications
|
Brand |
EVIL ENERGY |
|
6AN Fuel Line |

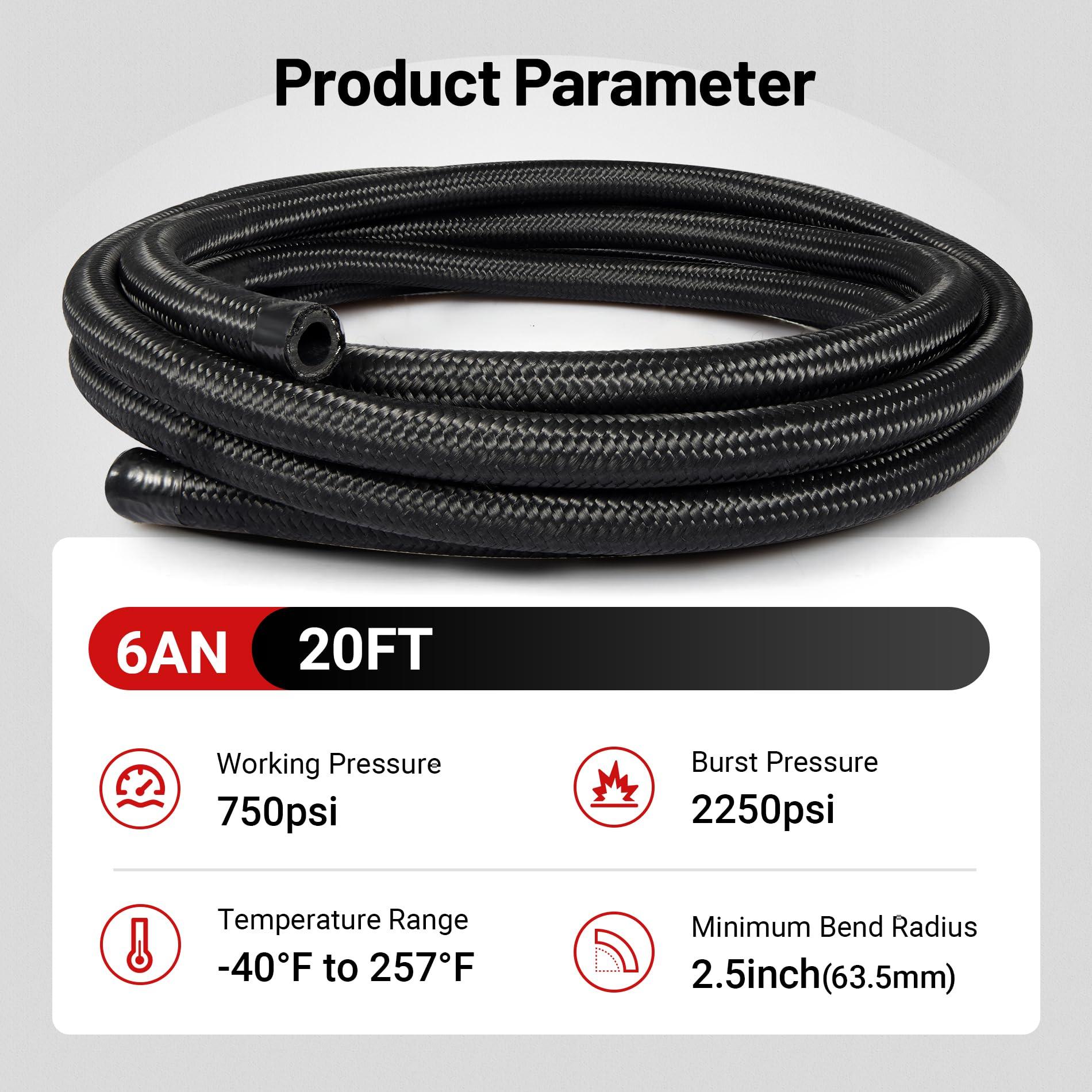

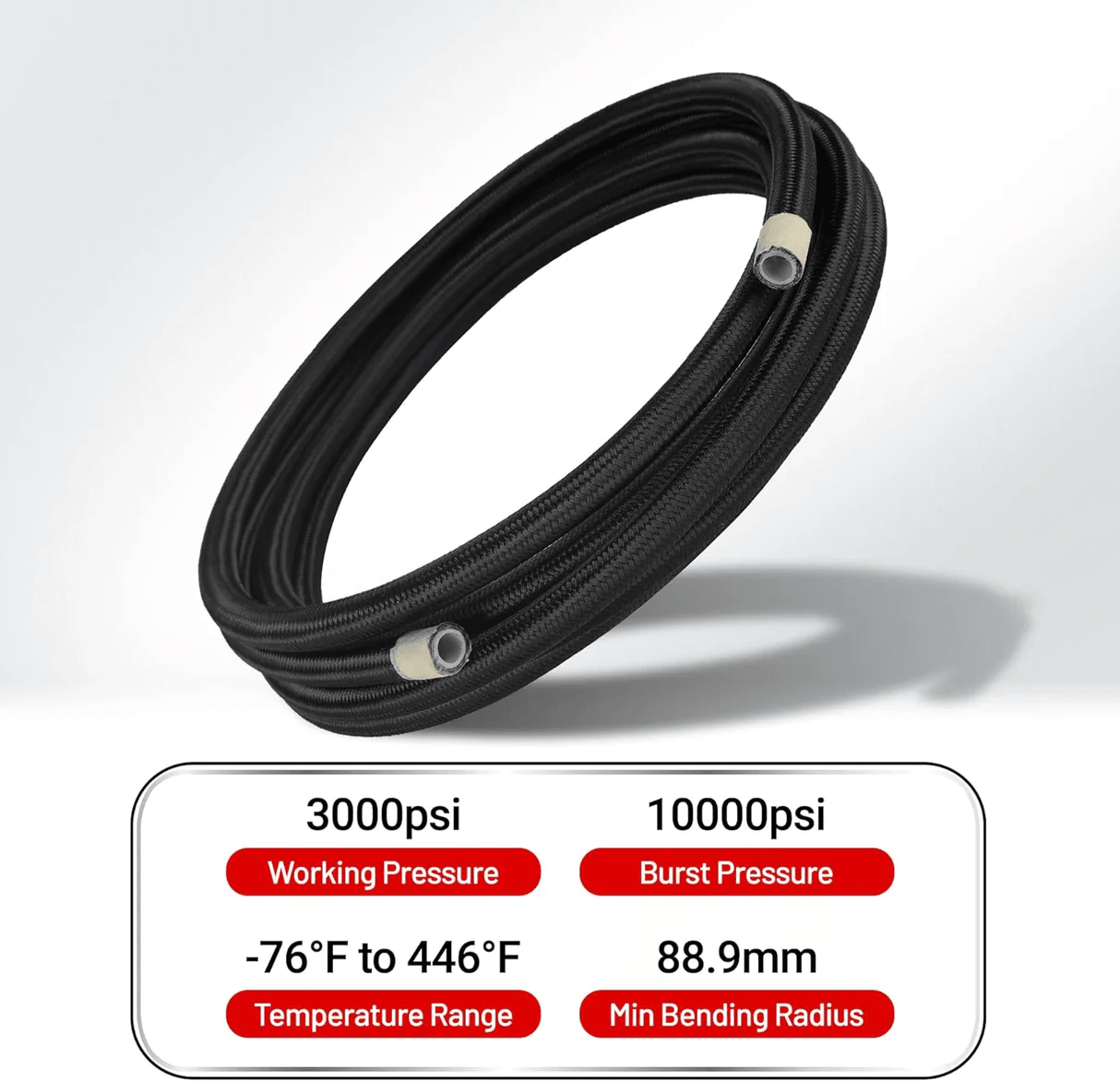

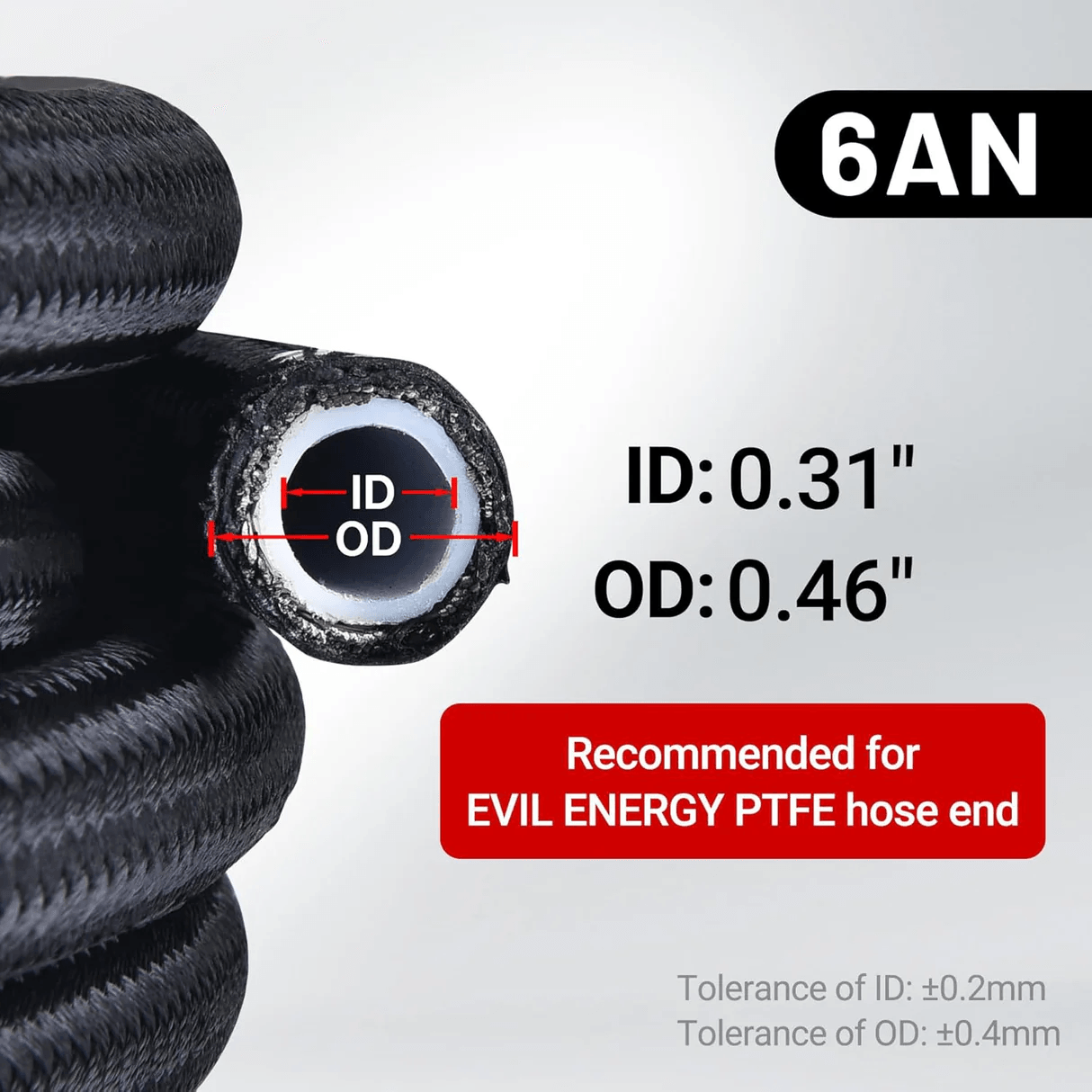

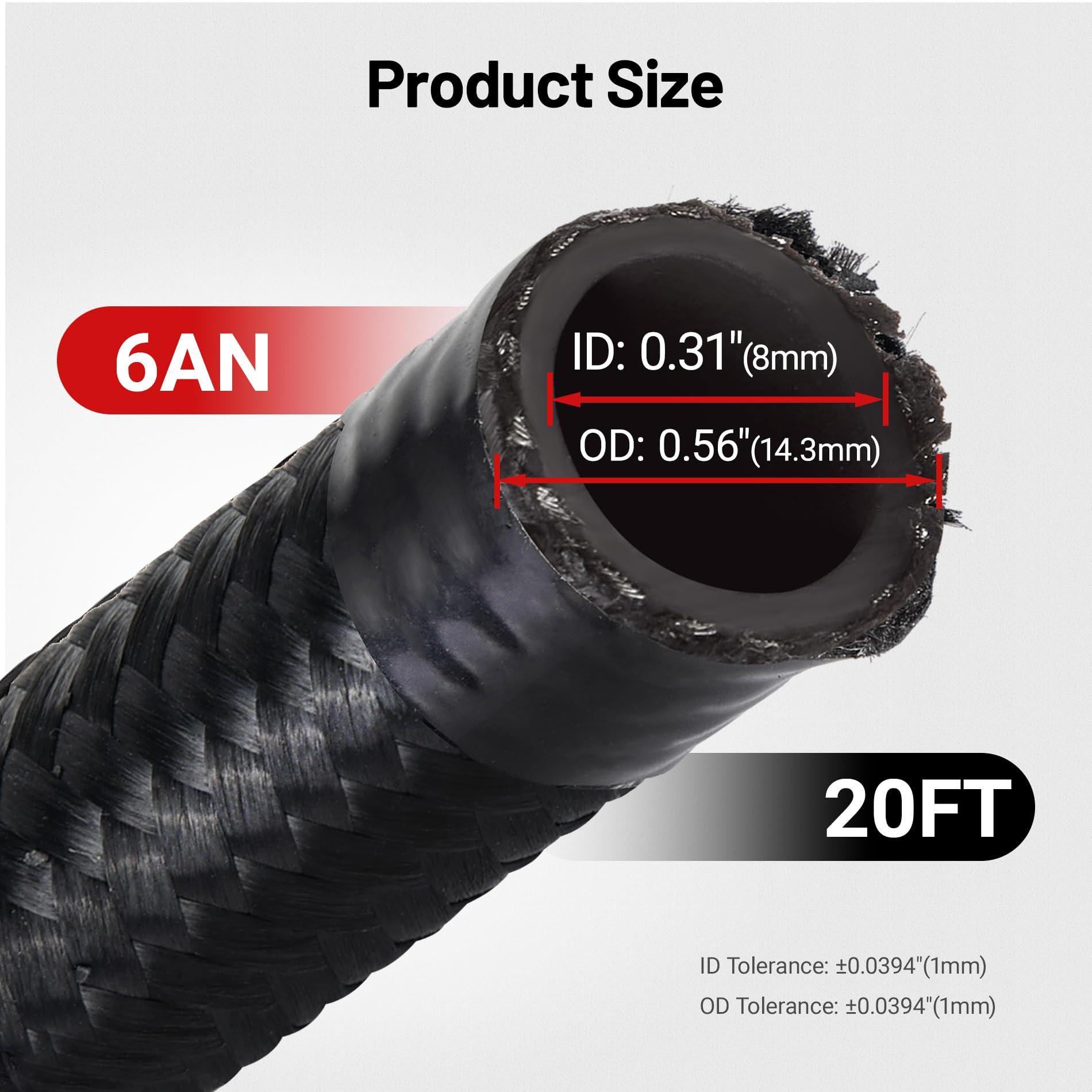

Material: CPE or PTFE (Optional) Hose ID: 0.34" Hose OD: 0.54" Maximum working pressure: 500psi Bursting pressure: 2000psi Temperature Range: -40℉ to 257℉ Min Bending Radius: 63.5mm |
|
Fuel Filter |
Material: Aluminum Alloy & Stainless Steel |
|
Fuel Pressure Regulator |
20-120PSI |
|
External Inline Fuel Pump |
Fit Type: Universal Fit Material: Alloy Steel Lift Type: Electric Test Flow: 300 LPH (43 PSI&13.5V) Operating Pressure: 75PSI Operating Temperature Range: -68 °F - 194 °F. |
|
|
|

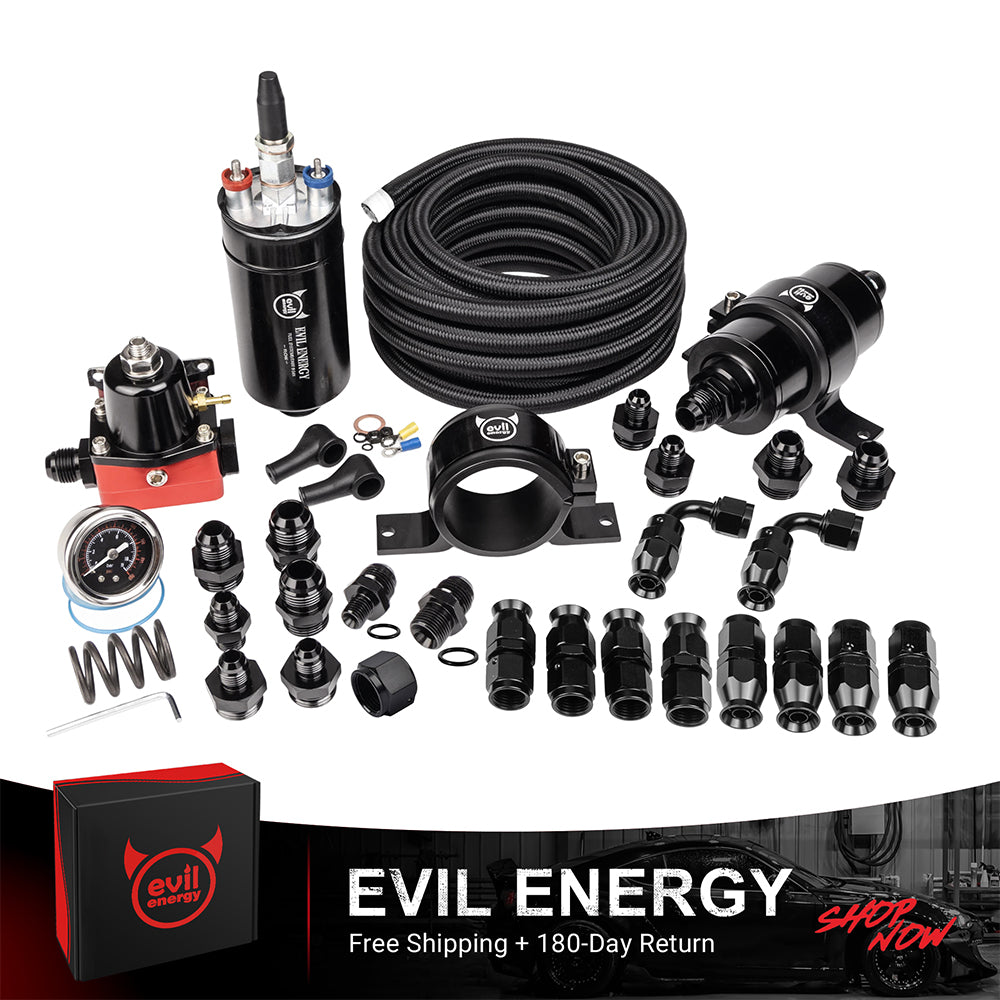

Kit Includes |

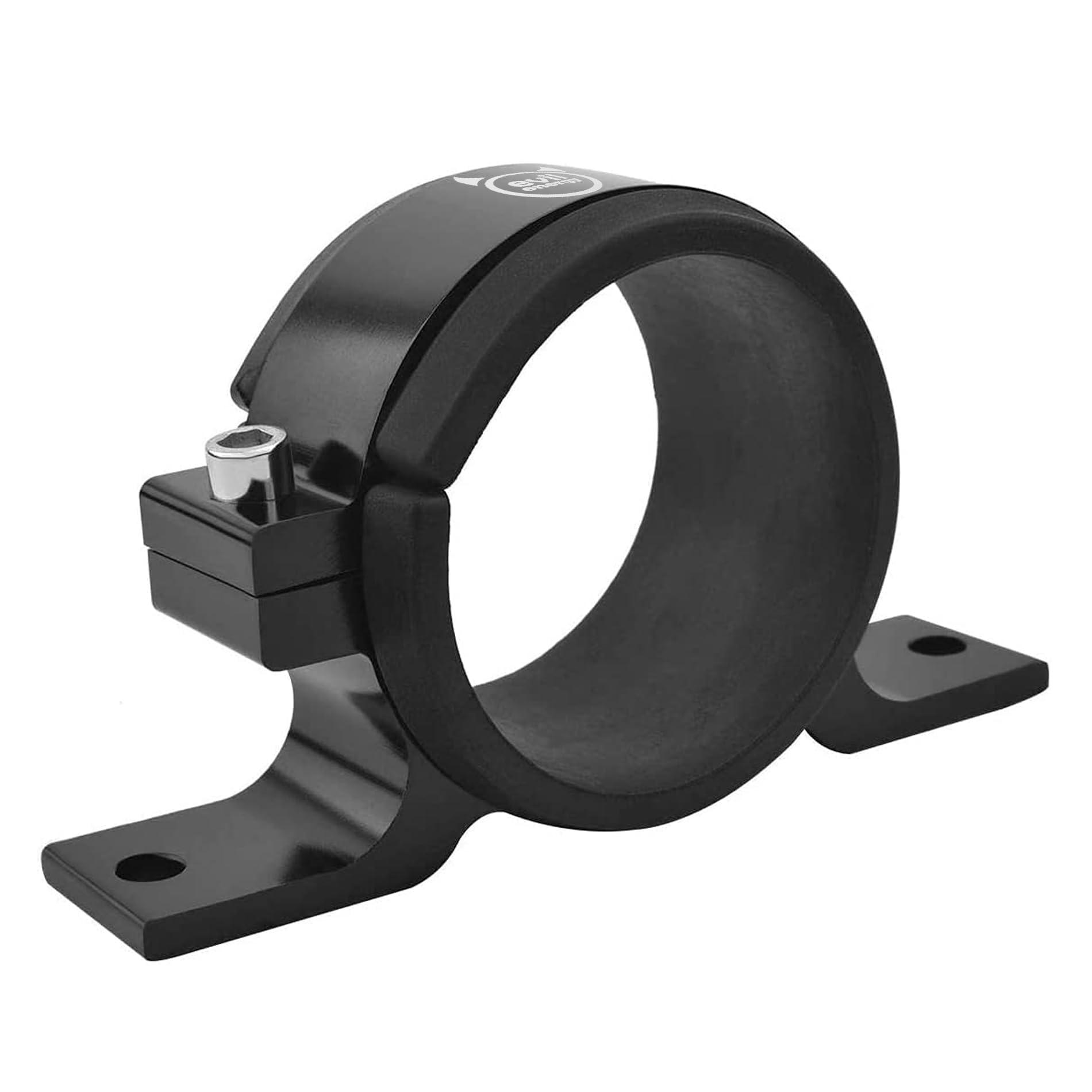

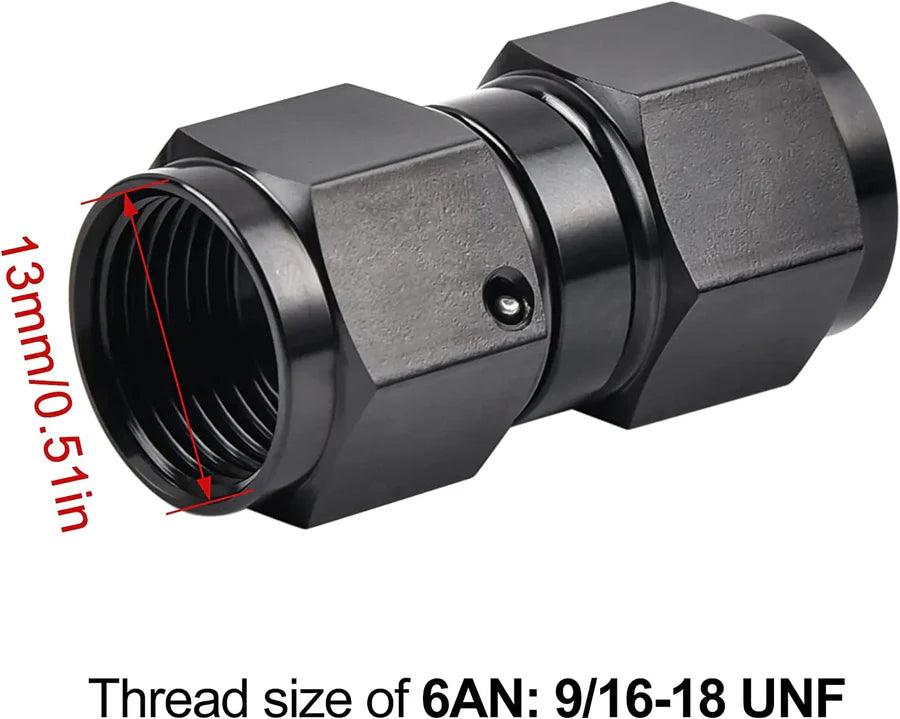

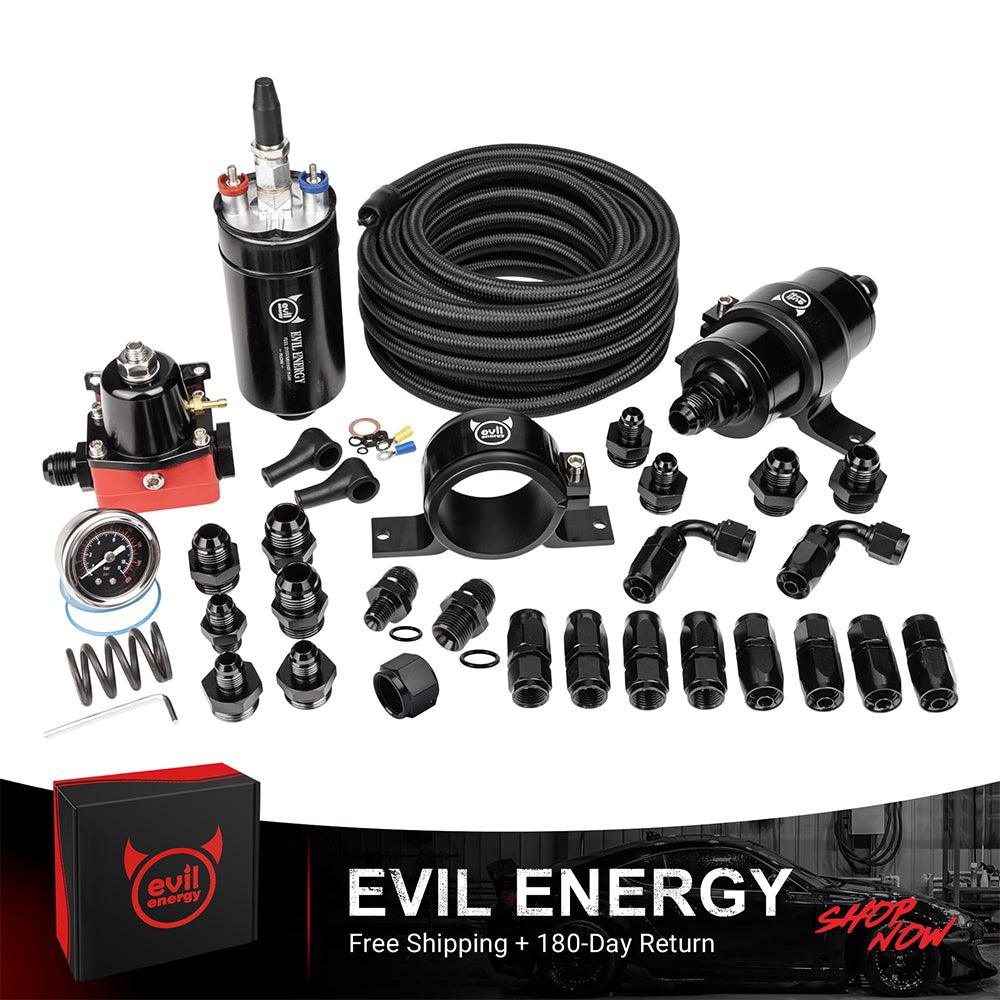

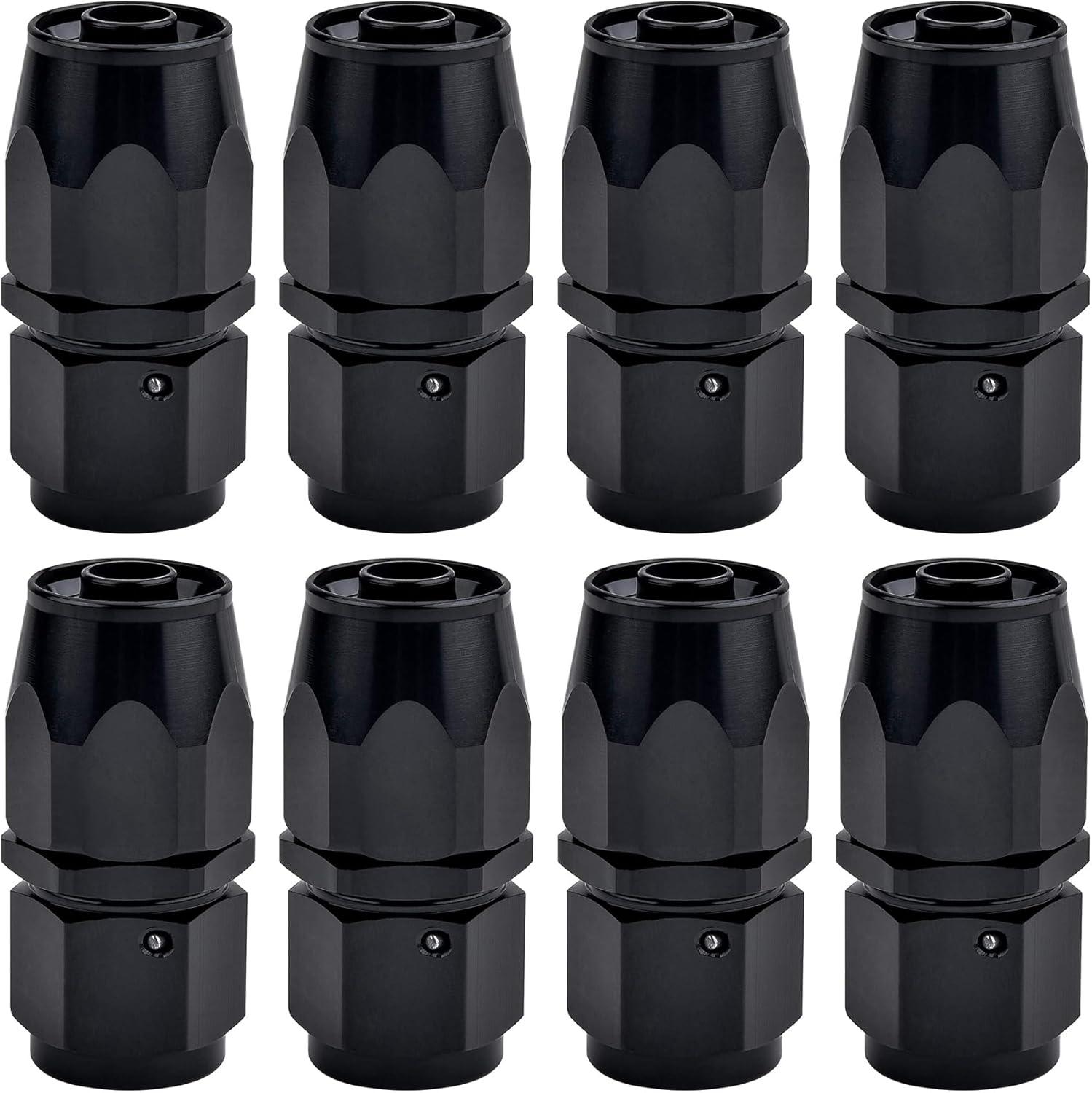

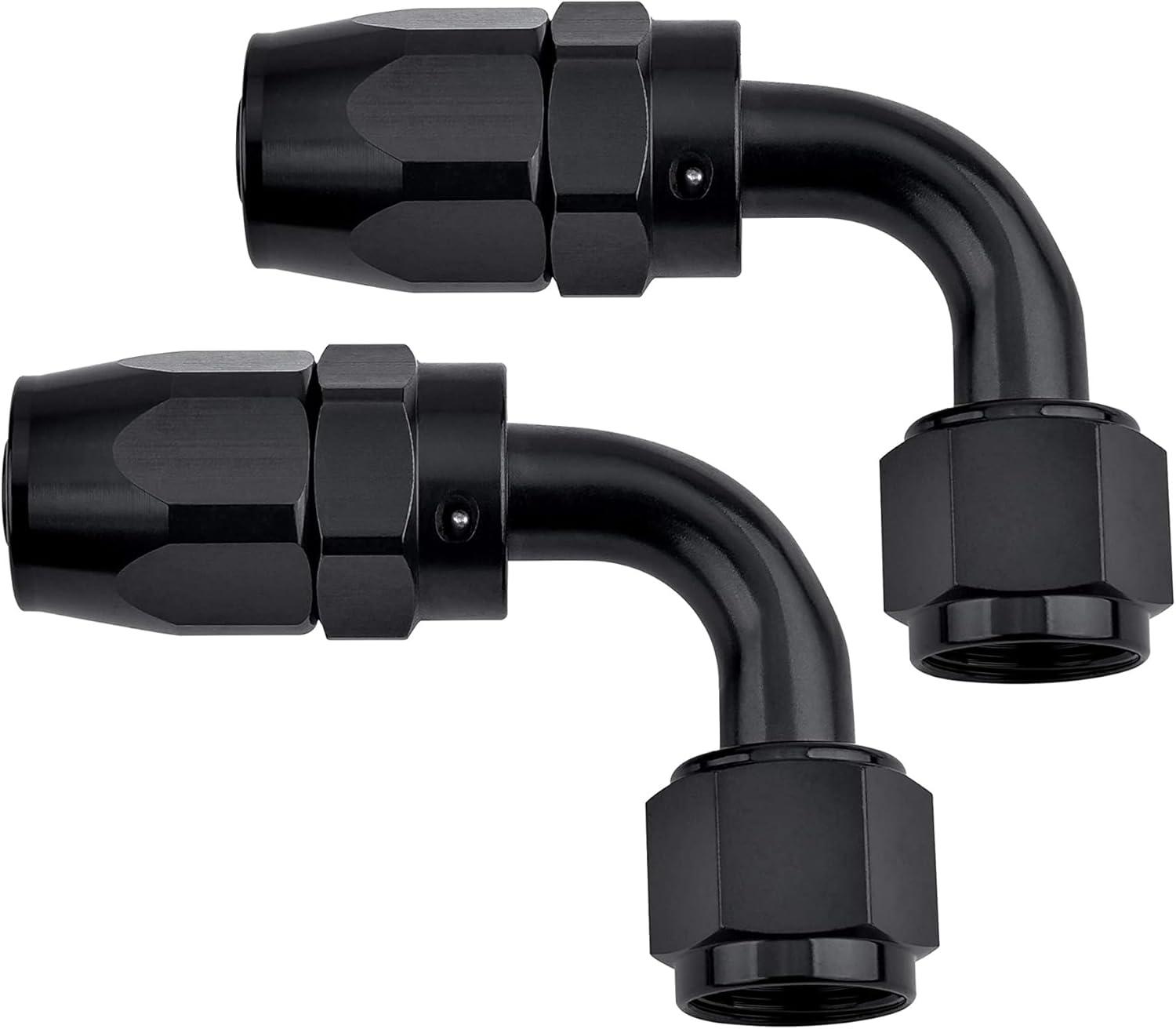

Option 1: CPE Hose Kit 6AN 20FT CPE Fuel Line * 1 40 Micron Fuel Filter Kit * 1 300 LPH Fuel Pump Kit* 1 Fuel Filter Mounting Bracket * 2 6AN to M12*1.5 Fitting * 1 6AN to M18*1.5 Fitting * 1 6AN AN Hose End 0º * 8 6AN AN Hose End 90º * 2 6AN Fitting Plug * 1

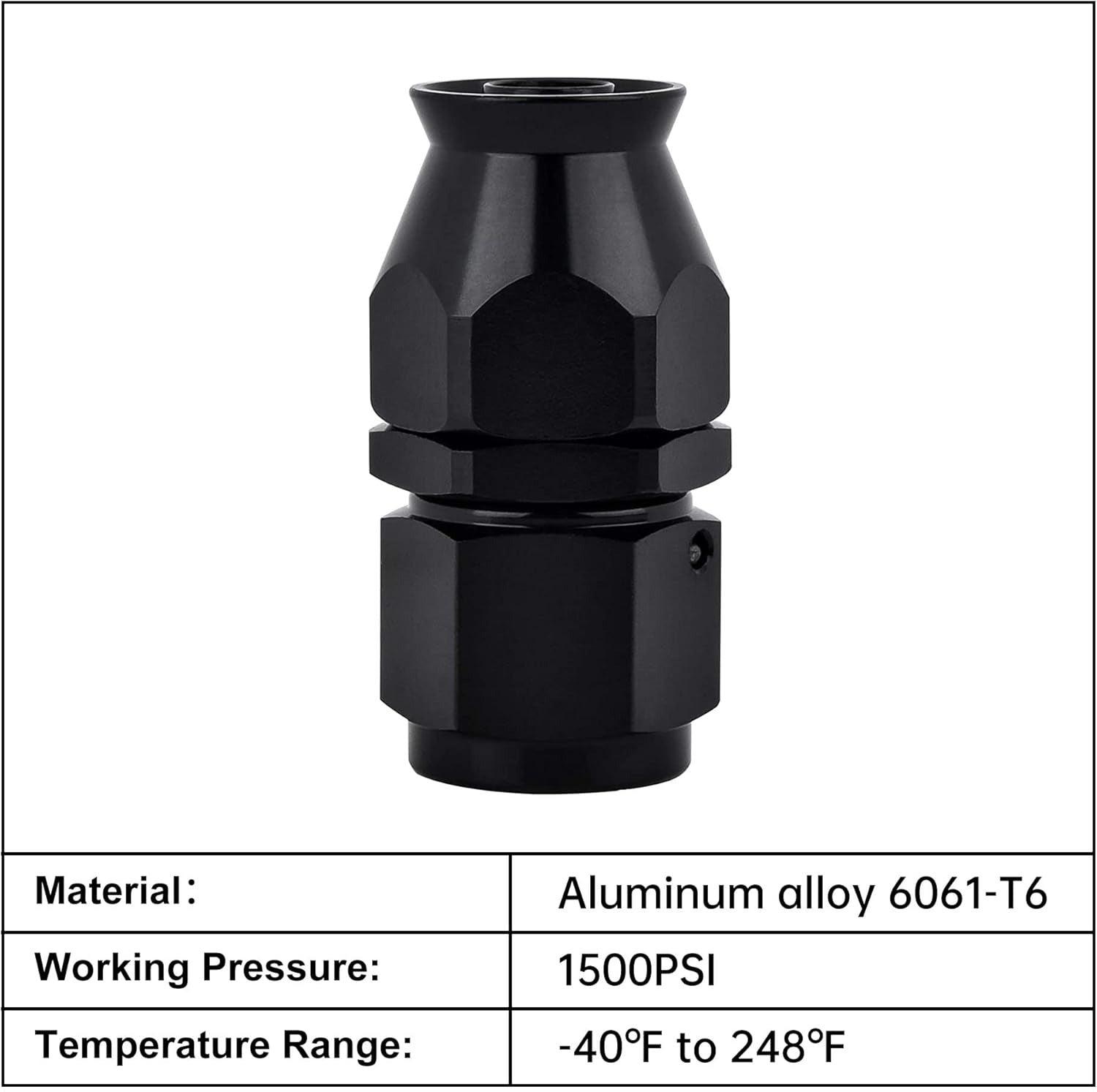

Option 2: PTFE Hose Kit 6AN 20FT PTFE Fuel Line * 1 20-120PSI Fuel Pressure Regulator * 1 40 Micron Fuel Filter Kit * 1 300 LPH Fuel Pump Kit* 1 Fuel Filter Mounting Bracket * 2 6AN to M12*1.5 Fitting * 1 6AN to M18*1.5 Fitting * 1 6AN PTFE AN Hose End 0º * 8 6AN PTFE AN Hose End 90º * 2 6AN Fitting Plug * 1 |
Product Description
High-Quality Fuel Lines

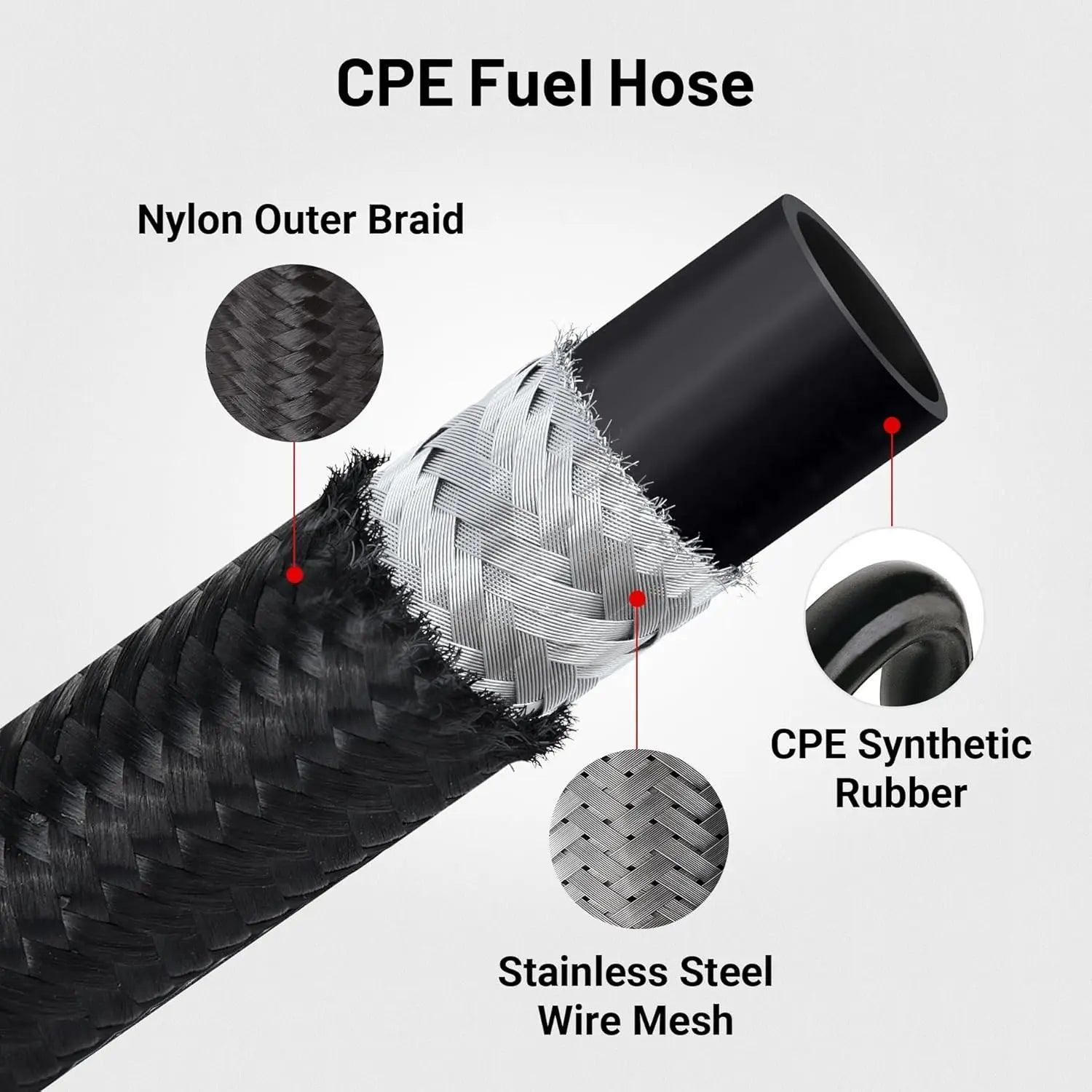

- CPE Kit: Versatility. The CPE kit is not only cost-effective but also offers a broad compatibility range with various fuels, excluding E85. It's an excellent choice for applications where chemical resistance is crucial without the need for high-temperature endurance.

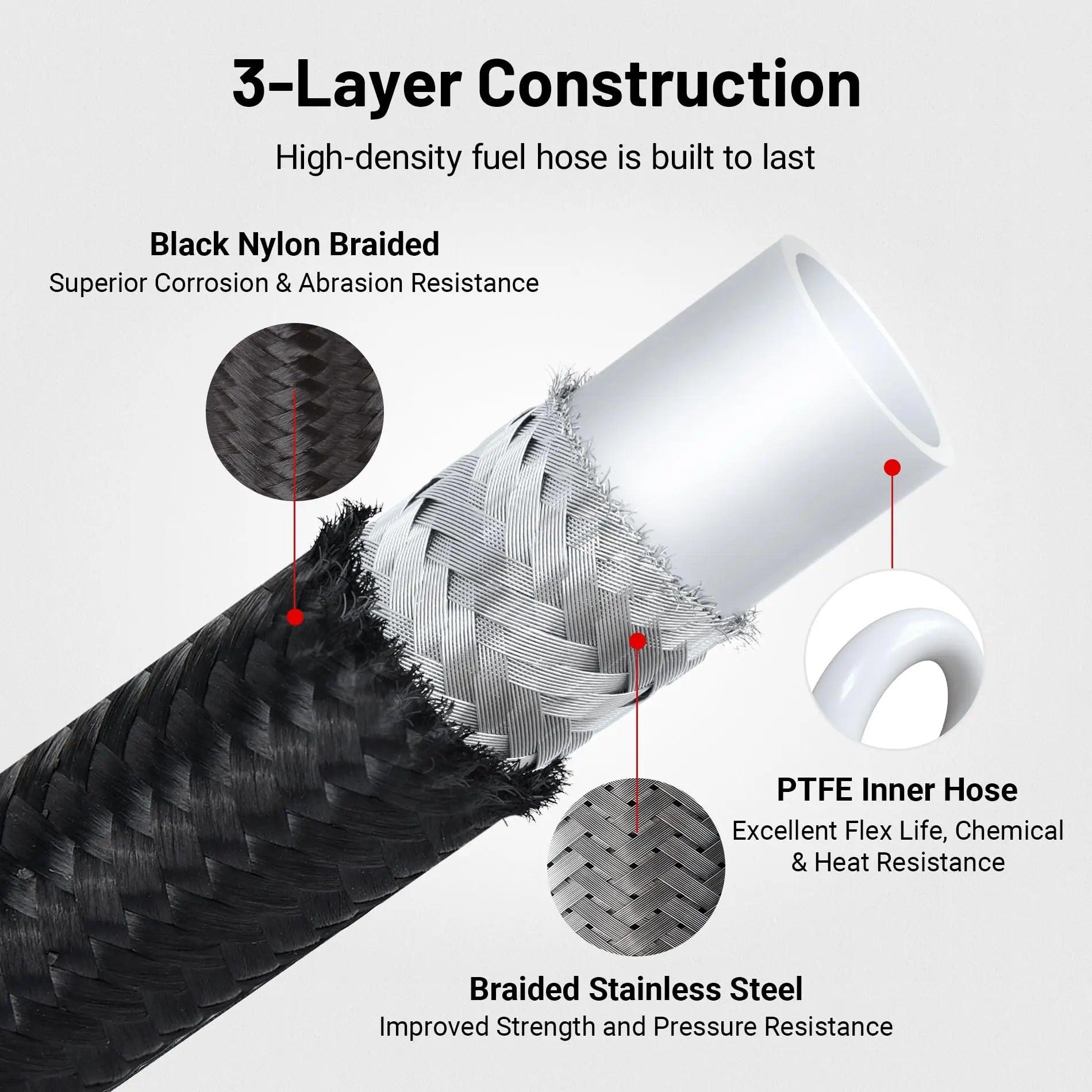

- PTFE Kit: High-Temperature Tolerance. With its ability to withstand extreme temperatures, the PTFE kit is the go-to solution for high-performance engines and aggressive fuel types, such as E85. It ensures the safety and stability of your fuel system even under the most demanding conditions.

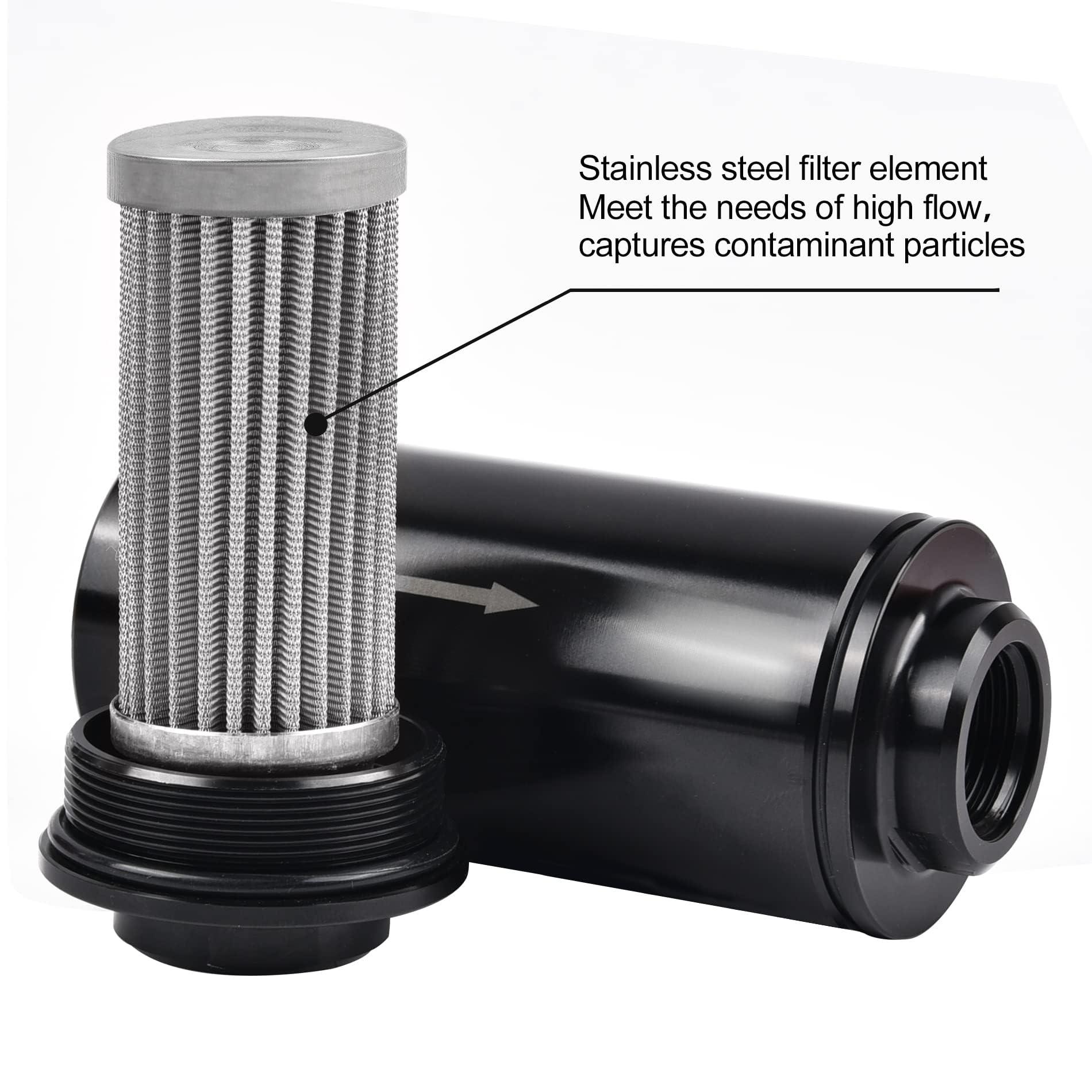

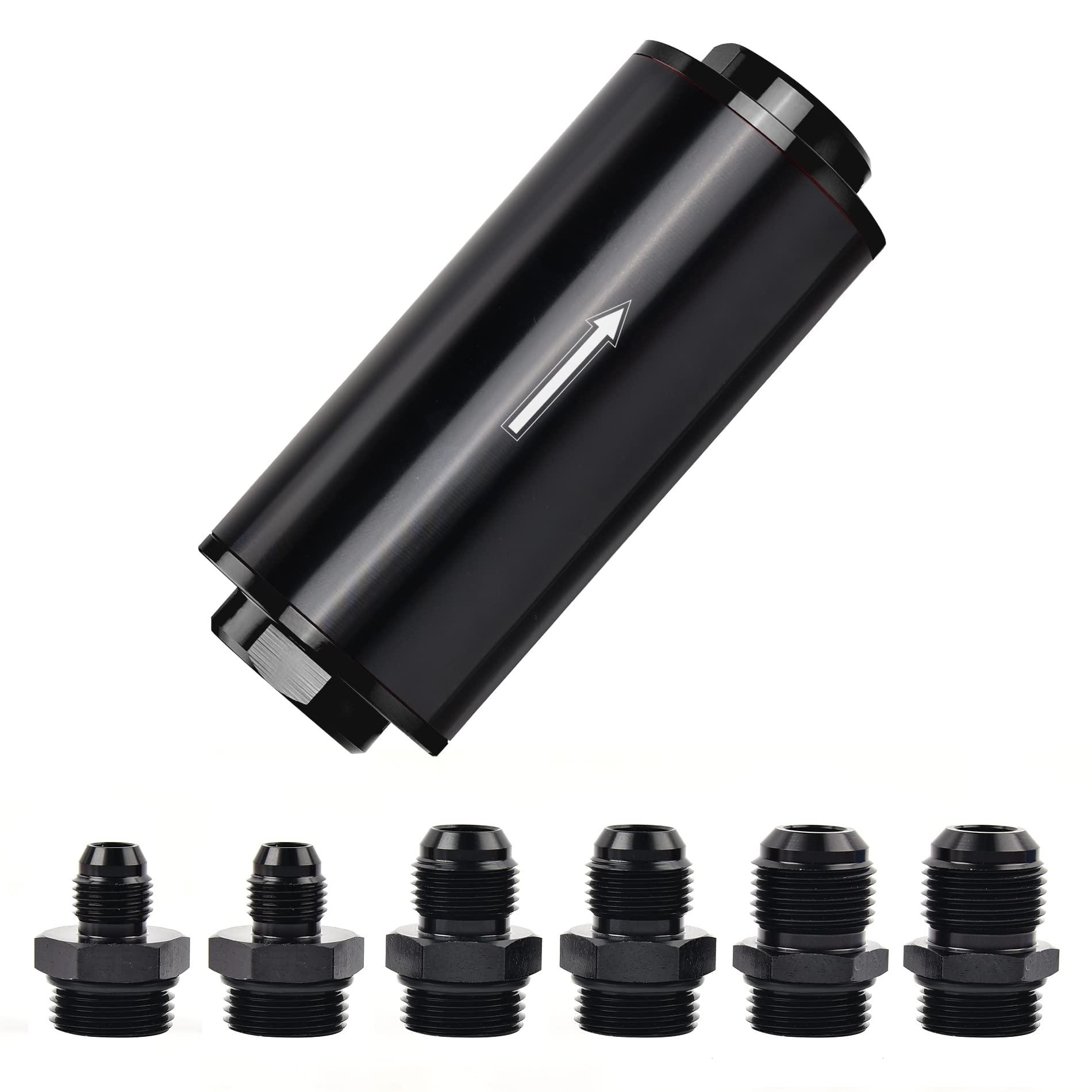

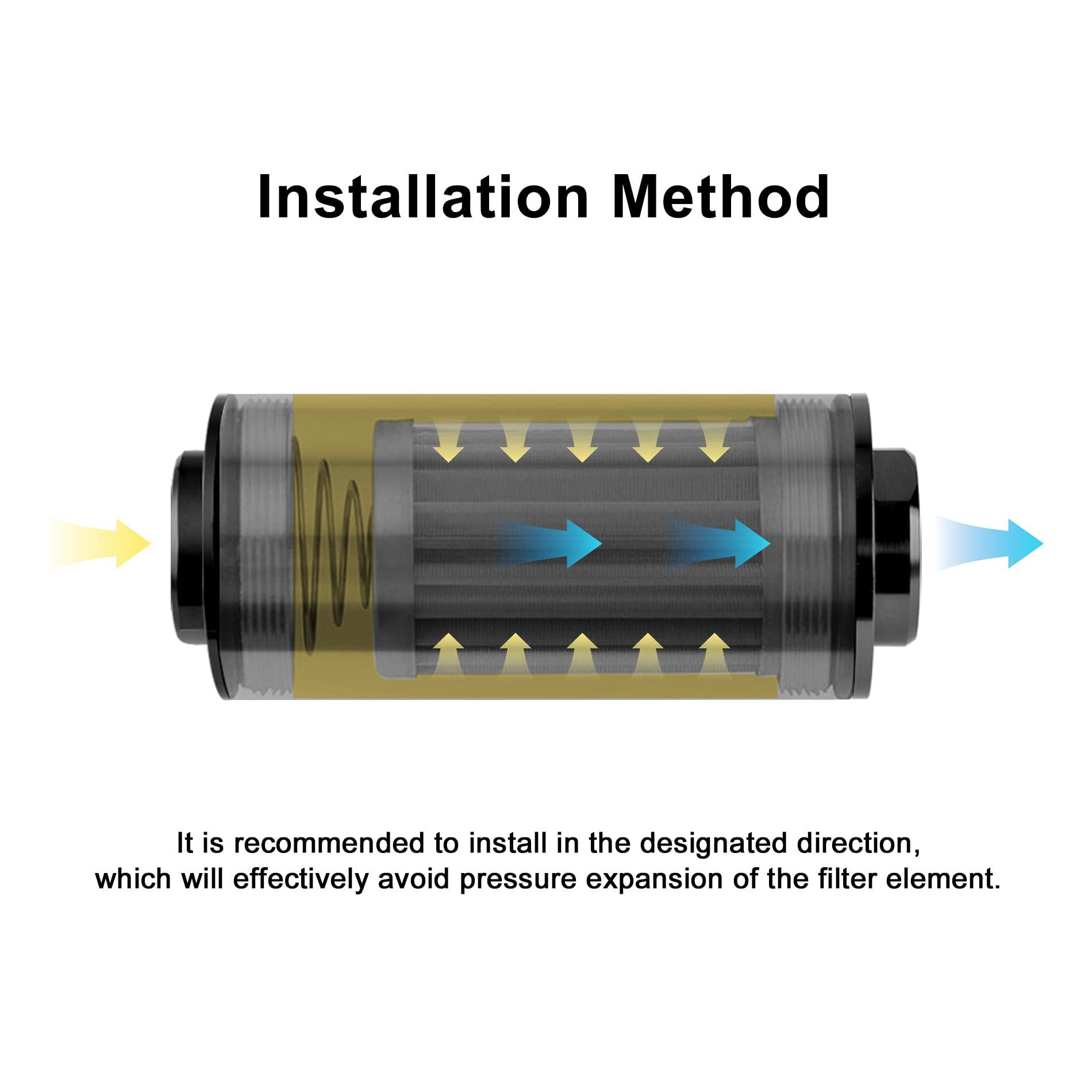

Inline Fuel Filter

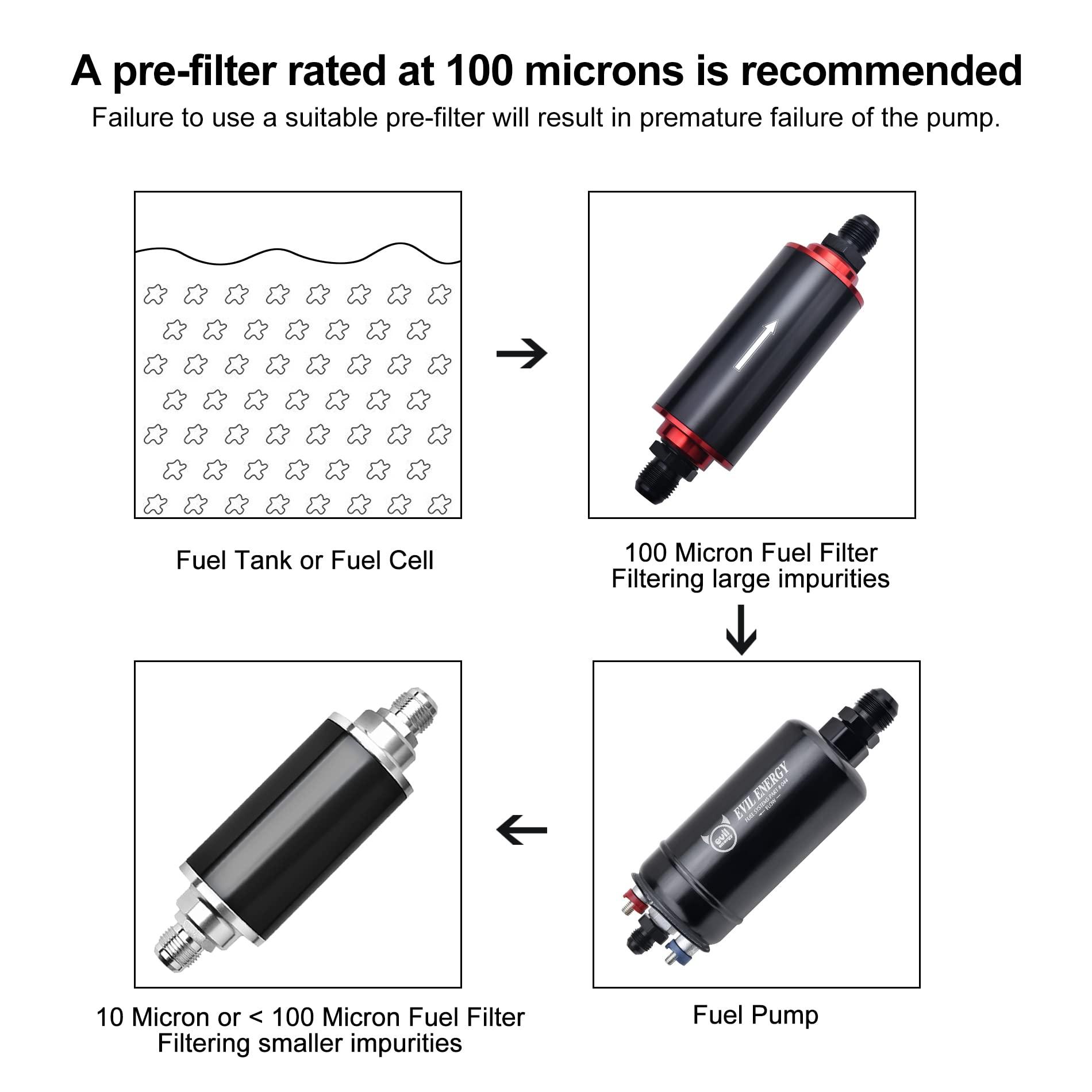

- A universal filter that includes adapters for AN6, AN8, and AN10. It captures contaminants of 40 microns and above, ensuring your fuel system stays protected. The removable design makes cleaning or replacing the filter easy.

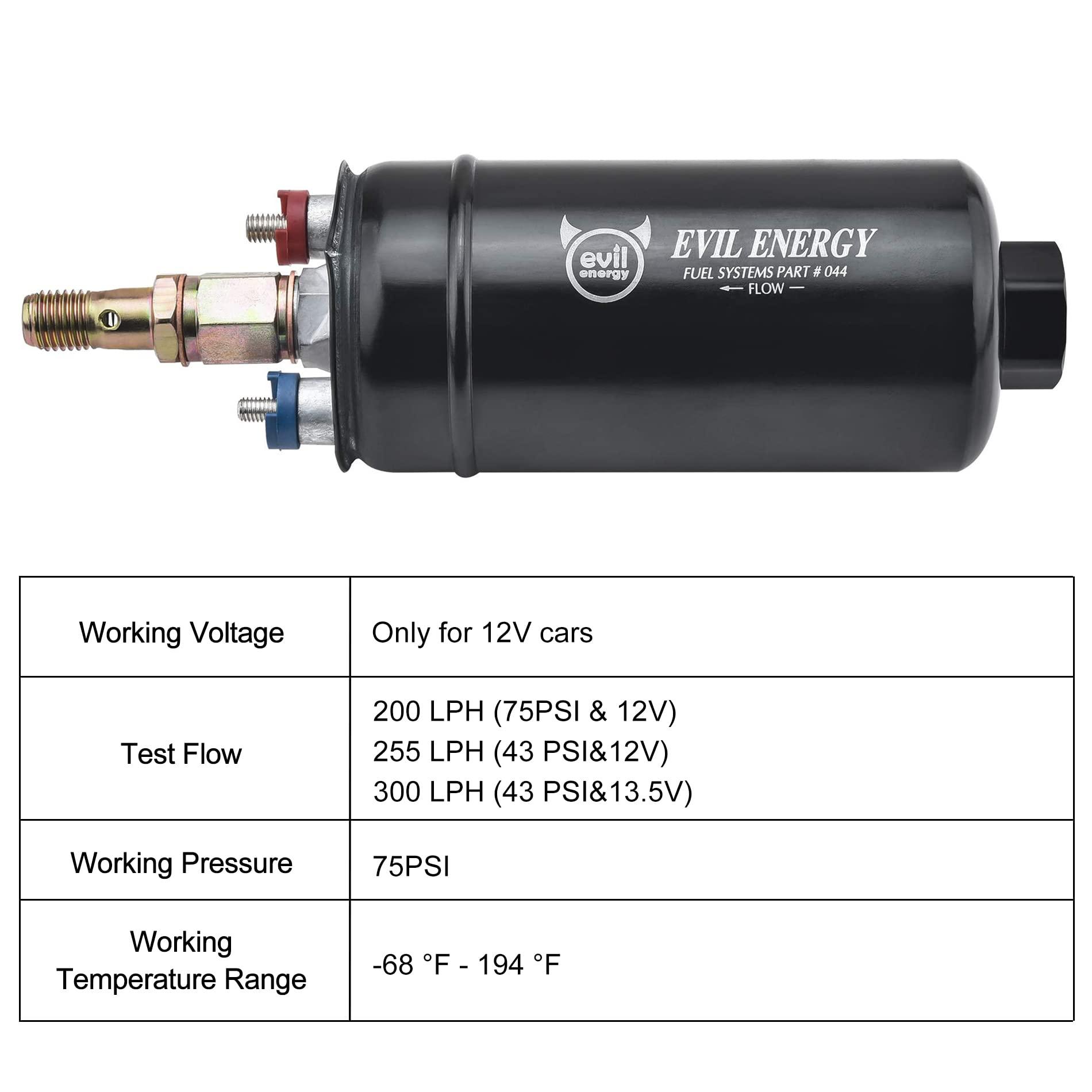

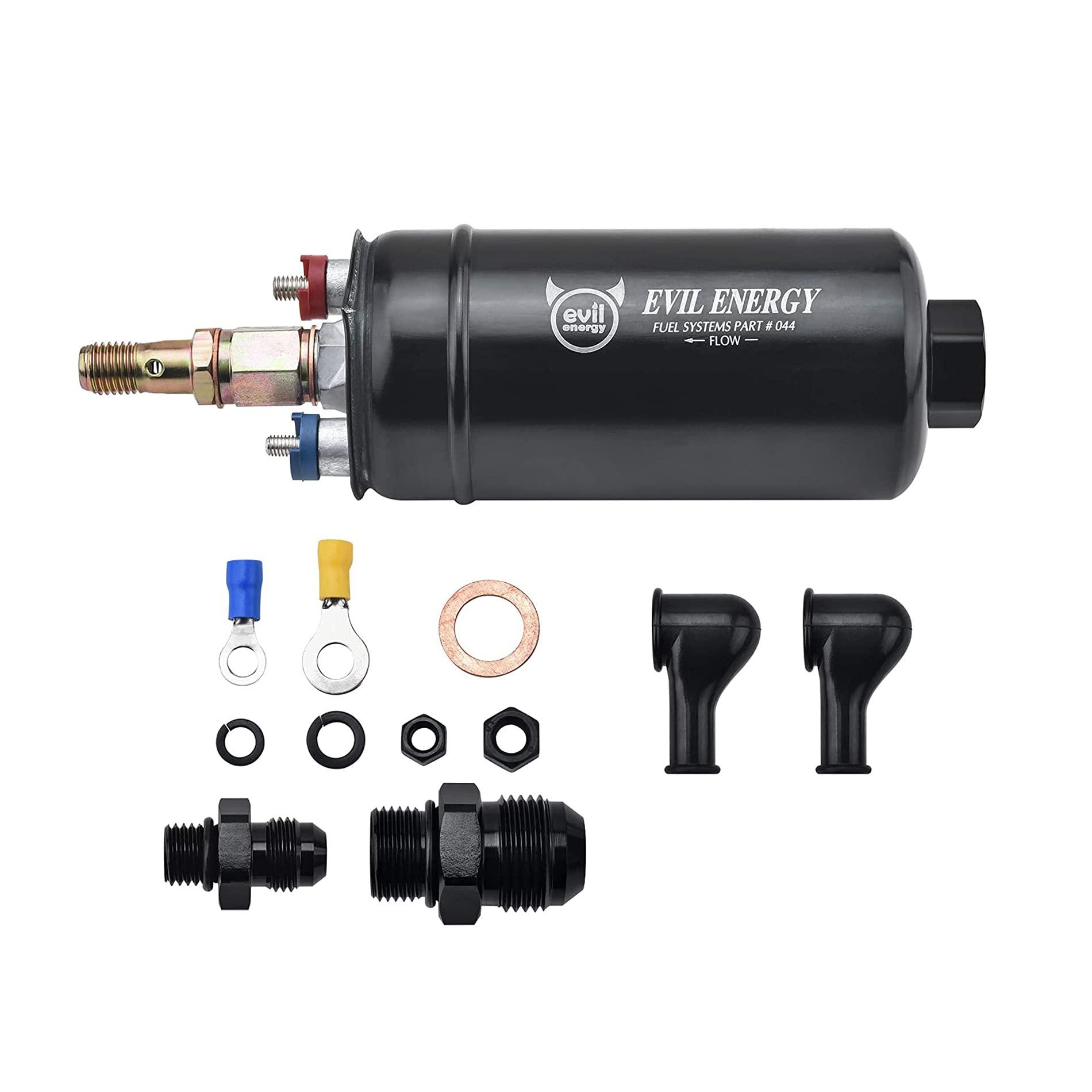

External Inline Fuel Pump
- Designed for 12V DC EFI systems, this pump is compatible with gasoline, diesel, E85, and more. Installing it below the tank ensures gravity-fed fuel delivery. Installation instructions included.

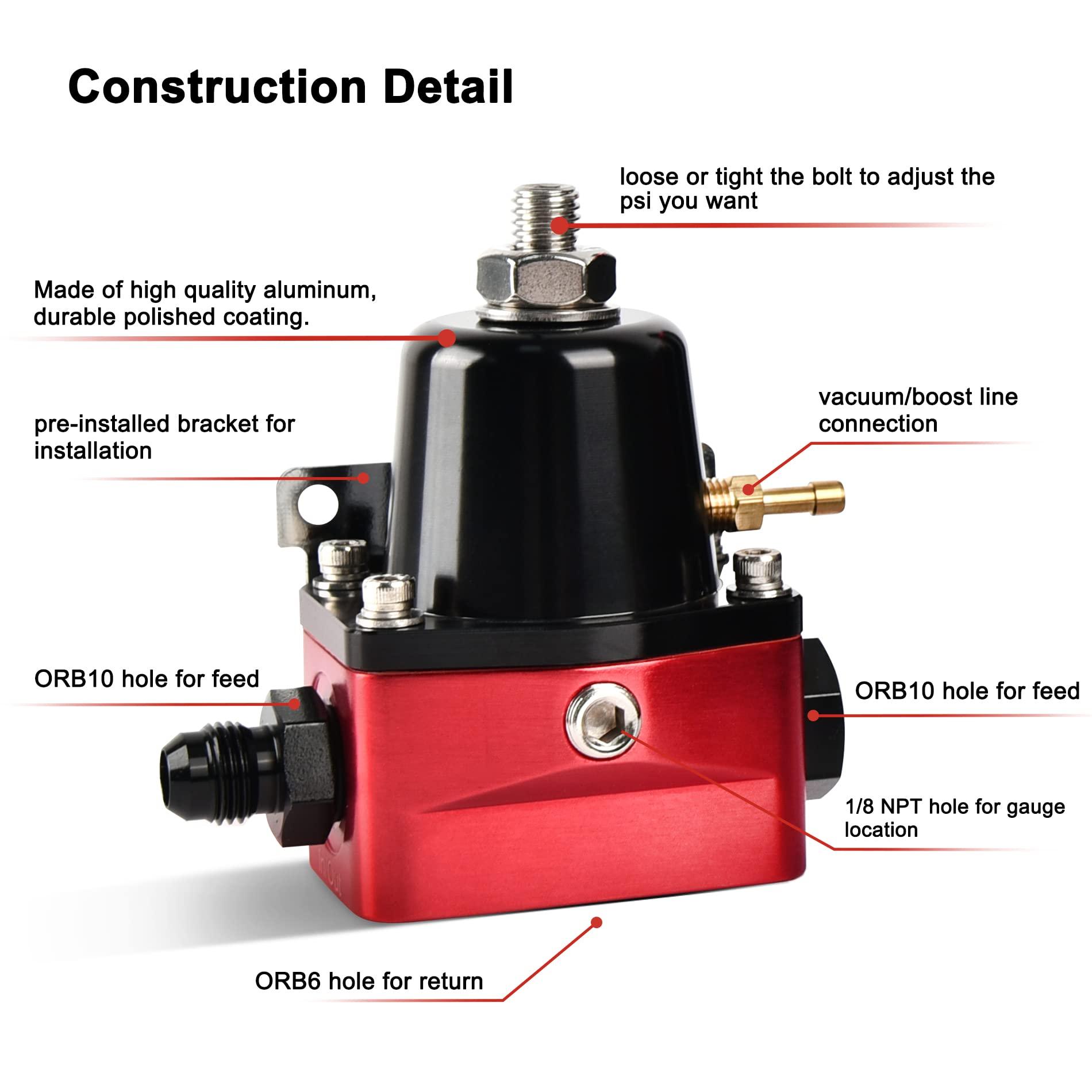

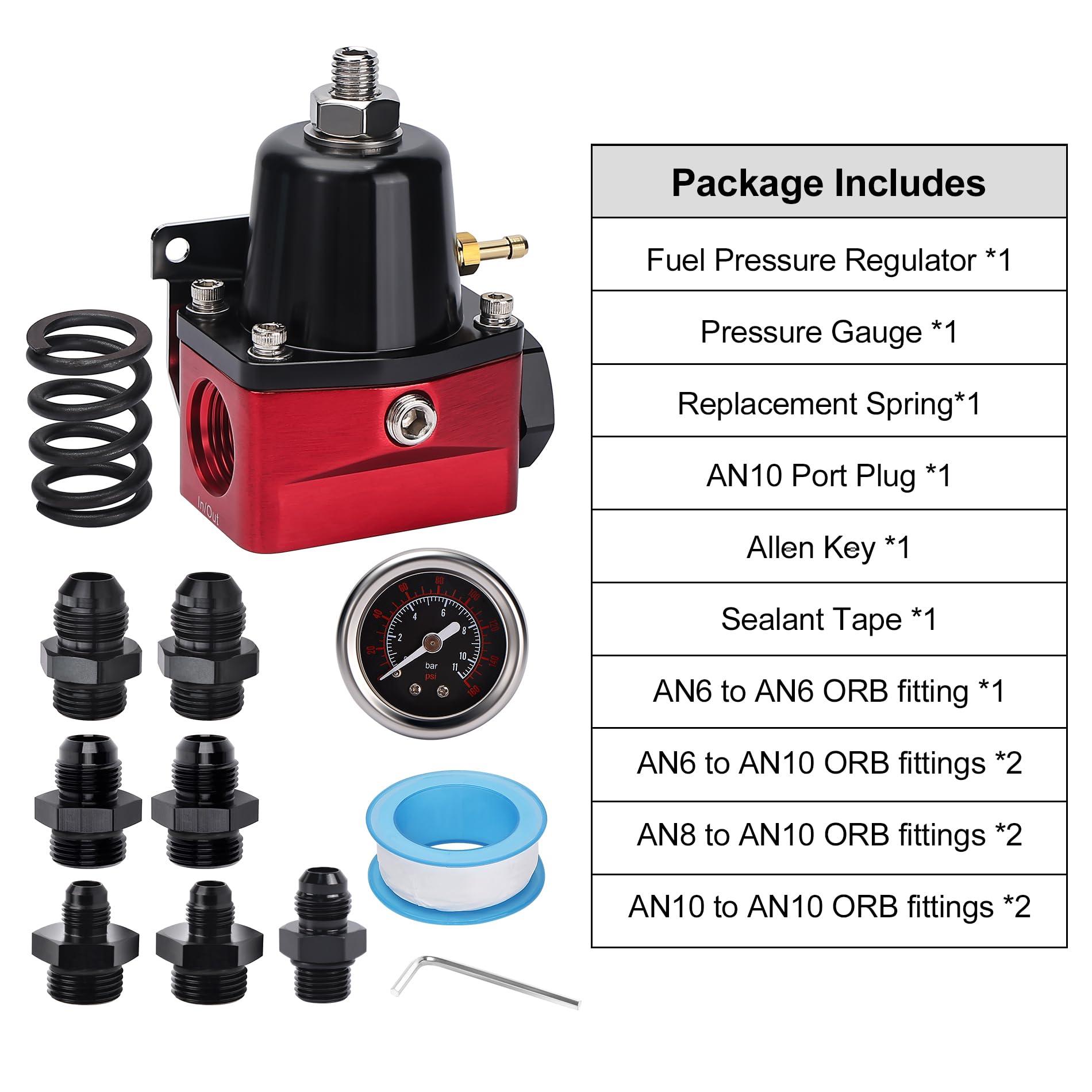

Fuel Pressure Regulator
- This adjustable regulator fits most EFI systems and works with gasoline and E85. When installing, use thread sealant tape on the NPT pressure gauge port for a secure fit.
Usage Scenarios
- LS Swaps: Perfect for those upgrading to an LS series engine, these kits provide the necessary components for a reliable and high-performance fuel system.
- High-Performance Tuning: For vehicles requiring increased fuel delivery and pressure stability, our kits offer a robust solution.
- Industrial and Chemical Applications: The kit's chemical resistance makes it suitable for industrial settings where fuel lines may come into contact with corrosive substances.
- Automotive and General Applications: Beyond performance tuning, these kits are versatile enough for everyday automotive use and general fluid transportation needs.
Choose the right kit for your needs and enjoy the peace of mind that comes with a high-quality, reliable fuel system.
Why Choose Evil Energy?
Elevate your vehicle’s performance with our top-tier fuel system components, including fuel lines, fittings, adapters, filters, fuel pumps, pressure regulators, and catch cans.
Specifically engineered for Cadillac, Chevrolet, GMC, Hummer, and Pontiac LS V8 engines (2007-2015), our products ensure seamless integration and hassle-free installation.
We prioritize quality control, ensuring each component meets rigorous standards for perfect fitment and durability, effectively addressing common fuel system challenges faced by car enthusiasts.
- Enhanced Performance: Our products boost efficiency and power for your modified engine.
- Professional Grade: Ideal for serious modifiers seeking reliable and high-performance upgrades.
-
Fast Shipping: Orders are processed within 1-2 business days for quick delivery.
-
Easy Returns: Enjoy a hassle-free 90-day return policy with free return shipping (Requires no use or installation, packaging intact). 90-180 days will be charged a 15% operating fee.
-
Warranty: EVIL ENERGY provides 1-year warranty on this kit. For questions, reach out to us via email.
