V Band Clamp

V-band clamps are used to join two flanged pipe ends quickly and create a tight, leak-resistant seal. They are most common in exhaust systems, especially on turbo setups: turbo outlets, downpipes, mid-pipes and intercooler piping. Compared with traditional bolted flanges, a V-band clamp makes connections easier to assemble and remove, which is ideal for tuning, servicing and tight engine bays. A v-band clamp for turbo applications is popular because it handles heat cycling and allows the turbo or downpipe to be separated without cutting or unbolting multiple fasteners.

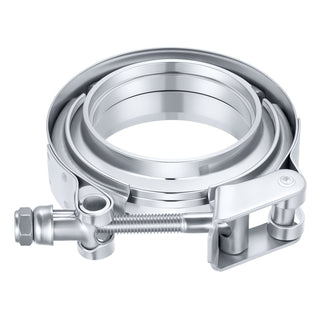

The clamp itself is not welded, but the V-band flanges are. A V-band connection has two parts: a pair of V-band flanges (male and female) and the clamp that pulls them together. The flanges are normally TIG-welded to the pipe ends, which is why a v-band clamp flange is sold separately or as part of a kit. Some bolt-on or “weld-free” adapter styles exist, but for exhaust, turbo and downpipe use, welded stainless or mild steel flanges are the standard and most reliable method.

A：Tighten the clamp until it is snug and evenly seated, then torque the V-band clamp bolt to the manufacturer’s specification. Typical values for common T-bolt style exhaust clamps are around 5–8 ft-lb (7–11 Nm) for lighter clamps, and some heavy-duty types use more, so always check the maker’s spec. Installation steps:

1. Line up the two flanges with the gasket or sealing ring (if used).
2. Place the clamp over the flange lips with the T-bolt at an accessible position.
3. Tighten the nut by hand, then tap around the clamp circumference with a rubber mallet to seat it evenly.
4. Torque to spec, then re-check after a heat cycle.

Over-tightening can distort the flange or damage the clamp; under-tightening causes exhaust leaks.

V-band clamps are sized by the outer diameter (OD) of the pipe or flange they fit, not by the inside diameter. Common sizes include 2.5 inch, 3 inch, 3.5 inch, 4 inch and 5 inch. To size one correctly:

1. Measure the OD of the pipe the flange will be welded to (this gives the pipe size, e.g. 3 inch).
2. Match that to the flange size, since a “3 inch v band clamp” is designed for a 3 inch flange assembly.
3. Confirm the clamp style matches the flange profile (standard, turbo-specific or Vibrant-style flanges are not always interchangeable).

If you are connecting to a turbo outlet or downpipe, also check the turbo manufacturer’s flange dimensions, since turbo V-band flanges are often non-standard.

For complete measuring guidance, read our guide on how to measure v‑band clamp.

Yes, quality V-band clamps are considered one of the best joining methods for exhaust and turbo systems. They give a strong, even clamping force, seal well, and make removal easy, which is why they are standard in motorsport. Reputable brands such as Vibrant are popular, while cheap, thin clamps may stretch or fail under heat and vibration. For high-boost or racing use, many builders add safety wire through the clamp bolt or around the clamp as a backup so it cannot fall off if the nut loosens. Look for stainless steel construction (such as 304 stainless) and a robust T-bolt design for best results.
