About this item

• Size:

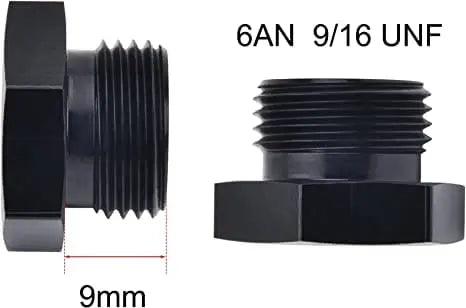

  The thread size of the AN6 hex thread plug fitting is 9/16UNF.

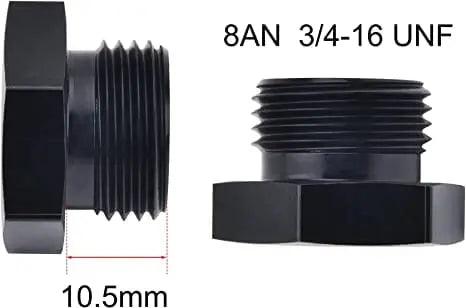

  The thread size of the AN8 hex thread plug fitting is 3/4-16 UNF.

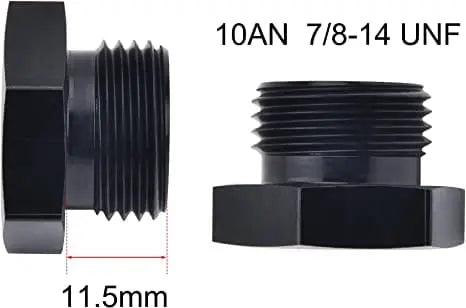

  The thread size of the AN10 hex thread plug fitting is 7/8-14 UNF.

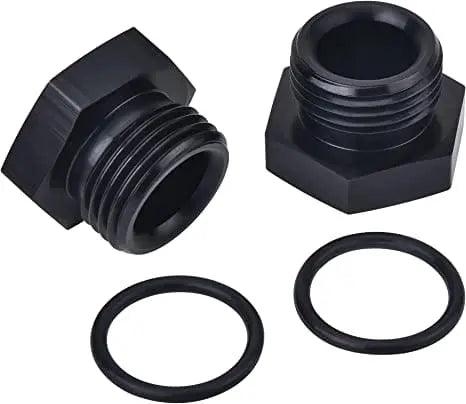

• Seal: the ORB is sealed with an O-ring.

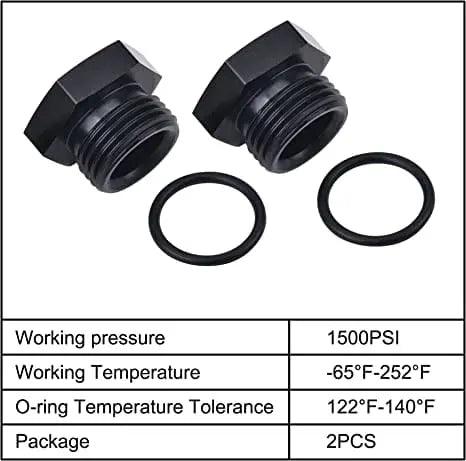

• Parameter: Working pressure: 1500psi; Working temperature: -65°F-252°F; O-ring can withstand temperature: 122°F-140°F.

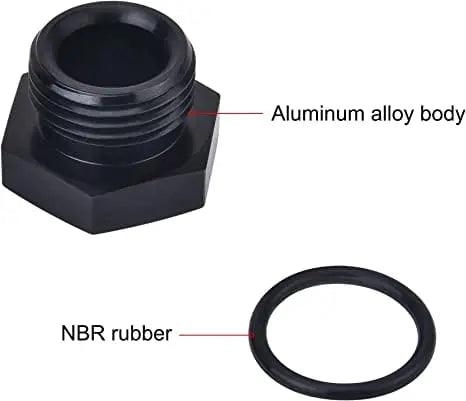

• Material: Made of aluminum alloy 6061-T6 and NBR rubber.
• Application: Widely used in fuel rail, fuel pressure regulator, radiator, etc.
