EVIL ENERGY EFI Fuel System Kit Return-Style Fuel Pressure Regulator 20-120PS CPE/PTFE Hose LineI Universal
SKU:
EVKT0202423
Product Type:
Fuel Filter Regulator Kits
- $225.99
- $225.99
$275.89- Unit price
- per
Product Details
| Brand | EVIL ENERGY |
| Application | Universal |
| Material |

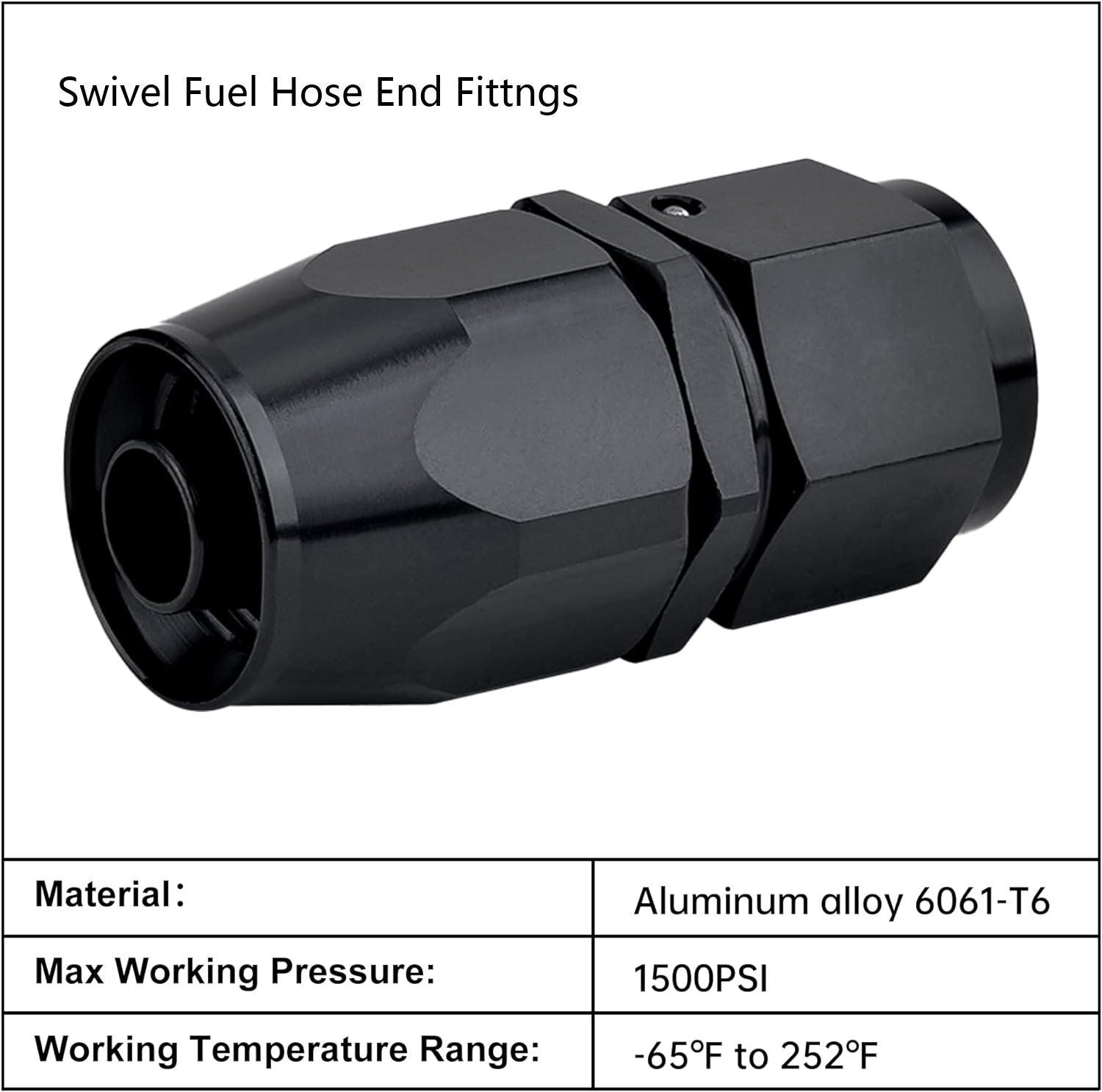

CPE Fuel hose material:Nylon, Synthetic Rubber,Stainless Steel PTFE Fuel hose material:Nylon, Stainless Steel, Polytetrafluoroethylene (PTFE) Fitting Material: Aluminum Others: Stainless Steel, Aluminum alloy |
| CPE Hose Size | 6/8AN 10FT |

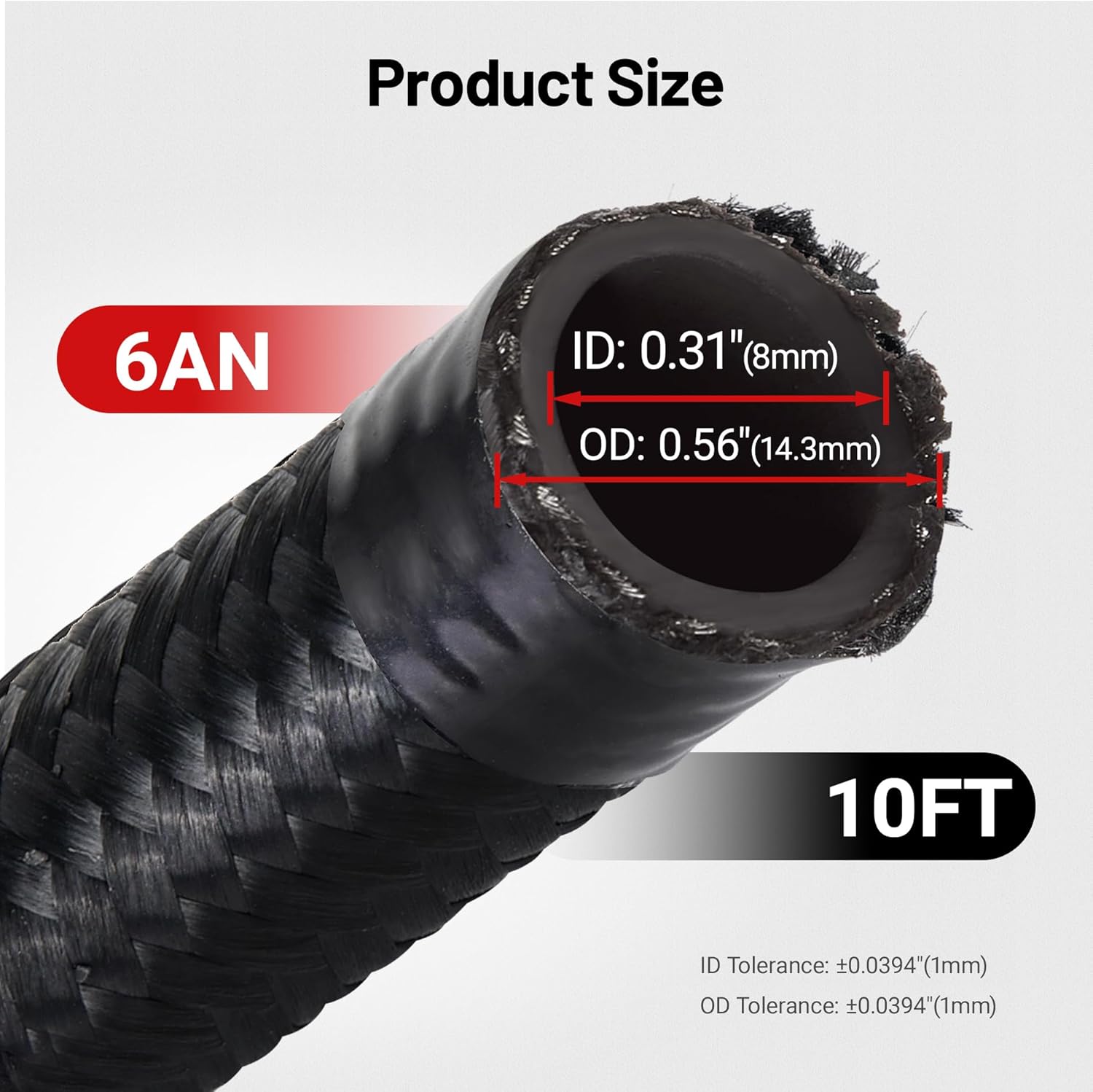

| CPE Hose ID |
6AN ID: 0.34 inch ; OD: 0.54 inch 8AN ID: 0.43 inch ; OD: 0.64 inch |
| PTFE Hose ID & OD |
6AN ID: 5/16". OD: 0.465inch. 8AN ID: 13/32". OD: 0.543inch |
| Working Pressure |
CPE:750 psi PTFE: 1500psi |
| temperature range |
CPE:-40℉ to 257℉ PTFE： -76℉ to 446℉ |
| Maximum Pressure |
CPE: 2250psi PTFE: 4500psi. |
| Adjustable Pressure Range |
20-120 PSI |

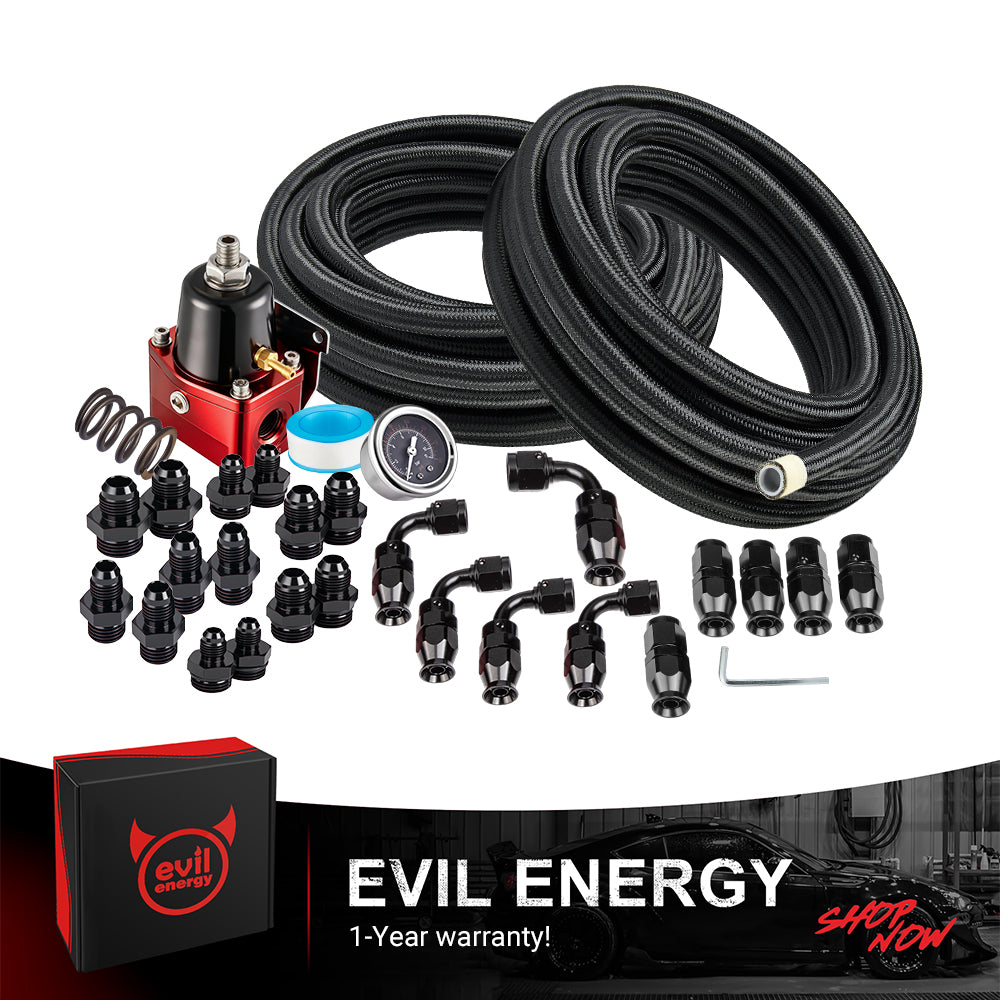

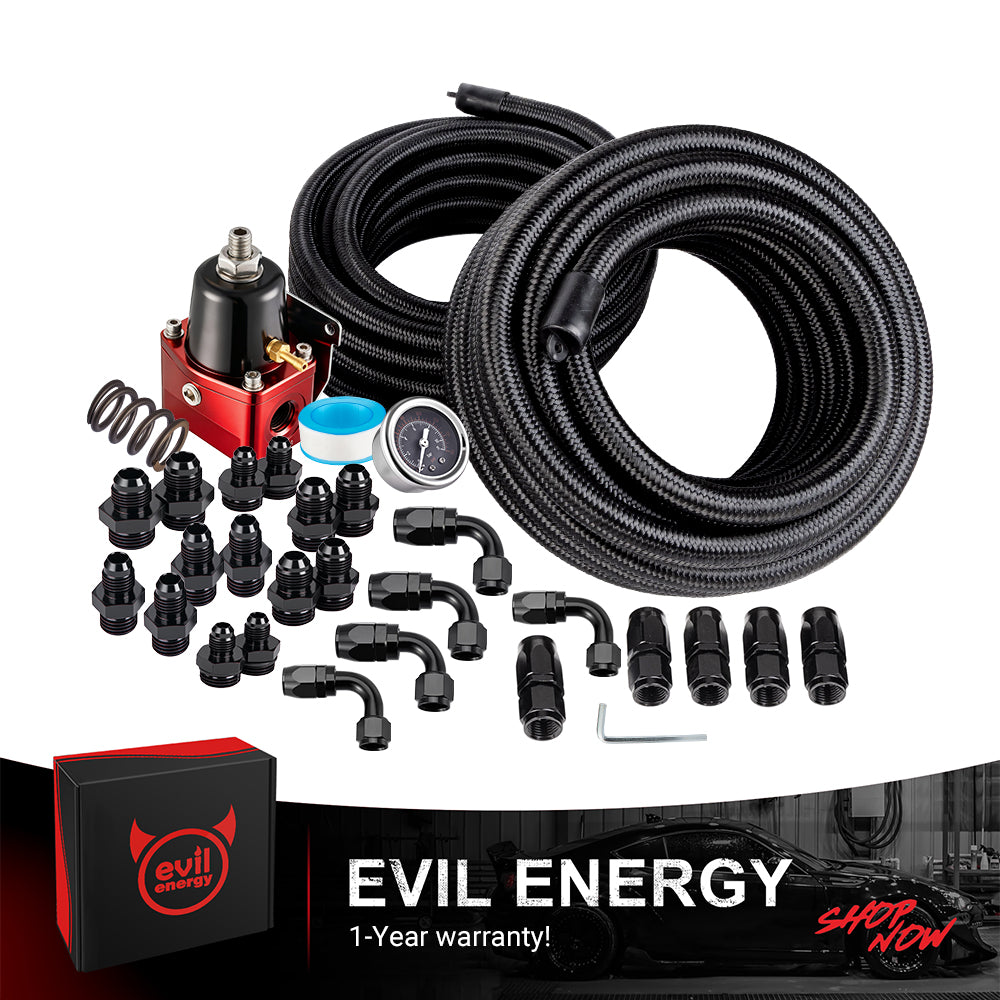

| PTFE Kit Contains |
1*20-120 PSI Fuel Pressure Regulator Mounting Kit |

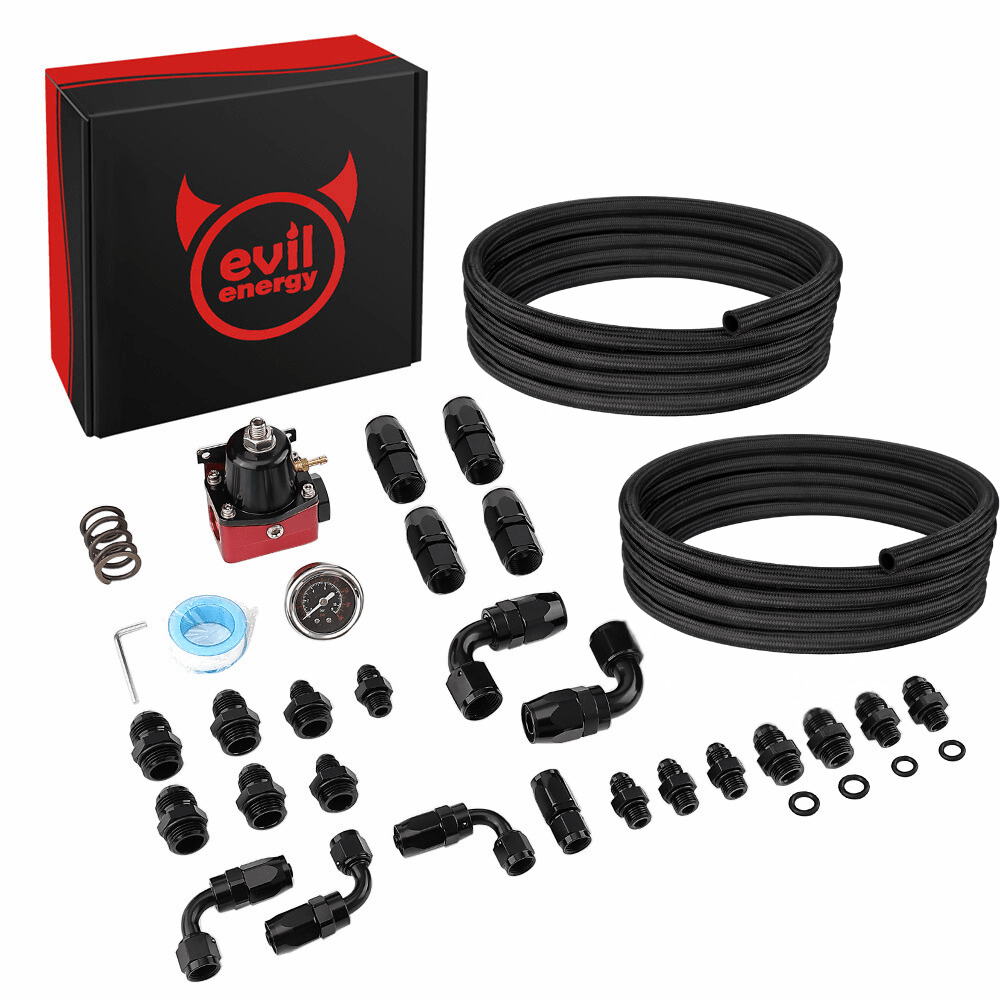

| CPE Kit Contains |
1*20-120 PSI Fuel Pressure Regulator Mounting Kit |
High-Quality Fuel Lines
-
CPE Fuel Hose: Perfect for a variety of applications including transmission oil cooler lines, fuel return lines, and coolant hoses.
- PTFE Fuel Hose: Ideal for fuel injection, boost lines, and LS swaps. Compatible with all automotive fuels and coolants.

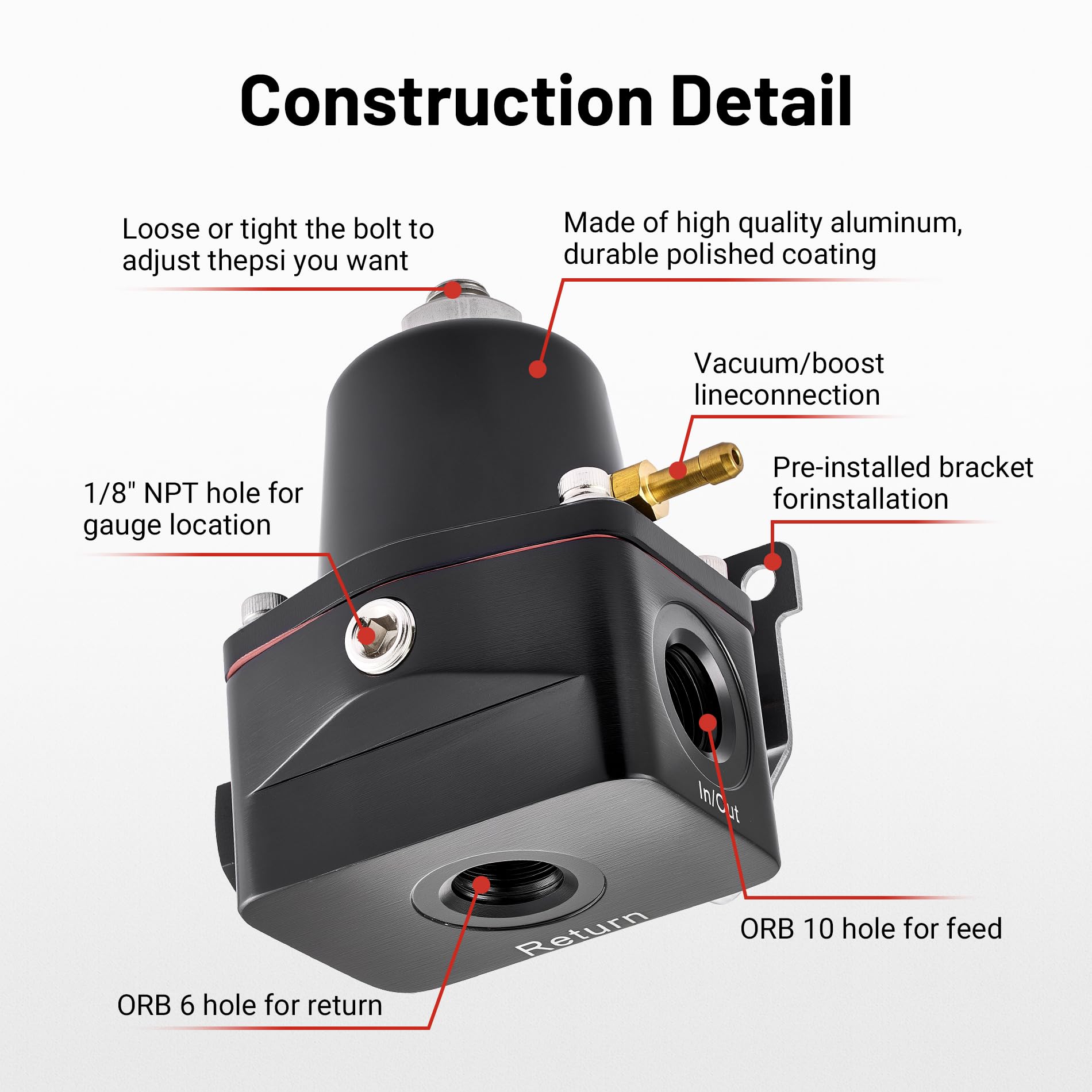

Fuel Pressure Regulator
-
This adjustable regulator fits most EFI systems and works with gasoline and E85. When installing, use thread sealant tape on the NPT pressure gauge port for a secure fit.
Features

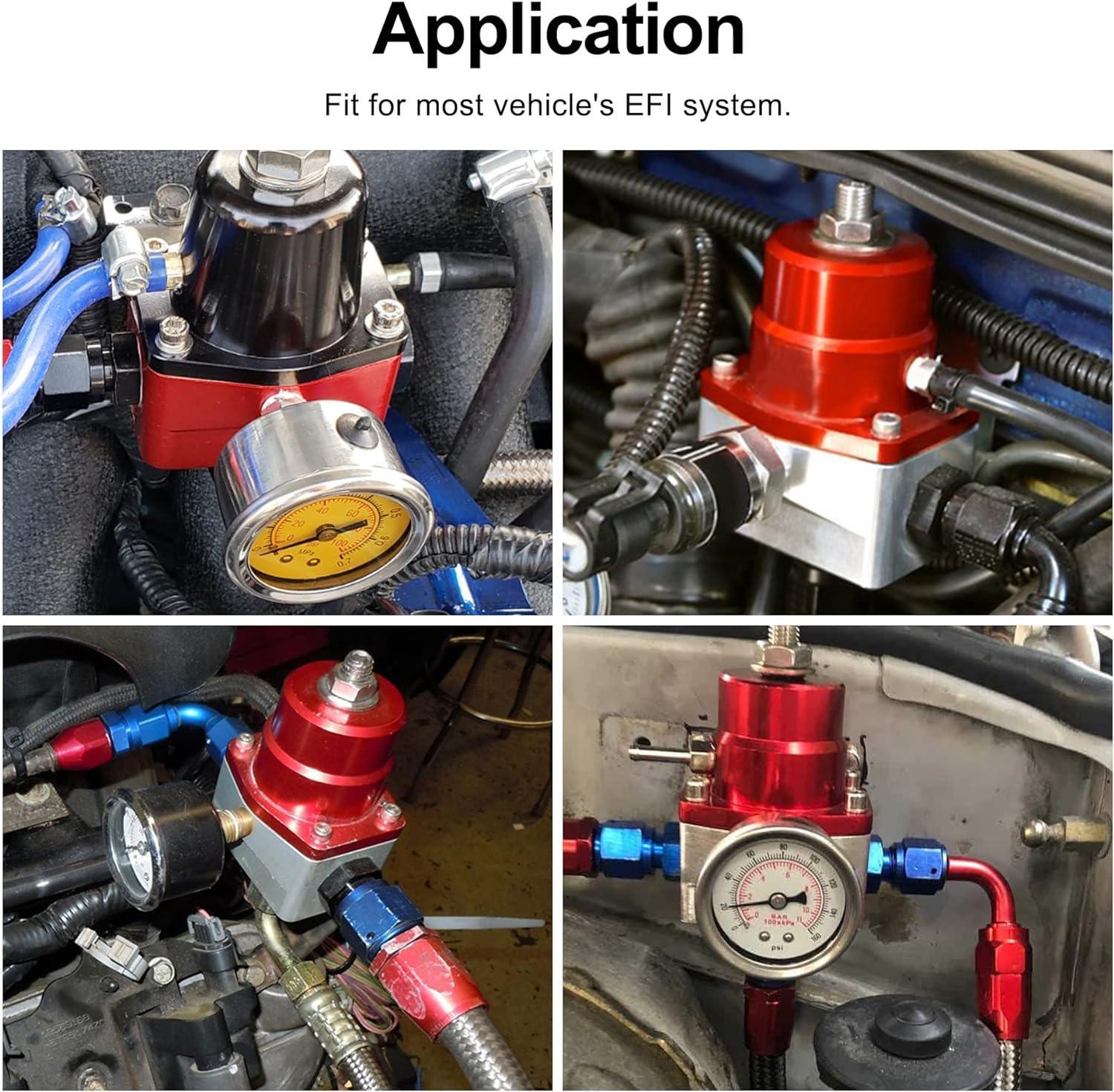

- [Application] Return-Style Fuel System Kit fits most vehicles. This kit does not include rails.Please measure your application before purchasing.

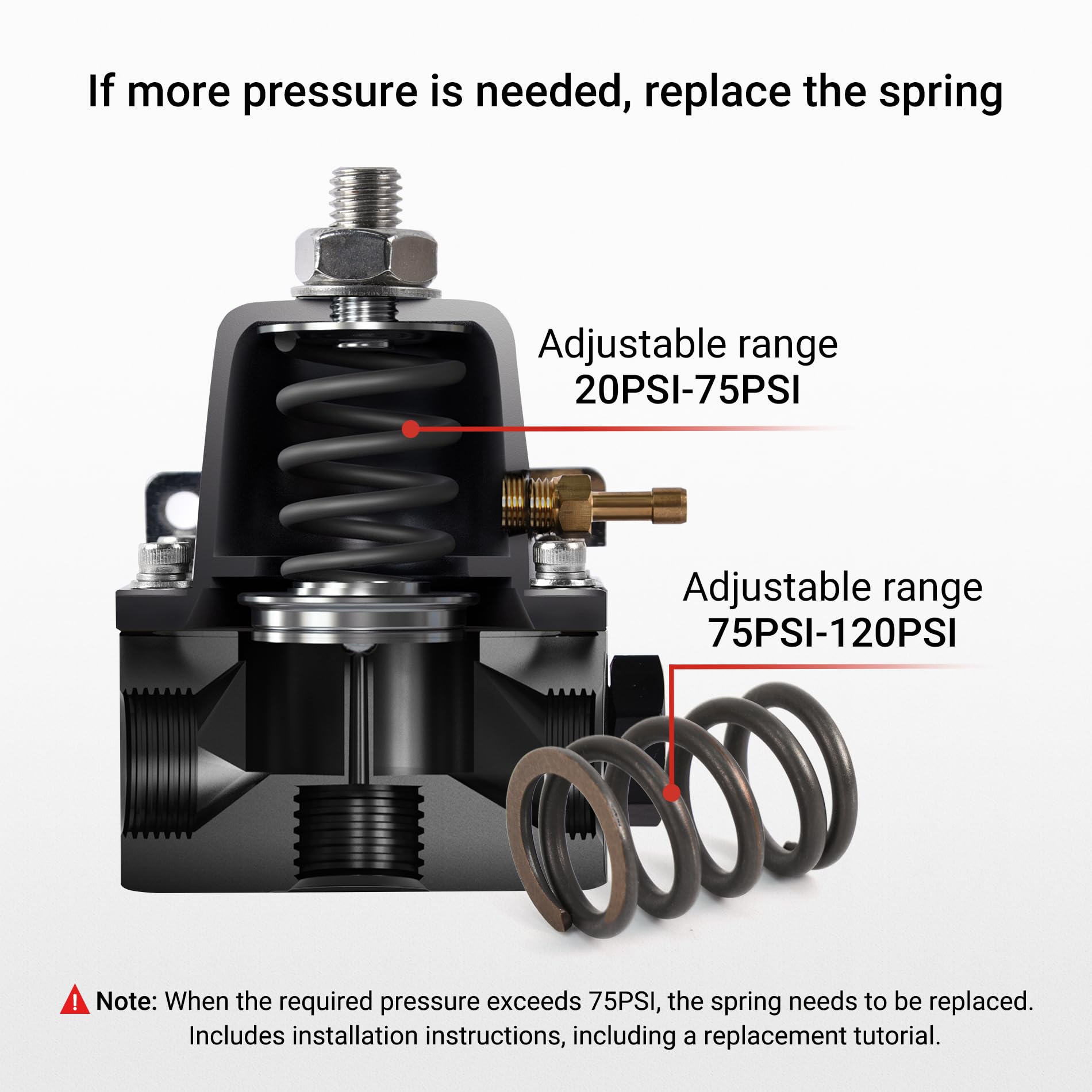

- [Wider Adjustable Pressure Range] 20-120psi pressure adjustment range. After reaching 75psi, the spring needs to be replaced to regulate a higher pressure.
- [Medium] bypass fuel pressure regulator compatible with gasoline,E85 and alcohol/ethanol, not compatible with diesel fuel. (Nylon braided fuel line is not compatible with E85.)
- [Warranty]: EVIL ENERGY provides 1 year warranty for this kit. For any questions or additional information, feel free to contact us at support@ievilenergy.com.
Installation
Prepare for disassembly before installation:
1.Cool the engine, disconnect the negative battery cable, and relieve fuel system pressure.
2. Remove the air intake ducting from the throttle body.
3. Clean any dirt around the fuel injectors.
4. Disconnect the electrical connectors at each injector.
5. Disconnect the supply and return fuel lines from the fuel rails using a special tool, and use towels to catch any fuel.
6. Label and disconnect any interfering electrical wiring, vacuum lines, and throttle body components.
7. Remove the 4 bolts attaching the fuel rail to the intake manifold.
8. Use towels to catch any spilled fuel, then gently remove the injectors and fuel rail assembly.Next you can start assembling the Return-Style Fuel System Kit.
