Engine Oil Cooler

An engine oil cooler is most useful when measured oil temperature rises beyond the engine or vehicle manufacturer’s recommended range during sustained load, such as towing, track driving, long high-RPM operation or repeated hot-weather use. It may also be appropriate when an engine modification creates additional heat, but the decision should be based on temperature data—not horsepower, engine family or appearance alone.

First rule out low oil level, blocked radiator airflow, incorrect oil, a failing factory heat exchanger or another lubrication or cooling-system fault. Adding a larger cooler can mask symptoms without correcting the cause. For a street vehicle that already maintains stable oil temperature, temperature monitoring and thermostatic control may be more important than simply installing the largest available core.

Choose the smallest core that provides sufficient cooling in the available airflow while keeping pressure drop, added oil volume and hose complexity reasonable. Consider five factors together:

• Measured oil temperature during the vehicle’s hardest normal use.
• Ambient temperature and driving duty.
• Available frontal area and unobstructed airflow.
• Physical room for the core, fittings and minimum hose bend radius.
• Added oil capacity and whether the system uses thermostatic control.

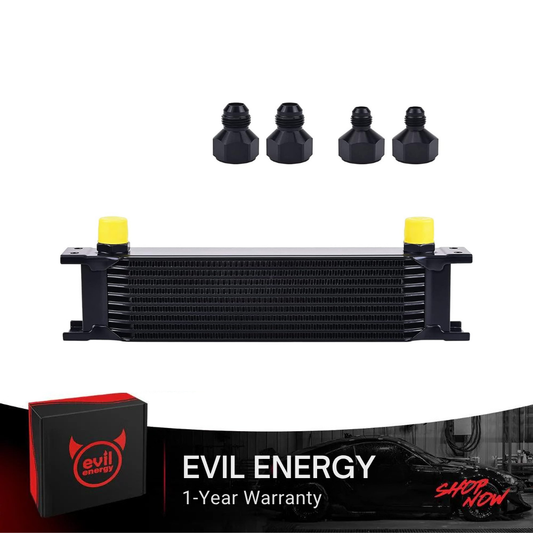

A 7- or 10-row core is easier to package, while 19-, 25- and 30-row versions require substantially more height. That does not make a larger core automatically correct for racing, towing or a high-output engine. Cooling results also depend on oil flow, hose restrictions and mounting location. If there is no reliable oil-temperature data, begin by installing or verifying a temperature sensor rather than guessing from row count.

Not automatically. “Universal” describes a component intended for custom installation; it does not confirm a direct connection to every LS engine. Fitment can change with the LS generation, vehicle chassis, oil pan, factory oil-cooler arrangement, filter position, headers and available space around the adapter ports.

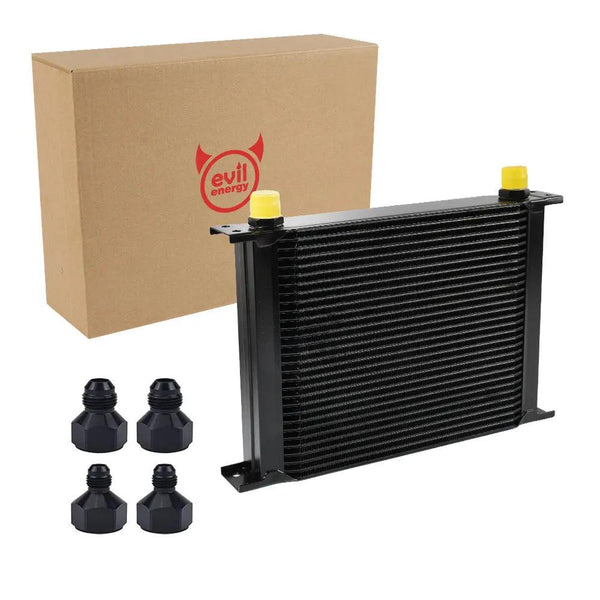

The cooler cores use 10AN connections, and the The 7–30-row stacked-plate cooler uses 10AN connections and includes reducers for 8AN and 6AN hose ends.

However, those fittings do not replace the engine-specific oil takeoff and return adapter. Before ordering, identify the exact engine, vehicle, oil pan and current oil-filter arrangement, then confirm:

• Where pressurized, filtered oil will leave and return.
• Whether the adapter fits that oil pan or filter location.
• Whether 6AN, 8AN or 10AN plumbing is appropriate for the selected adapter and engine.
• Whether the lines clear the headers, steering, suspension and drivetrain.
• Whether a factory cooler must be retained, bypassed or removed.

An LS-specific adapter may be required even when the cooler itself is universal.

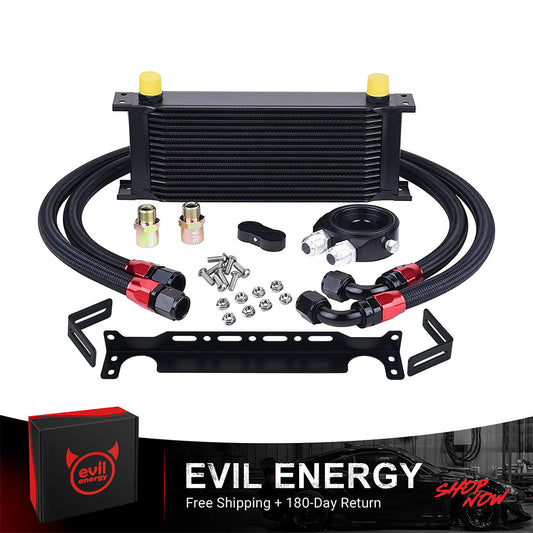

Not always. Some oil cooler kits include only the cooler core and connection fittings, while others add hoses or mounting hardware. A thermostatic sandwich plate, inline oil thermostat and vehicle-specific oil adapter may need to be purchased separately. Before ordering, confirm how oil will leave and return to the engine, then match the adapter thread, port size, hose size and thermostat opening temperature to the vehicle. “Universal” describes a custom-installation solution; it does not mean every component required for every engine is included.

A capable DIY installer can complete the job when they understand the vehicle’s pressurized oil circuit, can fabricate a vibration-resistant mount and are comfortable assembling and inspecting AN plumbing. Professional installation is the safer choice if the correct oil takeoff point, adapter compatibility, hose routing or first-start and oil-pressure checksis uncertain. A mistake can cause rapid oil loss or loss of oil pressure.

Common problems include:

• Oil leaks: often related to mismatched threads, damaged O-rings, incorrect sealing methods or fittings that were not checked after the first heat cycle.
• Low oil pressure: may result from restricted or kinked hoses, an incorrect adapter, excessive plumbing restriction, low oil level or an installation fault.
• Poor cooling: commonly caused by blocked airflow, recirculating hot air, a core mounted flat against another surface or oil that is not flowing through the cooler correctly.
• Slow warm-up or overcooling: more likely when a large core is used without suitable thermostatic control.
• Hose damage: can occur when lines contact exhaust parts, sharp edges, steering, suspension or other moving components.

Mount the cooler where it receives airflow and is isolated from vibration. Route and support the hoses without tight bends, fill or pre-oil the system as directed, establish oil pressure before normal operation, verify the final oil level, and inspect every connection both immediately and after the first complete heat cycle. Stop the engine at once if an oil-pressure warning, visible leak or sudden oil-level loss appears.
