Description

AN Size: Refers to the diameter of the fitting or hose. AN (Army Navy) sizes are standardized hose and pipe connection sizes, measured in 1/16 inch increments. For example, 4AN means the pipe&#39;s outer diameter is 4/16 inch (1/4 inch) .
Thread Size: Refers to the diameter and pitch of the thread, usually in metric or imperial units. For example, M12x1.5 means the thread diameter is 12 mm, and the pitch is 1.5 mm .

Product details

Material	Aluminum
Brand	EVIL ENERGY
Color	Black
Connector Type	Flare
Exterior	Aluminum
Thread Type	NPT
Number of Pieces	2

About this item

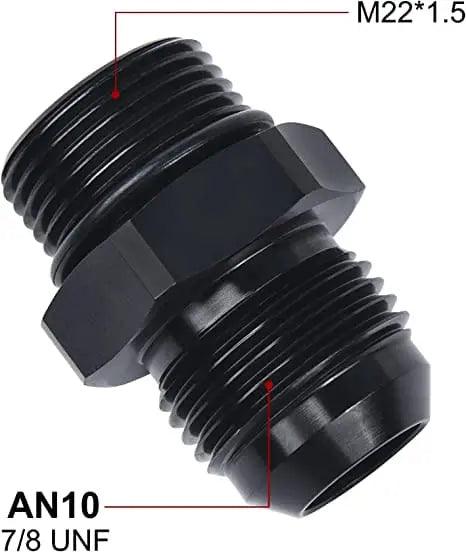

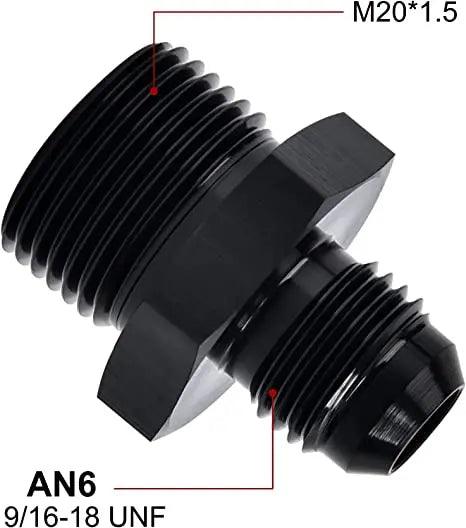

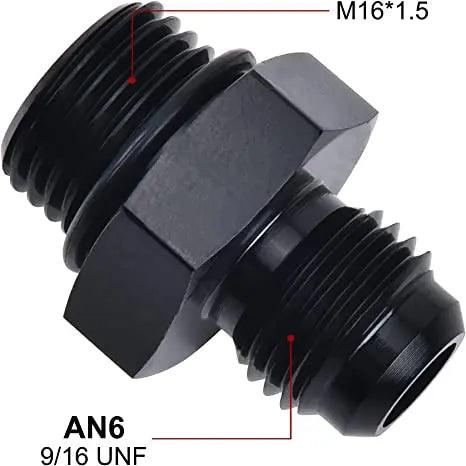

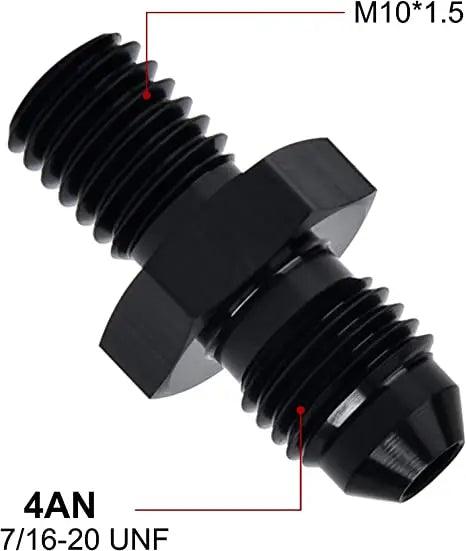

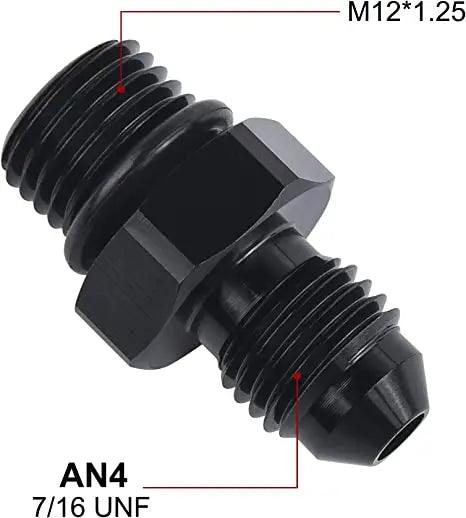

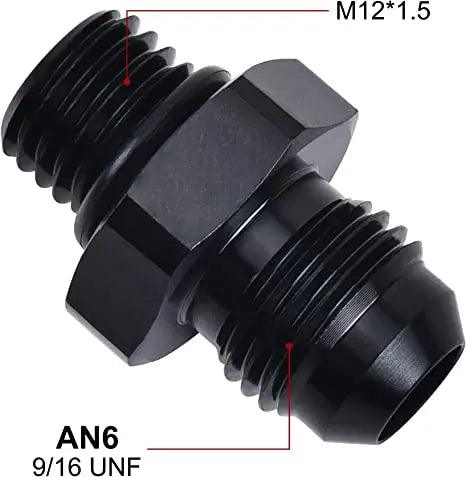

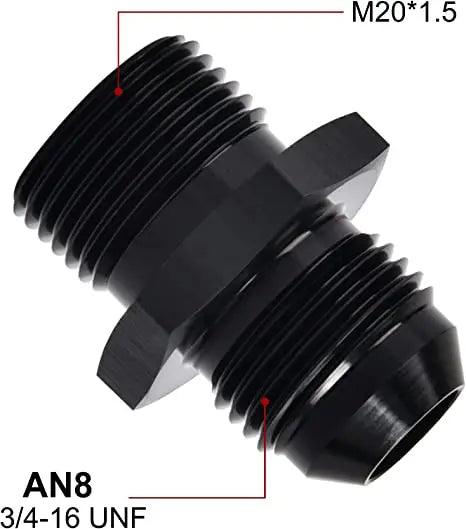

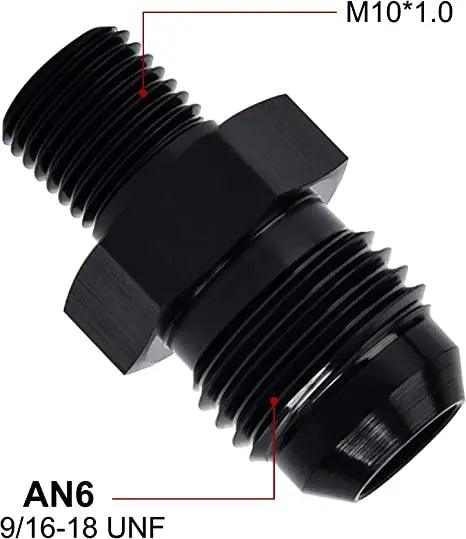

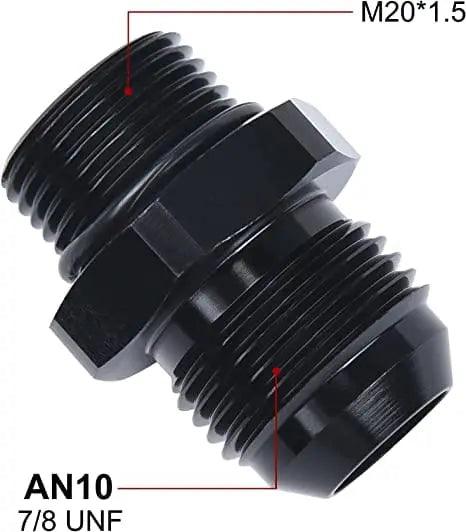

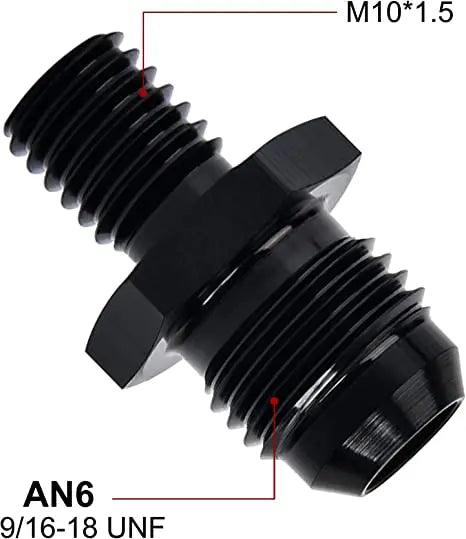

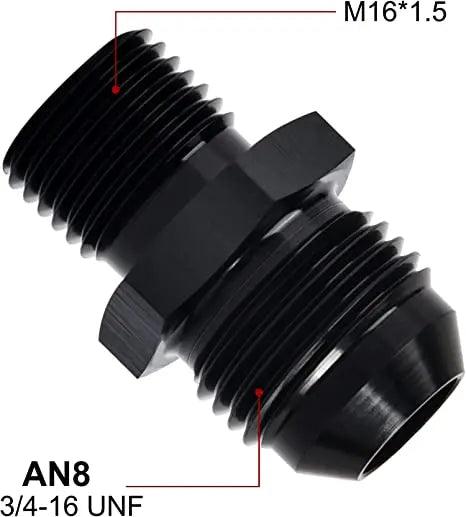

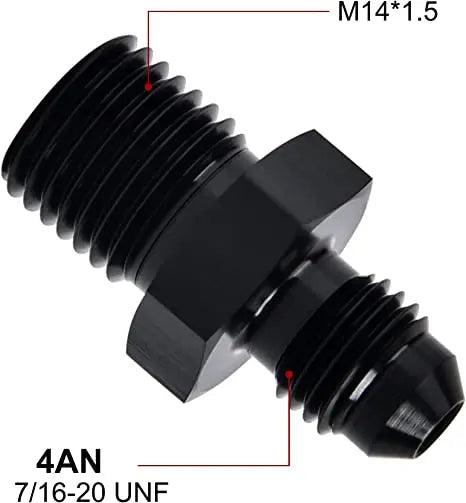

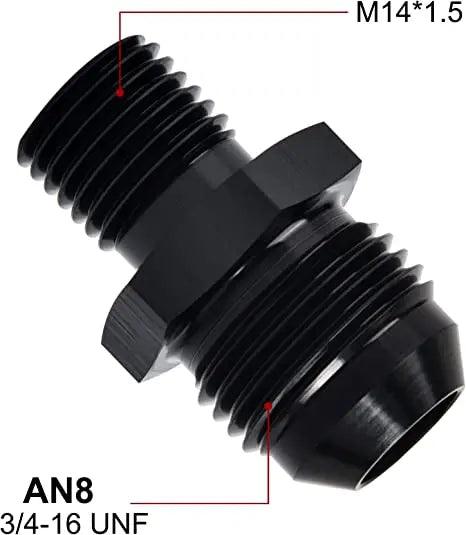

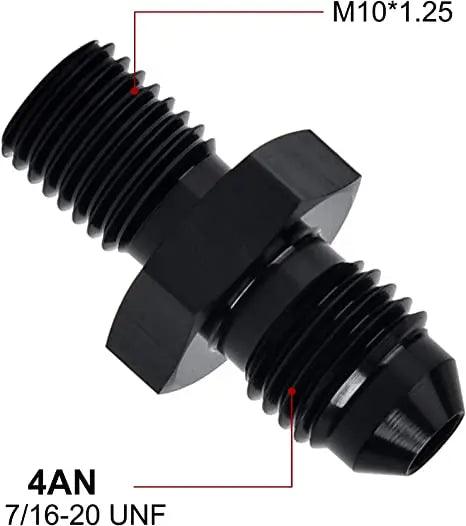

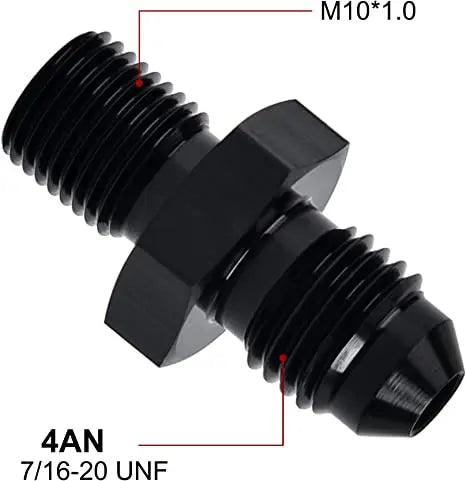

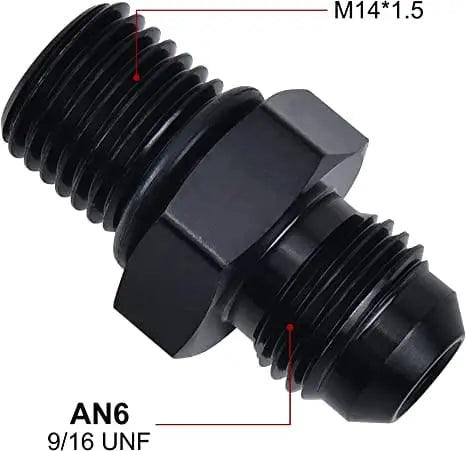

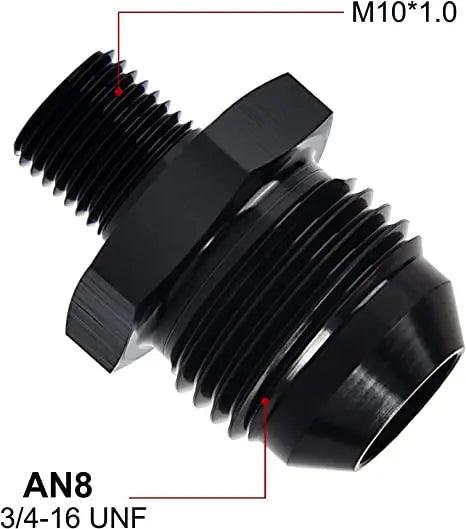

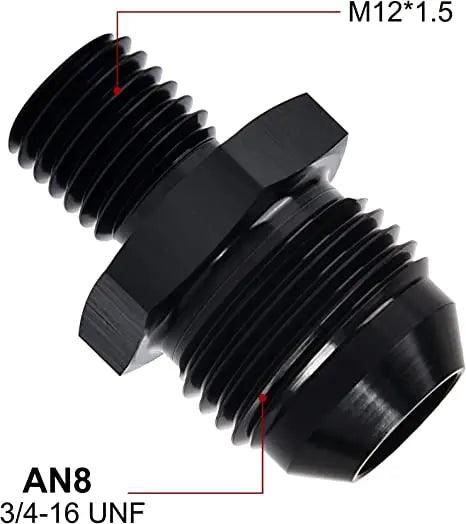

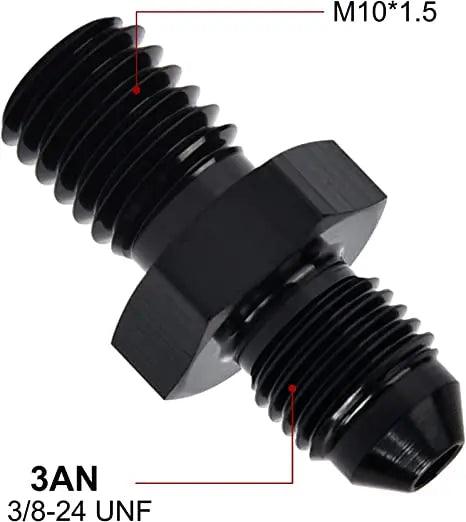

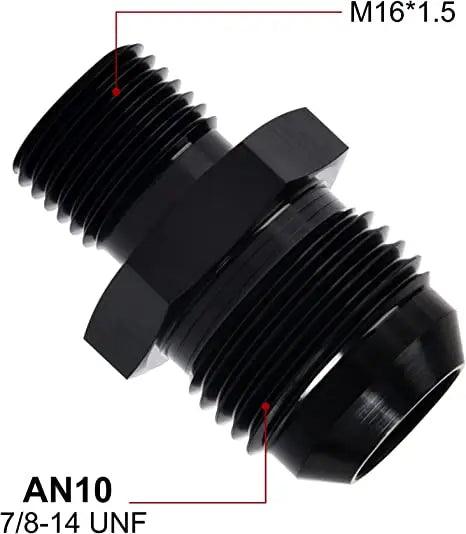

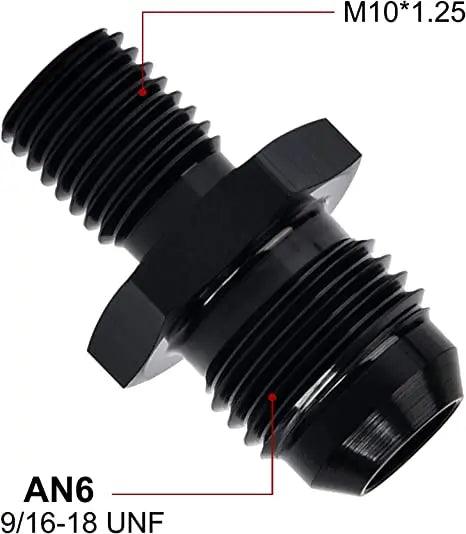

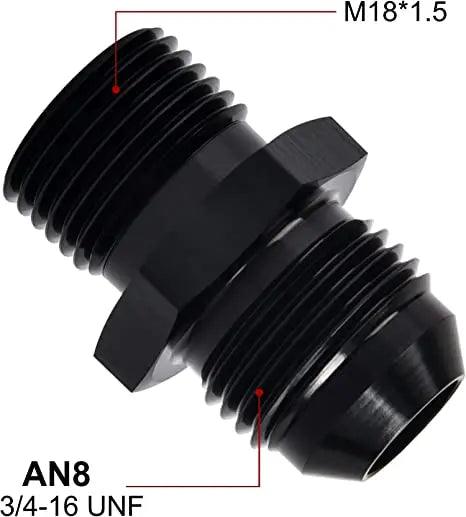

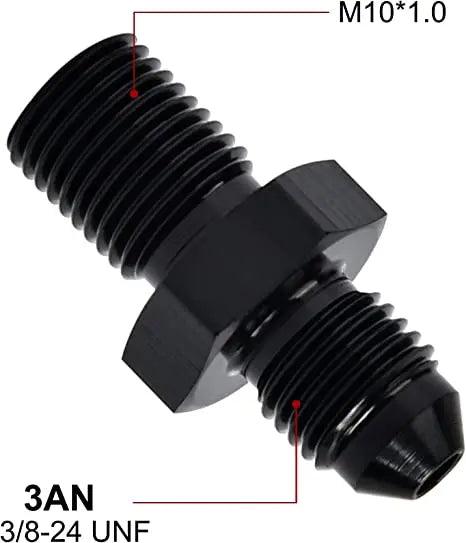

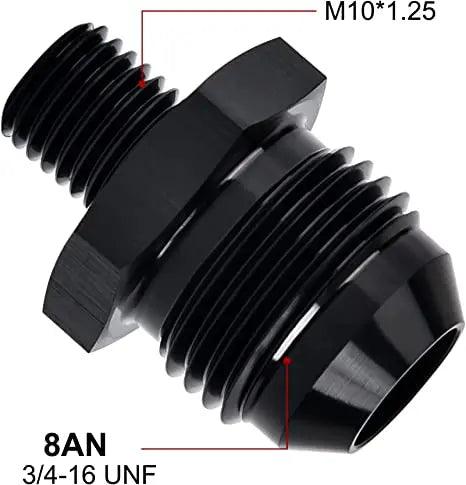

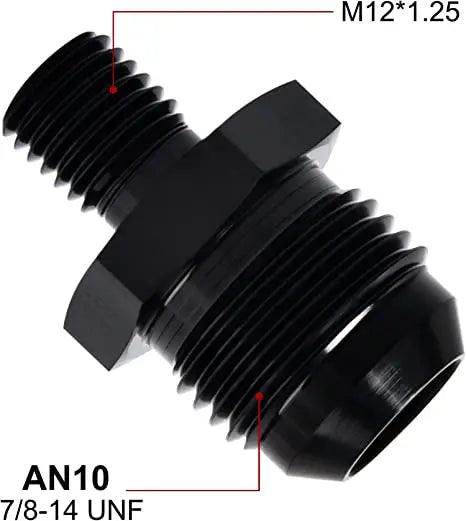

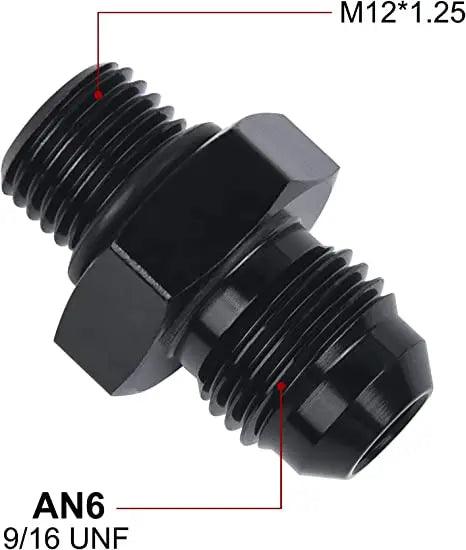

Size: The thread size of 6AN is 9/16-18 UNF ,3AN is 3/8-24 UNF,4AN is 7/16-20 UNF,8AN is 3/4-16 UNF,10AN is 7/8-14 UNF.

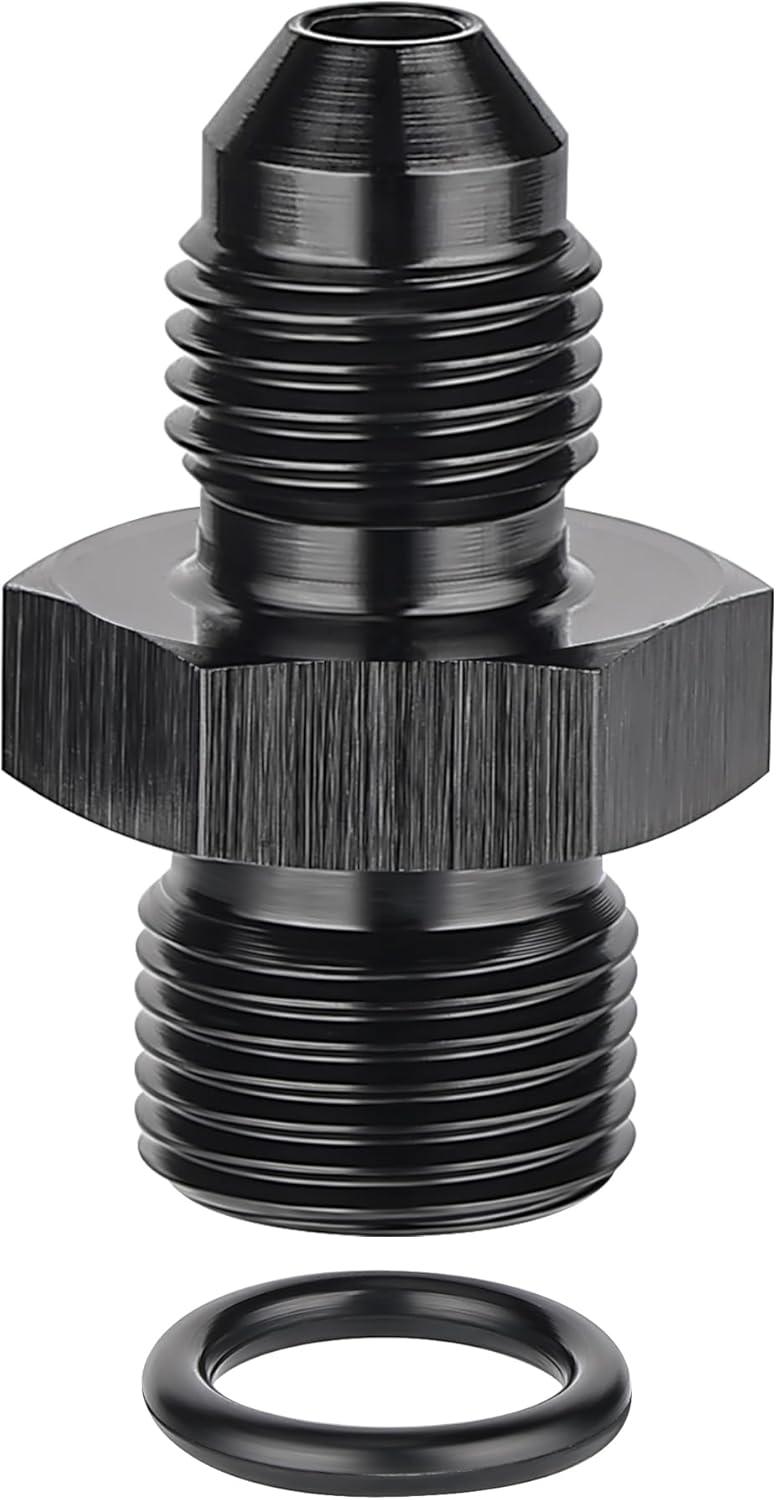

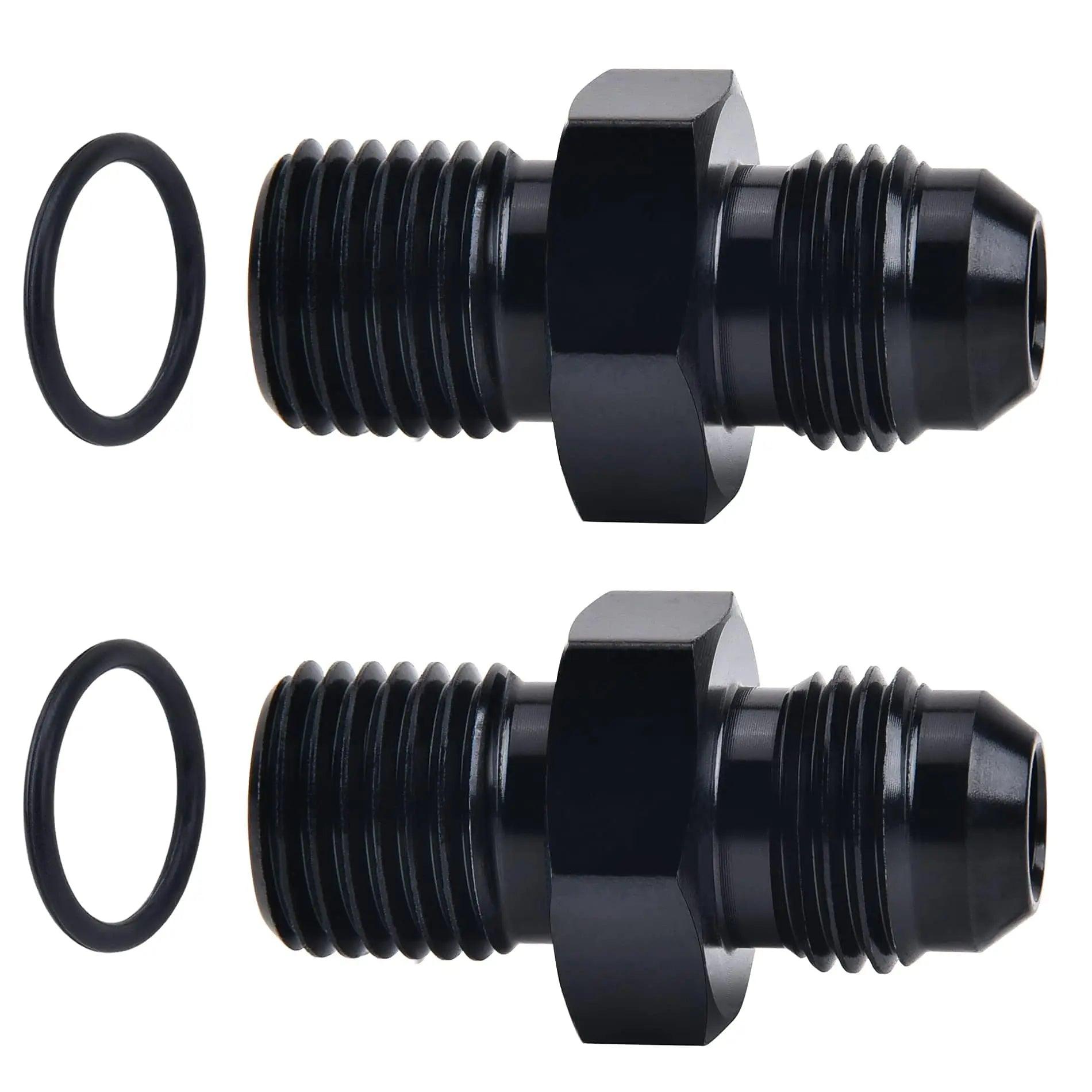

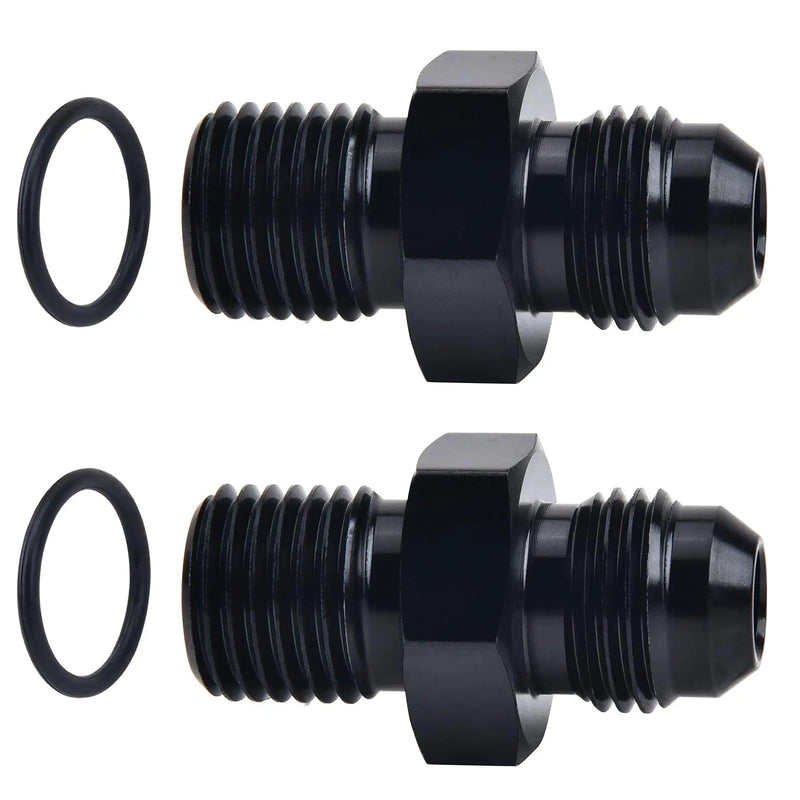

Sealing: The AN side of the flare is sealed by a 37 degree angle and the metric thread side is sealed by an o-ring.

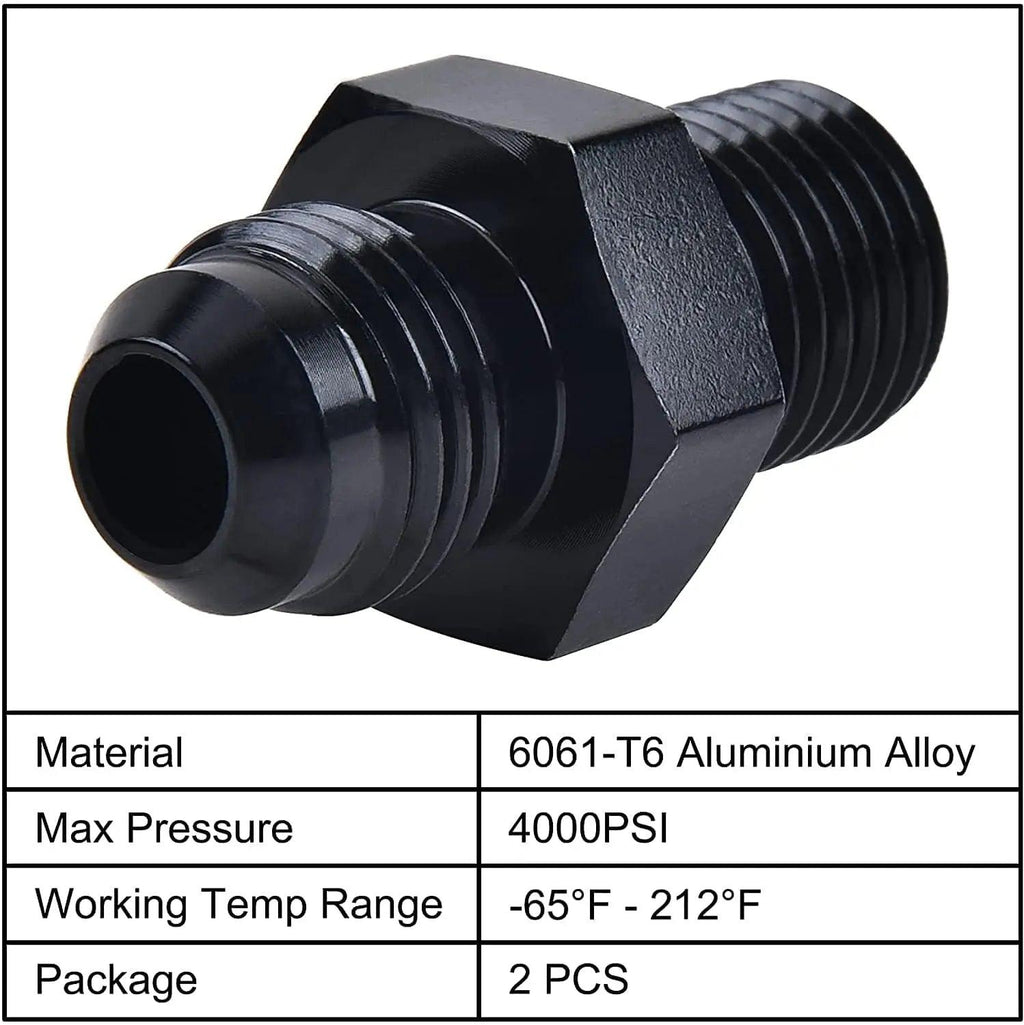

Parameter: Working pressure: 1500PSI; Working temperature: -4°F-212°F (-20°-100°).

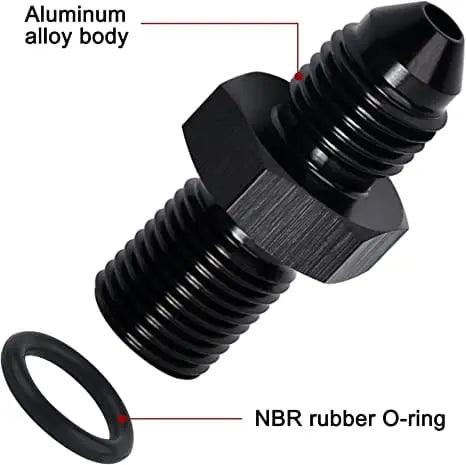

Material: Made of aluminum alloy 6061-T6 body and NBR rubber o-ring.
Application: Widely used in transmission oil coolers, fuel filters, fuel lines,etc.
