Fuel Cell

Fuel Cell Gas Tank‎：

• 5 Gallon: Size: 12" (L) x 12" (W) x 8.26" (H), mounting tab measure diameter 3.46", inlet/outlet fitting: 10an
• 10 Gallon: Size: 16" (L) x 16" (W) x 9.05" (H), mounting tab measure diameter 3.46", inlet/outlet fitting: 10 an
• 15 Gallon: Size: 19" (L) x 17" (W) x 10.03" (H), mounting tab measure diameter 3.46" , inlet/outlet fitting:10an

External Inline Fuel Pump Electric：300LPH
‎Fitting Adapter：6AN to M12*1.5
Fuel Filter Mounting Bracket：50mm&60mm
6AN CPE/PTFE Fuel Line： 20FT
Male Flare Reducer Adapter：AN8 to AN6
Inline Fuel Filter：10&100 Micron
Fuel Pressure Regulator：20-75PSI&75-120PSI

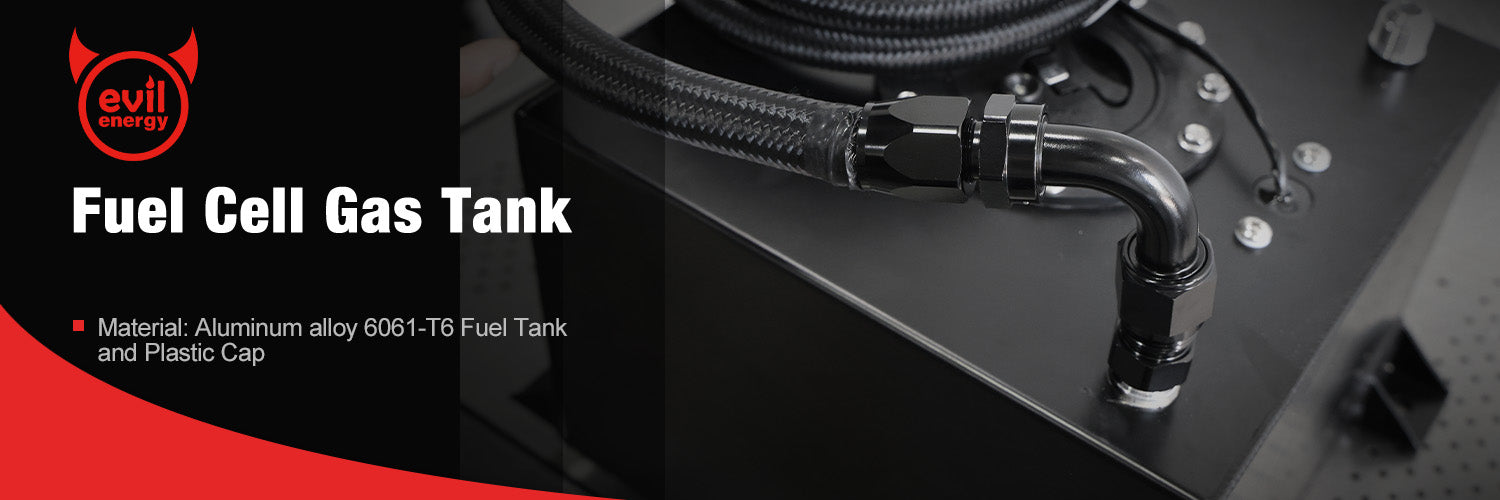

Performance-Boosting Aluminum Fuel Cells

Upgrade your ride with the EVILENERGY Aluminum Fuel Cell! Built from tough 6061-T6 aluminum, it features a 10AN inlet/outlet, a 0-90 ohm level sensor, and anti-slosh foam for smooth fuel delivery and added safety. Perfect for fuel or diesel, this high-performance fuel cell ensures reliability and durability for track or street use. Get yours today and fuel your drive with confidence!

Fuel Cell Gas Tank‎：15 Gallon: Size: 19" (L) x 17" (W) x 10.03" (H), mounting tab measure diameter 3.46" , inlet/outlet fitting:10an

External Inline Fuel Pump Electric：300LPH
‎Fitting Adapter：AN to M12*1.5&AN to M18*1.5
Fuel Filter Mounting Bracket：50mm&60mm
PTFE Fuel Line： 20FT
Male Flare Reducer Adapter：AN to AN Fitting
Inline Fuel Filter：10&100 Micron，30&100Micron
Fuel Pressure Regulator：20-120PSI (6AN) & 30-140PSI (8AN & 10AN)

PTFE Hose End Fitting：Straight&90 Degree

• Bundle with: EVIL ENERGY fuel cell gas tank and 6an adjustable fuel pressure regulator.
• 5 Gallon: Size: 12" (L) x 12" (W) x 8.26" (H), mounting tab measure diameter 3.46", inlet/outlet fitting: 10AN
• 10 Gallon: Size: 16" (L) x 16" (W) x 9.05" (H), mounting tab measure diameter 3.46", inlet/outlet fitting: 10AN
• 15 Gallon: Size: 19" (L) x 17" (W) x 10.03" (H), mounting tab measure diameter 3.46", inlet/outlet fitting: 10AN
• Adjustable fuel pressure: 30psi -70psi.Adjust the set screw on top to get the desired pressure.

EVIL ENERGY's 300LPH External Inline Fuel Pump Kit is designed for universal fitment and offers a high-performance solution for your fuel system needs. Crafted from aluminum, this kit includes a fuel cell with a built-in level sensor and anti-slosh foam for improved safety and efficiency and a Fuel Pump Ki.

Fuel Cell Gas Tank‎: 10 gallon：Size: 16" (L) x 16" (W) x 9.05" (H), mounting tab measure diameter 3.46", inlet/outlet fitting: 10 AN

Fuel Lines: 20FT AN8 CPE black braided hoses：ID : 0.43". OD: 0.64"

5FT 5/32“ Vacuum Hose： ID:4m.OD:10mm

External Inline Fuel Pump Electric：300LPH

Fuel Pressure Regulator：20-120PSI

Inline Fuel Filter：10&100 Micron

Fittings:Swivel Hose End：Straight,45°,90°,180°

Additional Components: Y-Block, AN to ORB adapters, AN to AN Fittings,Bulkhead Fittings and Hose clamps.

Application:Compatible with most modified and race-prepped vehicles.Ideal for LS swaps, turbocharged or supercharged engines, and high-flow fuel requirements.
